1025950045 - 4.5m PROFINET Dragline Cable with M12 D-code, IP67

SKU: SKU: 1025950045 Download PDF

Select a Variant:

1025950045 - 4.5m PROFINET Dragline Cable with M12 D-code, IP67

SET THE QTY:

Now $68.39 Web pricing policy

~~BEFORE $0.00~~ Now $68.39 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

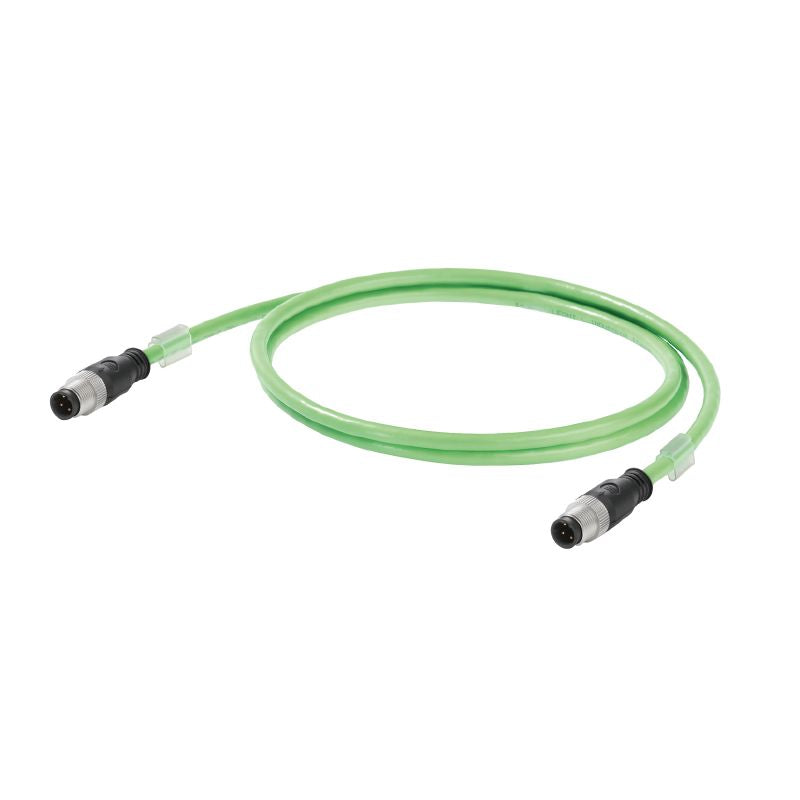

Introducing a robust dragline cable, specifically crafted for PROFINET applications This cable features M12 D-coded connectors that are protected by IP 67 ratings on both ends, ensuring reliable performance in challenging environments Fully compliant with Cat5 standards in accordance with ISO/IEC 11801 and TIA T568-B specifications, it showcases a sturdy PUR outer sheath for enhanced durability With a generous length of 4.

5 meters, this cable is ideal for a variety of professional settings.

Features and Benefits:

•Total length of 4.5 m.

•IP 67 rated connectors.

•Constructed from halogen-free materials.

•Very good abrasion resistance.

•UV-resistant.

Specifications:

Storage temperature	-50 °C...70 °C
Operating temperature	-40 °C...70 °C
Installation temperature	-20 °C...60 °C
Standard, insulating material	DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material	DIN EN 13602 Cu-ETP-A..B
Arrangement of wire cores	Star-quad
Colour sequence or wires - wire pairs	white, yellow, blue, orange
Complete shielding	Aluminium foil
Self-shielding	Shielding braid made from copper wiring
Cross-section	4*AWG 22/7 - 0.32 mm²
Diameter of inner sheathing	3.9 mm
Filler	As central element
Insulation	PE
Insulation cross-section	1.5 mm
Material sheath	PUR
Number of wires	4
Overlap of shielding braid	85 %
Sheath diameter, max.	6.7 mm
Sheath diameter, min.	6.3 mm
Sheathing material thickness	0.9 mm
Shielding	SF/UTP
Shielding braid thickness	0.13 mm
Strands	7
Wire core insulation thickness	0.38 mm
Wire material	Stranded tin-plated copper wire
Capacity at 1 kHz	52 nF/km
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Delay skew	40 ns/100m
Loop resistance	120 Ω/km
Operating voltage (UL rating)	600 V
Resistance differential	3 %
Signal propagation time	5.3 ns/m
Test voltage: wire-wire-shield	2000 V eff, 50 Hz, 1 min
Transfer impedance	20 mΩ/m at 10 MHz
Mechanical properties	{'Bending cycles': '3 Mio', 'Minimum bending radius, once only': '5 x cable diameter', 'Pulling force': '≤ 150 N', 'Resistance to oils': 'in accordance with IEC 60811-2-1', 'Resistance to spread of flame': 'in accordance with IEC 60332-1', 'Silicone-free': 'Yes'}
