1025950040 - 4m Dragline Cable, M12 D-Code, IP67, PUR Material

1025950040 - 4m Dragline Cable, M12 D-Code, IP67, PUR Material

SKU: 1025950040   Download PDF

Select a Variant:
  • 1025950040 - 4m Dragline Cable, M12 D-Code, IP67, PUR Material
Qty:
Now $65.81   Web pricing policy
BEFORE   $0.00 Now $65.81 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

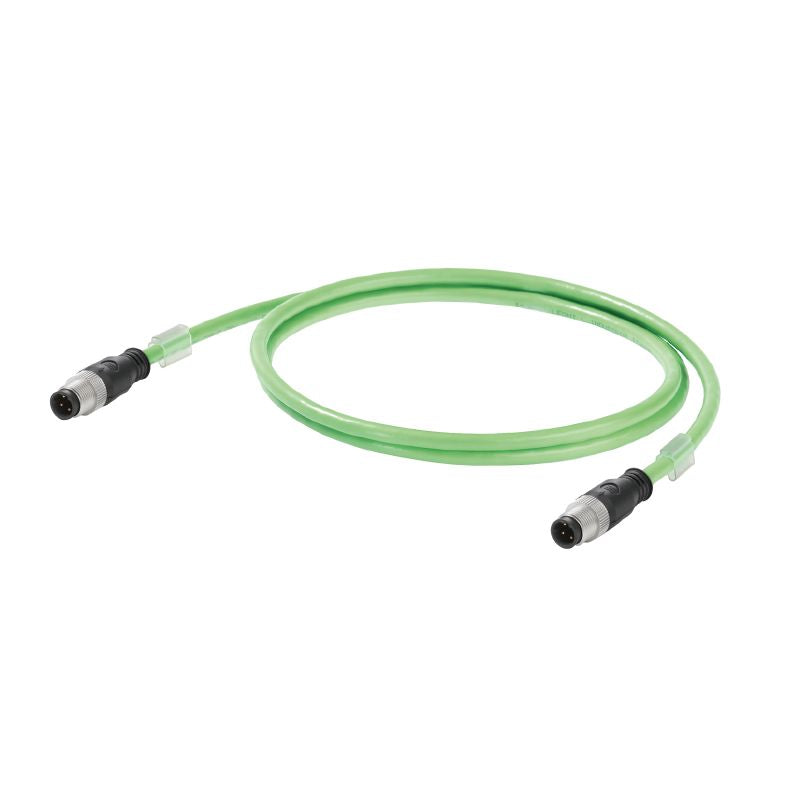

Introducing a versatile dragline cable, equipped with M12 D-code straight pin connectors and compliant with Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards Measuring 4 meters in length, this cable is constructed from durable PUR material and boasts an impressive environmental rating of IP67, making it ideal for diverse applications It has been meticulously tested for durability and reliability, including RoHS compliance certifications, ensuring top-notch performance for your connectivity needs.

Features and Benefits:

    •IP67 rated for waterproofing.

    •Cable is made from halogen-free materials.

    •Suitable for high-tensile applications with a pulling force of ≤ 150 N.

    •UV-resistant and silicone-free.

    •Proven abrasion resistance.

    •Excellent bending cycles up to 3 million.

Specifications:

 Length 4 m
 Net weight 284.92 g
 Storage temperature -50 °C...70 °C
 Operating temperature -40 °C...70 °C
 Installation temperature -20 °C...60 °C
 Insulation PE

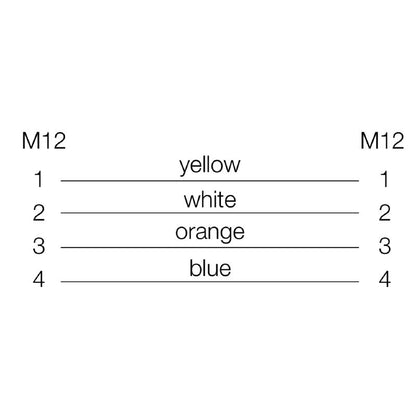

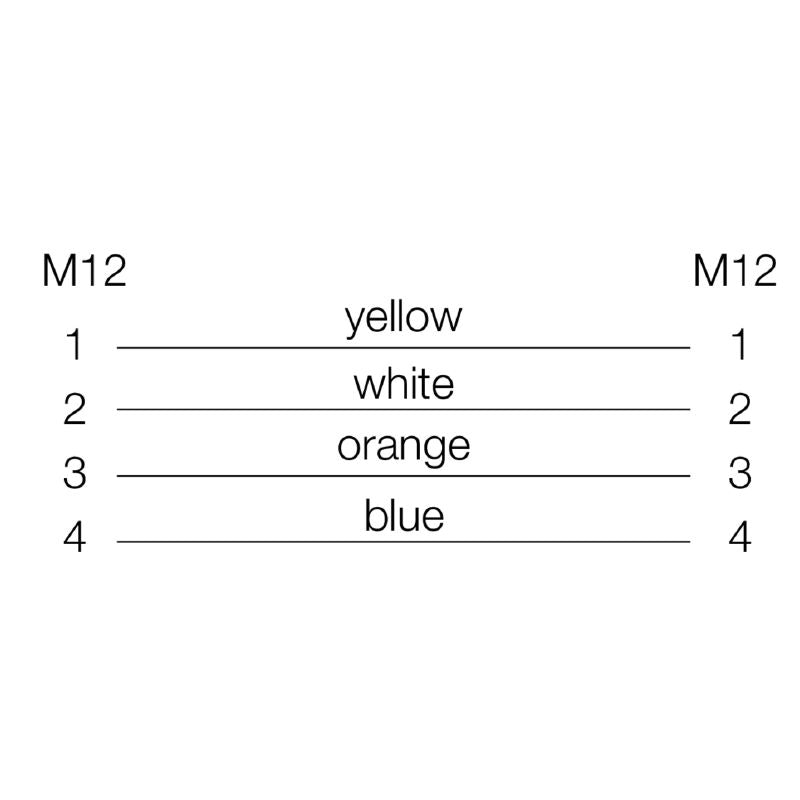

 Number of wires 4
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Delay skew 40 ns/100m
 Loop resistance 120 Ω/km
 Operating voltage (UL rating) 600 V
 Signal propagation time 5.3 ns/m
 Test voltage 2000 V eff, 50 Hz, 1 min
 Cross-section 4*AWG 22/7 - 0.32 mm²
 Diameter of inner sheathing 3.9 mm
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Sheathing material thickness 0.9 mm
 Resistance to oils in accordance with IEC 60811-2-1
 Resistance to spread of flame in accordance with IEC 60332-1
 Bending cycles 3 Mio
 Min. bending radius, once only 5 x cable diameter
 Min. bending radius, repetitive 7.5 x cable diameter
 Standard, insulating material DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
 Standard, shielding material DIN EN 13602 Cu-ETP-A..B
 Wire material Stranded tin-plated copper wire
