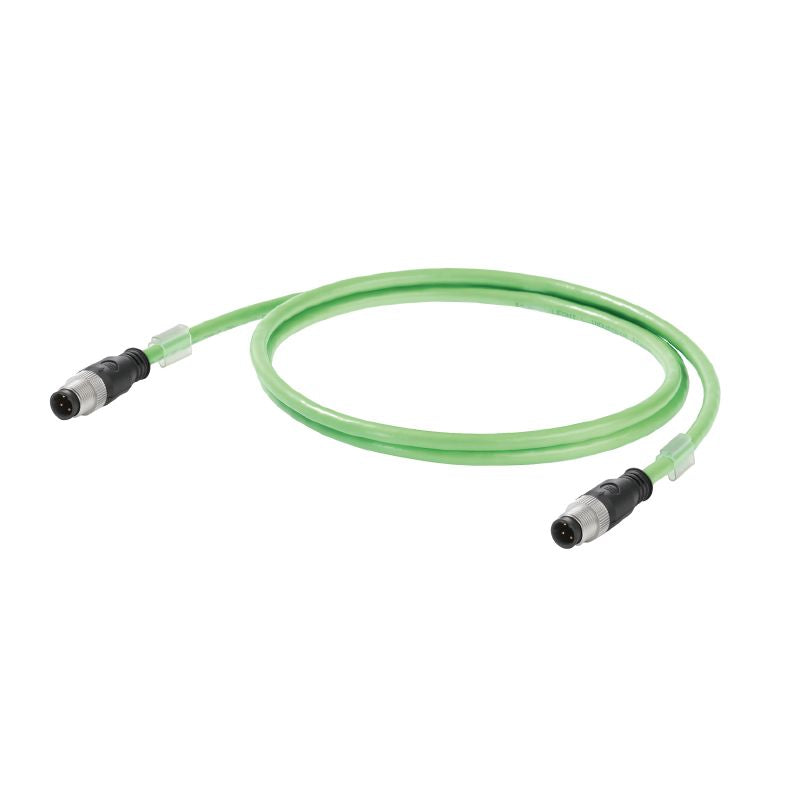

1025950010 - 1m PROFINET Dragline Cable with IP67 M12 D-Code Connectors

SKU: SKU: 1025950010 Download PDF

Select a Variant:

1025950010 - 1m PROFINET Dragline Cable with IP67 M12 D-Code Connectors

SET THE QTY:

Now $50.37 Web pricing policy

~~BEFORE $0.00~~ Now $50.37 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the Dragline cable, an optimal solution for your PROFINET needs This durable cable features M12 D-code connectors with straight pins and comes with an impressive IP 67 rating for protection against dust and water Complying with Category 5 (ISO/IEC 11801) or Category 5e (TIA T568-B) standards, it promises reliable performance With a robust PUR insulation and a length of 1 meter, this cable is constructed for robust functionality in various applications.

Features and Benefits:

•Compliant with RoHS and has an exemption status.

•Halogen-free per IEC 60754-2.

•UV-resistant and silicone-free.

•Very good abrasion resistance.

•Suitable for a wide temperature range.

•Excellent resistance to oils and flame spread.

Specifications:

Length	1 m
Laying Diameter	3.9 mm
Operating Temperature	-40 °C to 70 °C
Storage Temperature	-50 °C to 70 °C
Sheath Diameter (max)	6.7 mm
Sheath Diameter (min)	6.3 mm
Insulation Material	PE
Wire Material	Stranded tin-plated copper wire
Number of Wires	4
Characteristics	{'Capacity at 1 kHz': '52 nF/km', 'Characteristic Impedance': '100 ± 15 Ω at 1–100 MHz', 'Delay Skew': '40 ns/100m', 'Loop Resistance': '120 Ω/km', 'Operating Voltage': '600 V', 'Signal Propagation Time': '5.3 ns/m'}
Cable Structure	{'Arrangement of Wire Cores': 'Star-quad', 'Insulation Cross-section': '1.5 mm', 'Complete Shielding': 'Aluminium foil'}
Mechanical Properties	{'Bending Cycles': '3 Mio', 'Min. Bending Radius (once only)': '5 x cable diameter', 'Min. Bending Radius (repetitive)': '7.5 x cable diameter', 'Pulling Force': '≤ 150 N'}
