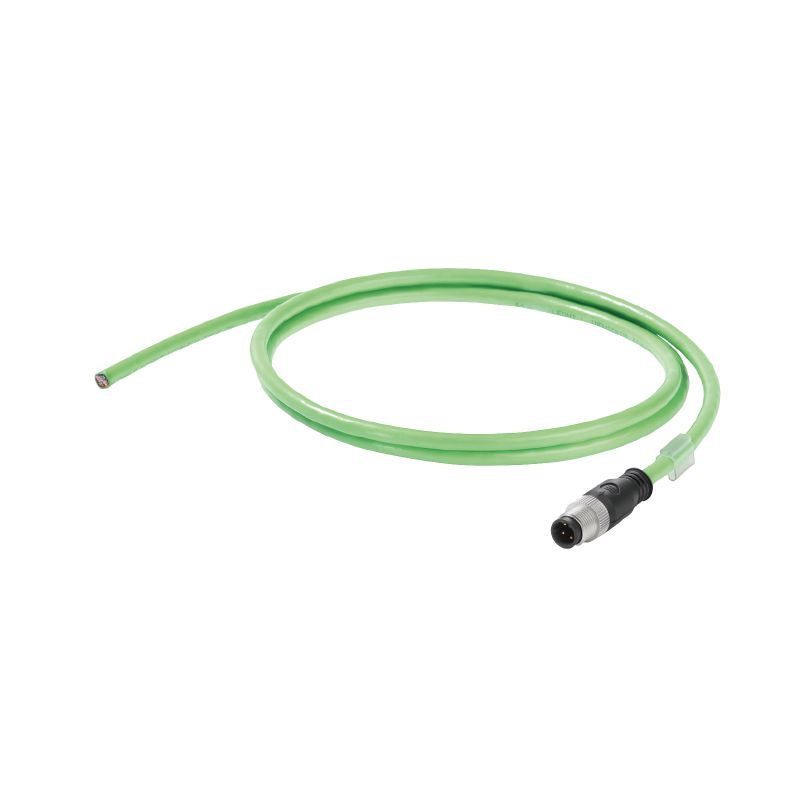

1025940030 - 3m PROFINET Dragline Cable, M12 D-code, IP67 Rated

SKU: SKU: 1025940030 Download PDF

Select a Variant:

1025940030 - 3m PROFINET Dragline Cable, M12 D-code, IP67 Rated

SET THE QTY:

Now $38.09 Web pricing policy

~~BEFORE $0.00~~ Now $38.09 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Enhance your connectivity with this 3-meter dragline cable, built to adhere to PROFINET standards It is equipped with a straight pin M12 D-coded connector and boasts an IP 67 rating for excellent protection against environmental factors This cable conforms to Cat5 specifications as outlined in ISO/IEC 11801 and meets Cat5e criteria per TIA T568-B Crafted from durable PUR material, it ensures reliability and longevity in your applications.

Features and Benefits:

•Compliant with RoHS, showing exemption.

•Halogen-free according to IEC 60754-2.

•UV-resistant.

•Silicone-free.

•Very good abrasion resistance.

•Excellent resistance to oils.

Specifications:

Storage temperature	-50 °C...70 °C
Operating temperature	-40 °C...70 °C
Installation temperature	-20 °C...60 °C
Capacity at 1 kHz	52 nF/km
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Delay skew	40 ns/100m
Loop resistance	120 Ω/km
Operating voltage (UL rating)	600 V
Mechanical features	{'Bending cycles': '3 Mio', 'Min. bending radius, once only': '5 x cable diameter', 'Min. bending radius, repetitive': '7.5 x cable diameter', 'Pulling force': '≤ 150 N'}
Sheath diameter, max.	6.7 mm
Sheath diameter, min.	6.3 mm
Wire material	Stranded tin-plated copper wire
Wire core insulation thickness	0.38 mm
Filler	As central element
Insulation	PE
