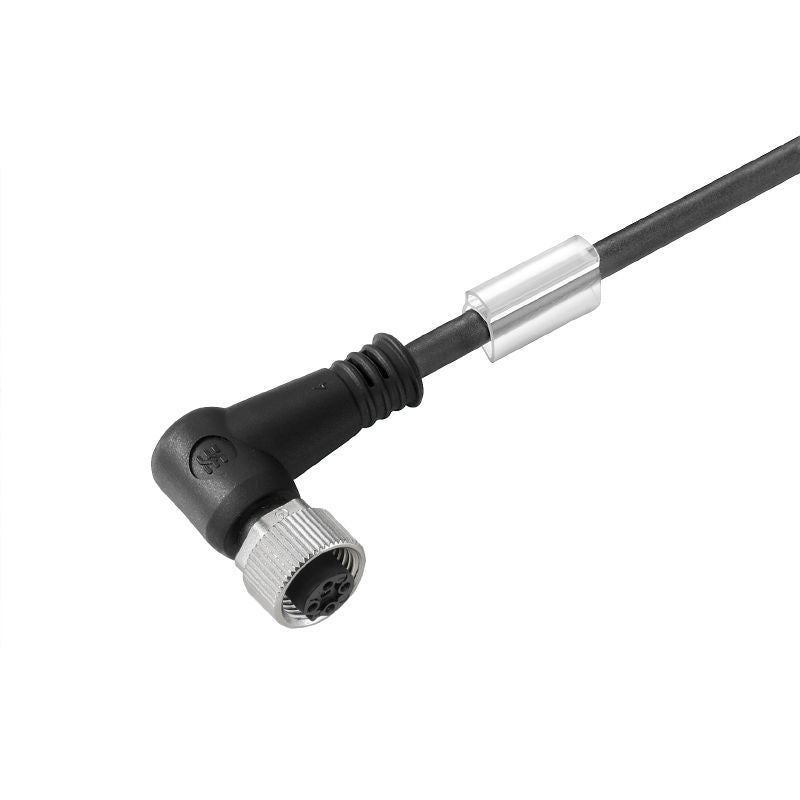

1021690500 - 5m PUR Sensor/Actuator Cable, 5 Poles, Angled Socket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIL-M12BW-5-50T sensor and actuator cable, designed for versatile connectivity This 5-meter cable features an angled socket on one end while the opposite end is connector-free, offering flexibility for various applications With five poles, the cable is robust and reliable, crafted from durable PUR material Additionally, it meets RoHS compliance requirements, ensuring it aligns with environmental standards.

Note that it is not shielded and does not include an LED indicator Perfect for your sensor and actuator needs!.

Features and Benefits:

•Complies with RoHS exemption 6c.

•Suitable for dynamic applications with a bending radius of 7.5 times the cable diameter in moving conditions and 4 times at stationary points.

•Resistant to welding beads.

•Compatible with cable carriers.

•IP67 protection degree when screwed in.

•Included gold-plated contact surface.

•Temperature resistant from -30 to 105 degrees Celsius in motion and -40 to 105 degrees Celsius when stationary.

Specifications:
