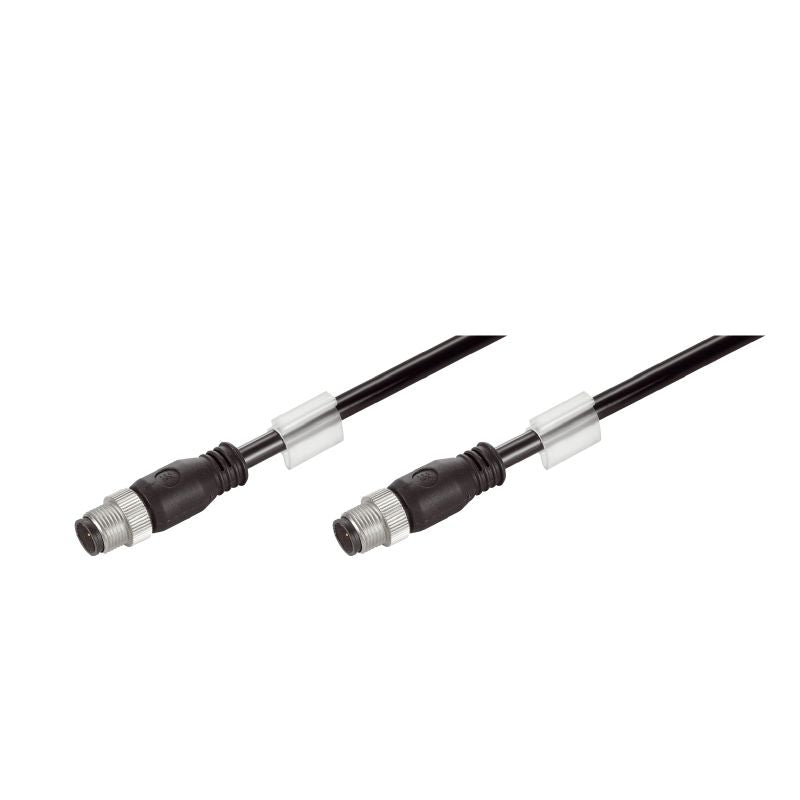

1010850003 - 0.3m IP67 M12 D-Code System Cable, Durable Radox Material

1010850003 - 0.3m IP67 M12 D-Code System Cable, Durable Radox Material

SKU: SKU: 1010850003 Download PDF

Variant:
  • 1010850003 - 0.3m IP67 M12 D-Code System Cable, Durable Radox Material
Regular price Now $48.64
Regular price BEFORE   $0.00 Sale price Now $48.64
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your connectivity with this reliable M12 D-coded system cable Measuring 03 m in length, it is crafted with durability in mind, featuring Radox GKW S material This cable is IP 67 rated, offering robust protection against dust and water, ideal for challenging environments It meets Cat5 and Cat5e standards, ensuring top-tier performance With an operating temperature range of -40 °C to 90 °C and the same range for storage, it’s built to withstand extreme conditions.

Additionally, its design reduces the risk of issues related to corrosive fumes, halogen emissions, and smoke propagation, making it a safe choice for various applications.

Features and Benefits:

    •IP 67 rated for dust and water resistance.

    •Constructed with Radox GKW S material for superior durability.

    •Wide temperature range for various environmental conditions.

    •Cat.5 and Cat.5e compliance ensuring high data transmission.

    •Halogen-free and impervious to smoke.

Specifications:

 Length 0.3 m
 Length (inches) 11.811 inch
 Net weight 53 g
 Storage temperature -40 °C...90 °C
 Operating temperature -40 °C...90 °C
 Installation temperature -25 °C...90 °C
 Corrosiveness of fumes to IEC 60754-2
 Sheath diameter, max. 7.55 mm
 Sheath diameter, min. 6.95 mm
 Cable structure 2*2*AWG 22/7 - 2*2*0.36 mm²
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Plug left M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded
 Plug right M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded
