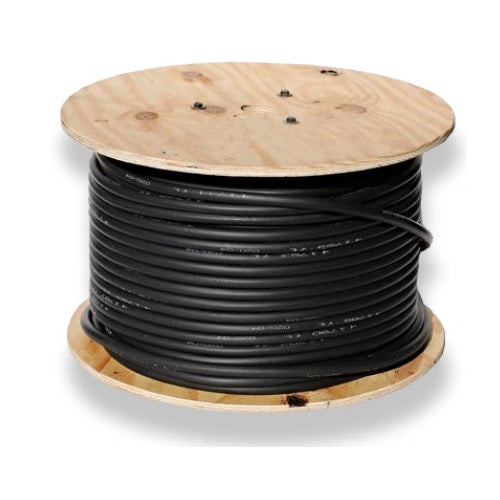

1/0 AWG Toughflex Welding Cable 600V

1/0 AWG Toughflex Welding Cable 600V

Applications:

• Secondary voltage resistance welding cable leads
• Temporary power uses
• National Electrical Code article 630 electric welders
• Power supply applications not exceeding 600 volts AC
• Copper meets SAE standards.

Conductors:

Highly flexible stranded No. 30 bare copper conductor insulated with a high grade EPDM. A paper separator is utilized to enhance stripability. Maximum conductor operating temperature is 105°C in circuits not exceeding 600 Volts. Minimum temperature rating is -
50°C. Class K stranding.

Features:

• Special stranding and packaging are available upon request
• Oil Resistant
• Customizable PermaPrint indent print that lasts a lifetime and inkjet print are available on all colors & sizes
• Halogen Free, all colors except green

• Cable meets the UL VW-1 flame test outlined in UL2556

• SAE J1127 Stranding.

Highly Flexible:

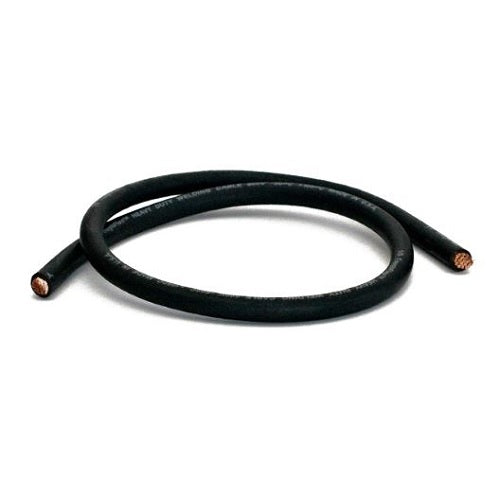

Annealed 30 (0.010) gauge bare copper conductor, insulated with an EPDM jacket and paper separator

Durable Jacket:

Resists cuts, tears, abrasion, grease, oil, water, and flame

PermaPrint Indent Printing:

Customizable print that lasts a lifetime; available on all colors & sizes

Operating Temperatures:

• Range from -50°C to + 105°C (-58°F to + 221°F)
• National Electrical Code article 630 electric welders

Colors:

Black, Blue, Green, Red, and Yellow jacket colors

Rated to 600 Volts:

• Cable meets the UL VW-1 flame test outlined in UL1581
• Sequentially marked

• Class K stranding

• SAE J1127 Stranding

• Available pre-assembled with connectors.

Specifications:

• Size: 1/0 AWG
• Stranding (Number of strands): 12/65/.010 (780)
• Insulation Inches: 0.080
• Nominal O.D. Inches: 0.533
• Shipping weight lbs/ft : 378
