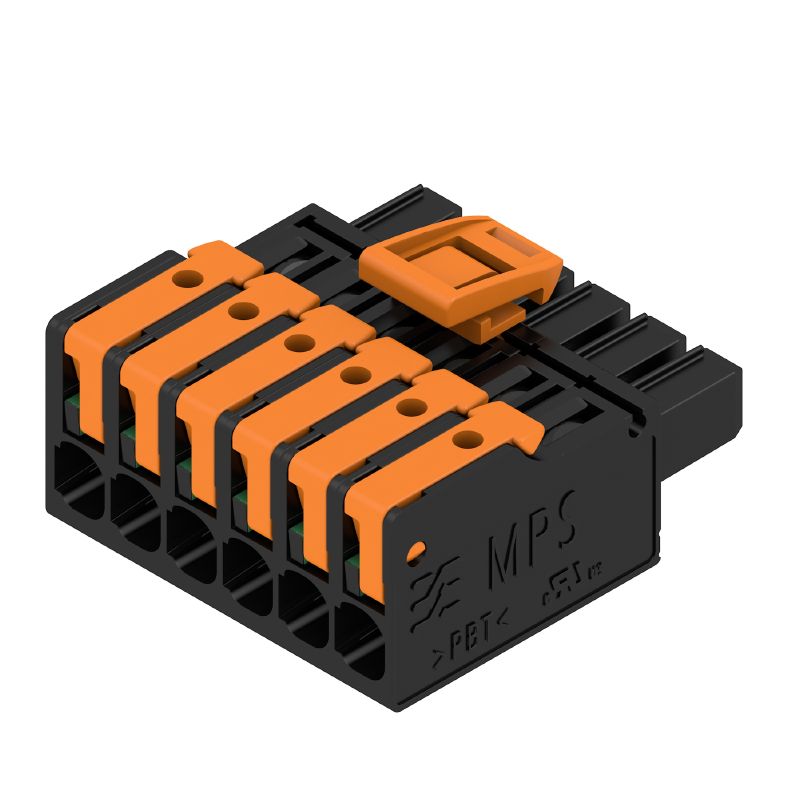

8000078395 - 5mm Female Plug Connector, 6 Poles, RoHS Compliant (Pack of 60)
8000078395 - 5mm Female Plug Connector, 6 Poles, RoHS Compliant (Pack of 60)
SKU: SKU: 8000078395 Download PDF
- 8000078395 - 5mm Female Plug Connector, 6 Poles, RoHS Compliant (Pack of 60)
- 8000078395 - 5mm Female Plug Connector, 6 Poles, RoHS Compliant (Pack of 60)
Couldn't load pickup availability
Description:
Enhance your electrical connections with this female plug-in connector, featuring a 500 mm pitch and accommodating 6 poles for 180° connections Compliant with RoHS regulations, it is certified for UL and IEC standards, supporting voltages of up to 400 V and currents reaching 268 A This reliable connector measures 34 mm in depth, 175 mm in height, and 308 mm in width, with a weight of 13424 g Each unit is conveniently packaged in a box for easy storage and transport.
Features and Benefits:
•SNAP IN wire connection method.
•Touch-safe protection according to DIN VDE 57 106.
•Conforms to environmental standards, compliant with RoHS without exemption.
Specifications:
| IEC Voltage Rating | 400 V |
| IEC Current Rating | 26.8 A |
| UL Voltage Rating | 300 V |
| UL Current Rating | 18.5 A |
| Pitch in mm | 5 mm |
| Number of poles | 6 |

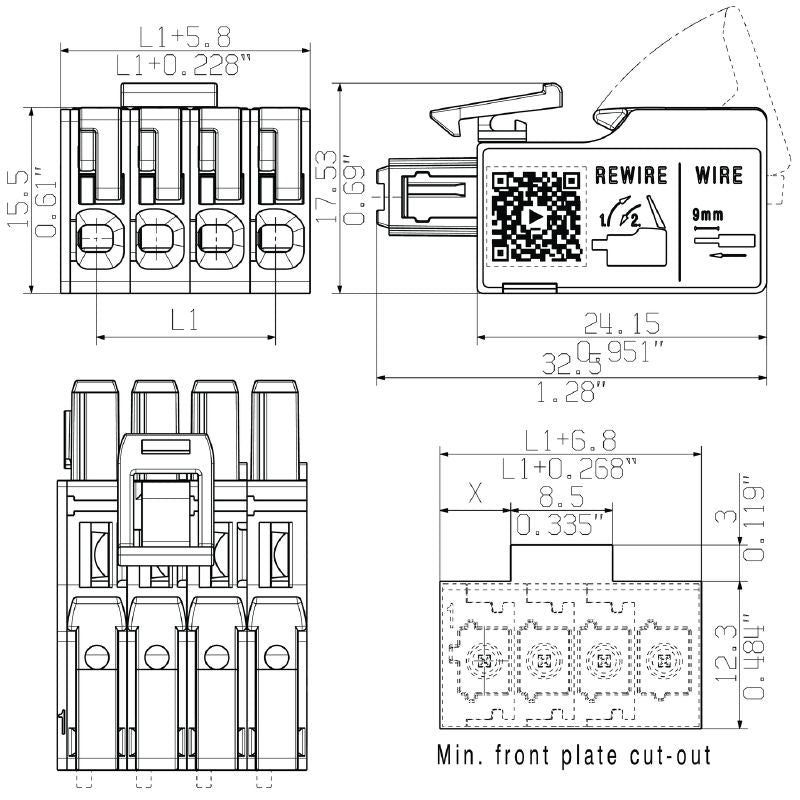

| Depth | 34 mm |
| Height | 17.5 mm |
| Width | 30.8 mm |
| Ambient Temperature | -50 °C to 125 °C |
| Protection degree | IP20 |
