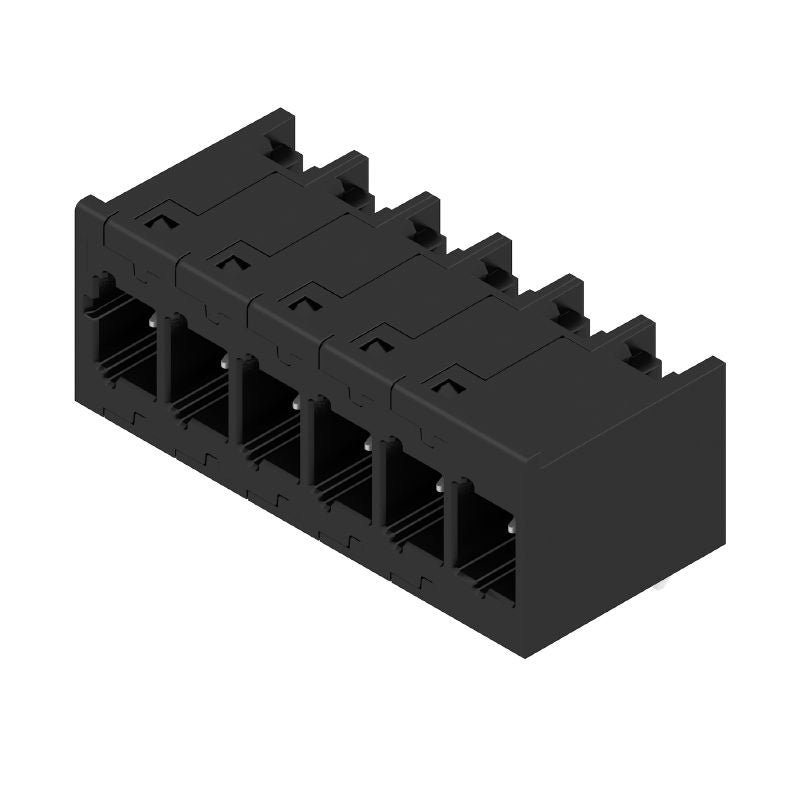

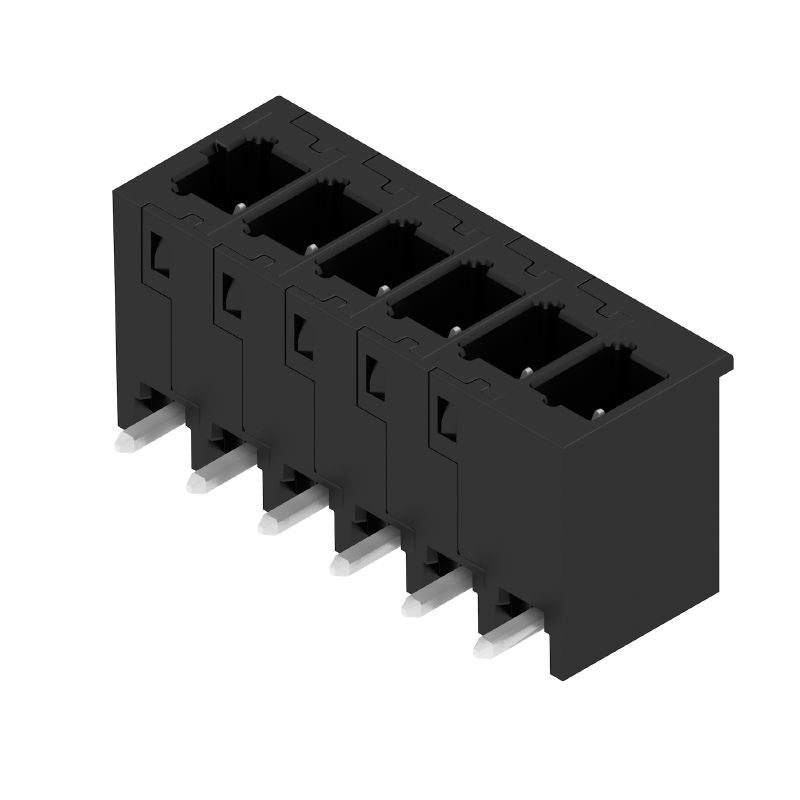

2741450000 - 6-Pole 5.00mm THT Male Header Connector, 90° Angle (Pack of 17)
2741450000 - 6-Pole 5.00mm THT Male Header Connector, 90° Angle (Pack of 17)
SKU: SKU: 2741450000 Download PDF
- 2741450000 - 6-Pole 5.00mm THT Male Header Connector, 90° Angle (Pack of 17)
- 2741450000 - 6-Pole 5.00mm THT Male Header Connector, 90° Angle (Pack of 17)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our male header connector, an essential component designed for PCB plug-in applications This connector is engineered for THT/THR soldering with a 500 mm pitch and includes 6 poles positioned at a convenient 90° angle It meets standard IEC and UL specifications, making it versatile for various uses Each package includes 17 connectors, neatly organized in a tube for easy access This connector is suitable for board connections, ensuring optimal thermal and electrical performance that adheres to necessary industry standards.
Features and Benefits:
•Meets RoHS compliance standards.
•Touch-safe design above the PCB.
•Insulating material is PA 9T.
•Plugging cycles rated for at least 25.
•Volume resistance of ≤5 mΩ.
•Contact material consists of Cu-alloy.
•Low weight of 4.837 g.

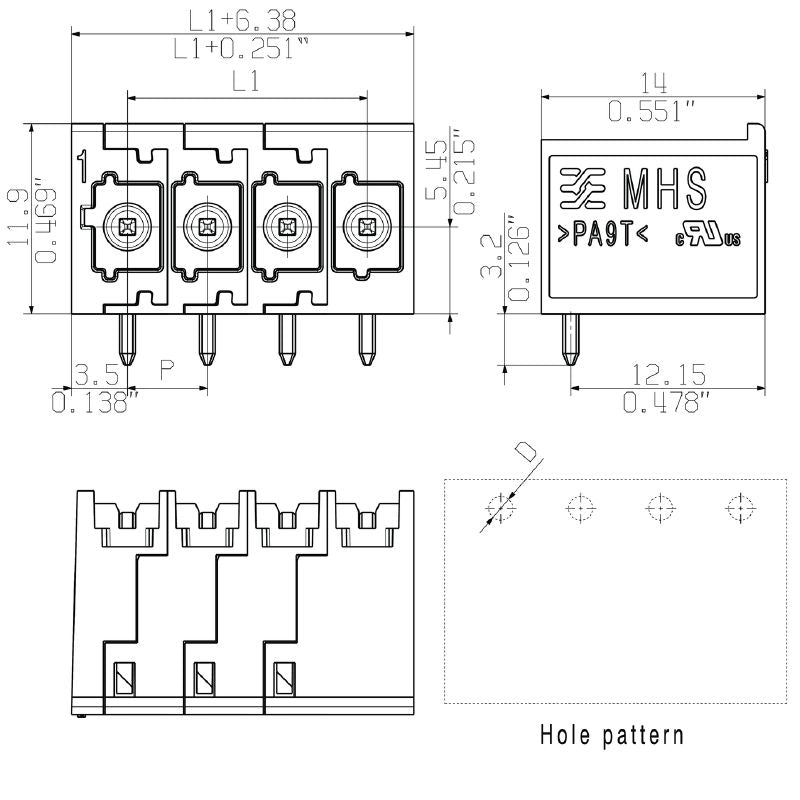

Specifications:
| Pitch in mm (P) | 5.00 mm |
| Number of poles | 6 |
| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 31.38 mm |
| Ambient temperature | -50 °C…125 °C |
| Rated current (Min. at 20°C) | 26.8 A |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Protection degree | IP20 |
| Storage temperature, min. | -25 °C |
| Operating temperature, max. | 100 °C |
| Clearance, min. | 4 mm |
| Creepage distance, min. | 5.4 mm |
| Rated impulse voltage | 4 kV |
