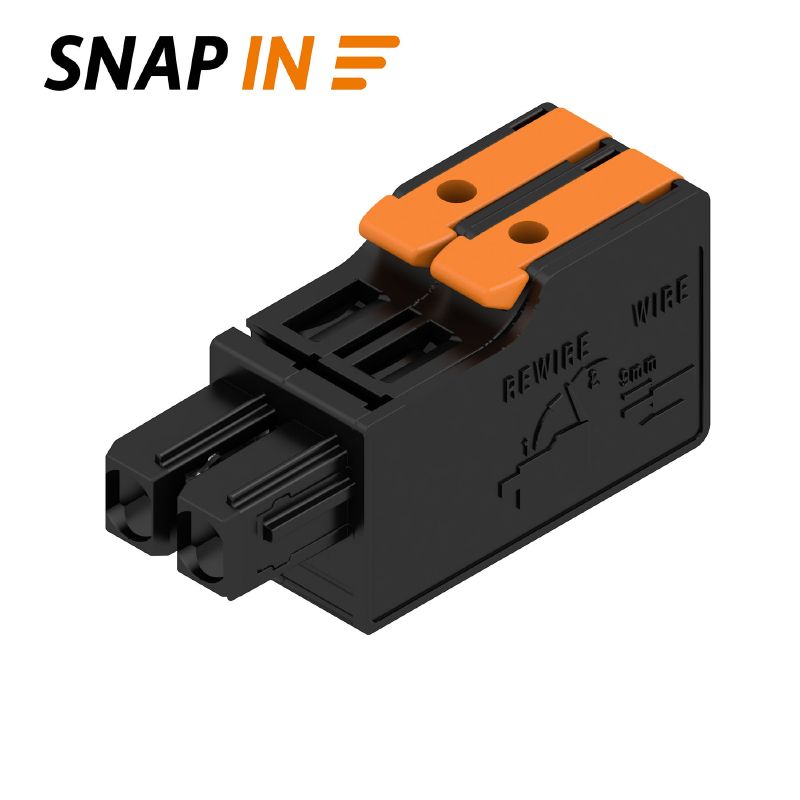

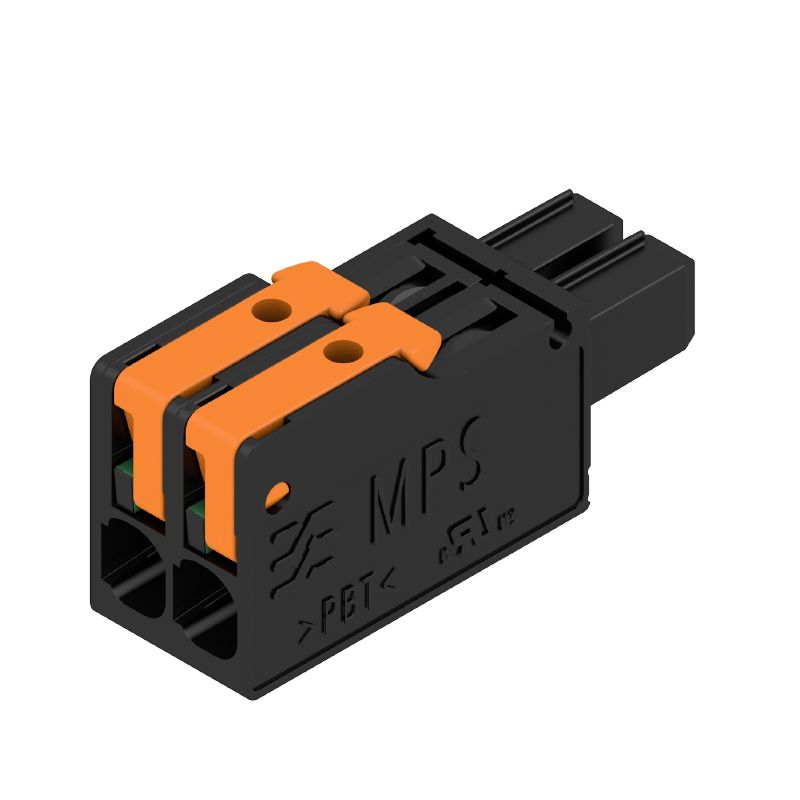

2741560000 - 5mm Pitch PCB Connector, 2 Poles, UL Certified (Pack of 168)

2741560000 - 5mm Pitch PCB Connector, 2 Poles, UL Certified (Pack of 168)

SKU: SKU: 2741560000   Download PDF

Select a Variant:
  • 2741560000 - 5mm Pitch PCB Connector, 2 Poles, UL Certified (Pack of 168)
Qty:
Regular price Now $253.76   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $253.76 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Elevate your connectivity with this reliable PCB plug-in connector, designed with a female plug configuration It boasts a 500 mm pitch and features 2 poles arranged at a precise 180° angle Adhering to ROHS standards, this connector is also UL certified (Certificate No E60693), ensuring quality and safety It can handle voltages up to 400 V and currents of 268 A following IEC guidelines, and supports up to 300 V and 18.

5 A under UL standards Each connector is neatly packaged in a box, weighing just 551 g, making it a practical choice for your electronic assembly needs.

Features and Benefits:

    •Compliant with ROHS without exemptions.

    •Touch-safe protection according to DIN VDE 57 106.

    •Safe from finger touch.

    •IP 20 protection degree.

    •Plugging cycles rated at 25.

Specifications:

 Depth 34 mm
 Height 15.5 mm
 Width 10.8 mm
 Ambient temperature -50 °C…125 °C
 Insulating material PBT GF
 Colour black
 Operating temperature, min. -50 °C
 Operating temperature, max. 100 °C
 Rated current, min. number of poles (Tu=20°C) 26.8 A
 Rated voltage (Use group B / UL 1059) 300 V
 Wire cross-section, AWG, min. AWG 20
 Wire cross-section, AWG, max. AWG 12
 Stripping length 9 mm
 Number of poles 2
