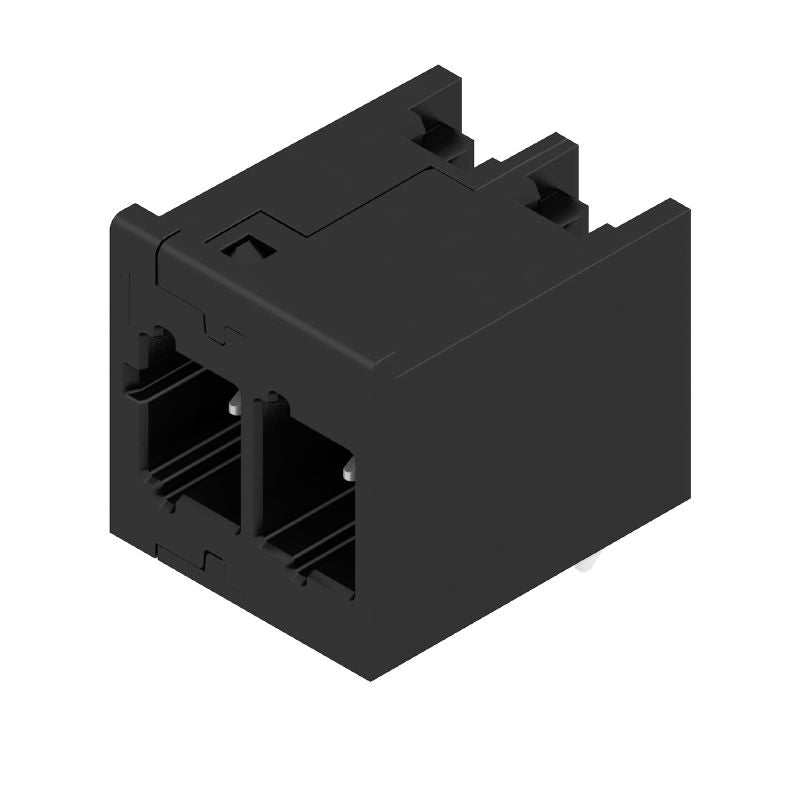

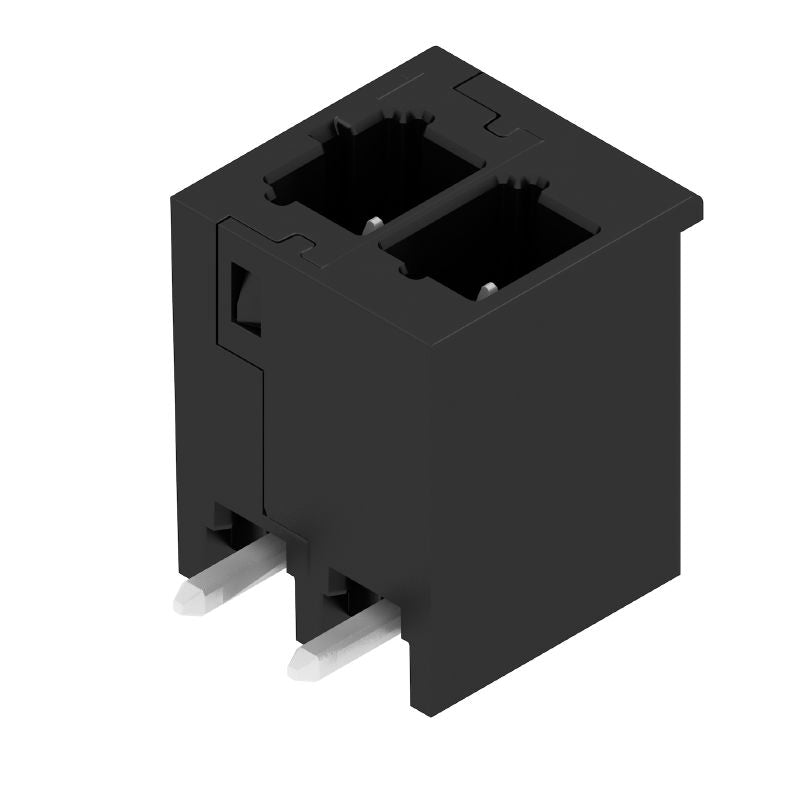

2741400000 - 5mm Male PCB Header Connector, 2 Poles, 90° Angle (Pack of 48)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the MHS 5/02 H T3 B T male header PCB plug-in connector, expertly engineered for THT/THR solder connections With a 5 mm pitch, this connector comprises two poles and features a 90° outgoing elbow for versatile installation Designed to meet IEC standards, it can handle voltages up to 400 V and currents up to 268 A, while also being UL compliant for applications up to 300 V and 185 A Encased in durable PA 9T insulating material, this connector is built to perform reliably across a wide temperature range from -50°C to 125°C.

Each connector is conveniently packaged in tubes, making it easy to store and use.

Features and Benefits:

•Touch-safe protection above the printed circuit board.

•Plugging cycles of at least 25.

•Volume resistance of less than or equal to 5 mΩ.

•Insulating material is moisture level 1.

•UL 94 flammability rating of V-0.

Specifications:
