2741730000 - 5mm Pitch Female PCB Connector, 8 Poles, 400V Rated (Pack of 42)
2741730000 - 5mm Pitch Female PCB Connector, 8 Poles, 400V Rated (Pack of 42)
SKU: SKU: 2741730000 Download PDF
- 2741730000 - 5mm Pitch Female PCB Connector, 8 Poles, 400V Rated (Pack of 42)
- 2741730000 - 5mm Pitch Female PCB Connector, 8 Poles, 400V Rated (Pack of 42)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

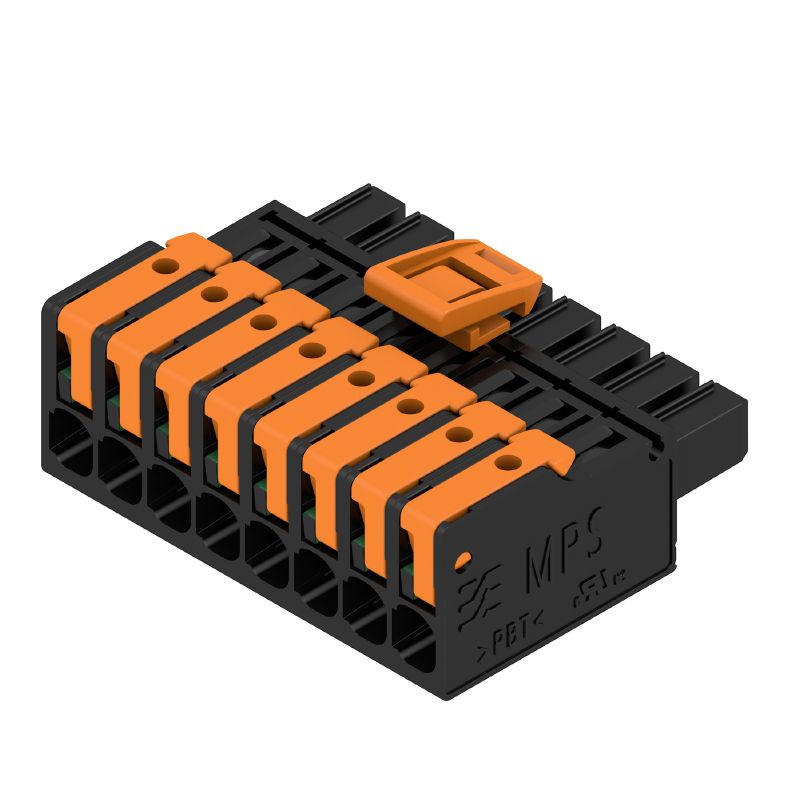

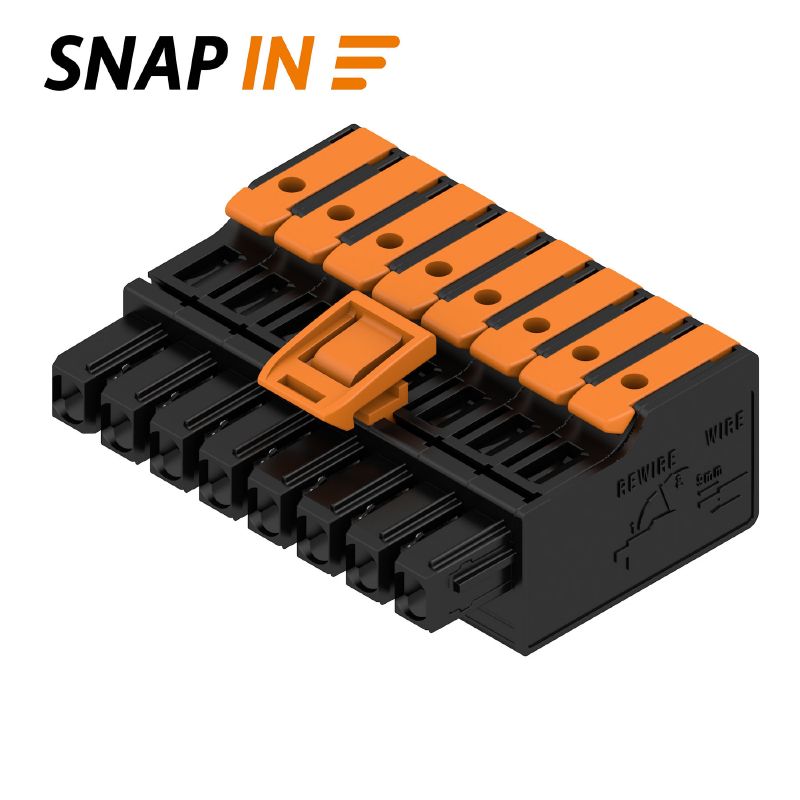

Introducing the MPS 5/08 S F4 TN B B female plug PCB connector, expertly engineered with a 500 mm pitch and accommodating 8 poles in a 180° arrangement This connector adheres to IEC specifications, supporting voltages of up to 400 V and currents of 268 A, while accepting wire sizes between 05 and 4 mm² Additionally, it meets UL standards for 300 V and 185 A with compatible wire sizes ranging from AWG 20 to AWG 12.
Each unit is securely packaged in a box and has a lightweight design, weighing only 17774 g.
Features and Benefits:
•Insulating material is PBT GF.
•Touch-safe with protection according to DIN VDE standards.
•Plugging cycle endurance of 25.

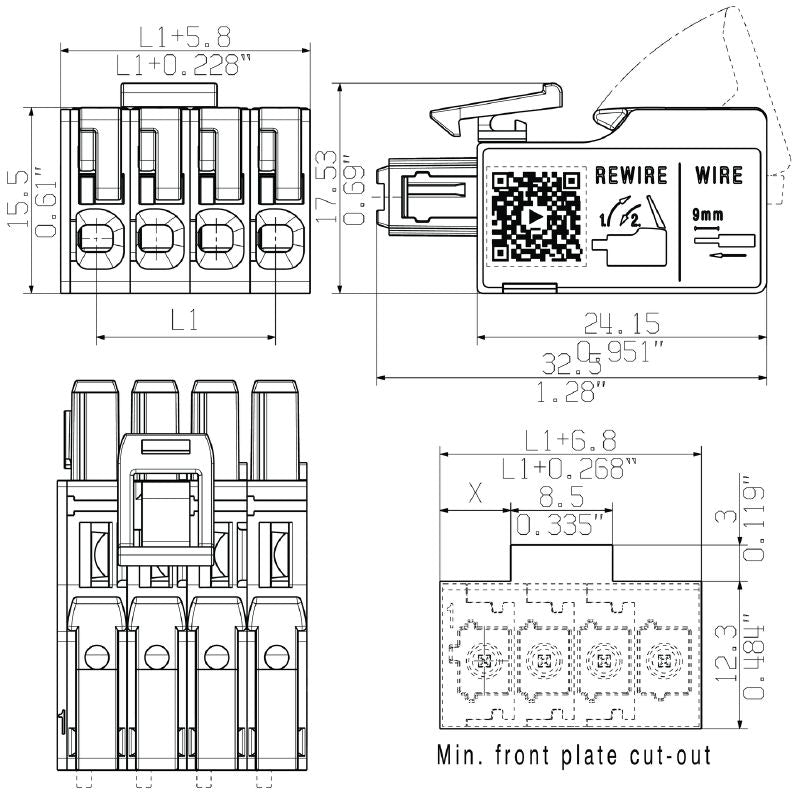

Specifications:
| Depth | 34 mm |
| Height | 17.5 mm |
| Width | 40.8 mm |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 125 °C |
| Volume resistance | ≤5 mΩ |
| Pitch in mm (P) | 5 mm |
| Conductor outlet direction | 180° |
| Number of poles | 8 |
| Stripping length | 9 mm |
| Protection degree | IP20 |
| Rated voltage | 400 V |
| Rated current (min. number of poles) | 26.8 A |
| Rated current (max. number of poles) | 19.7 A |
| Ambient temperature | -50 °C…125 °C |
| Net weight | 17.774 g |
