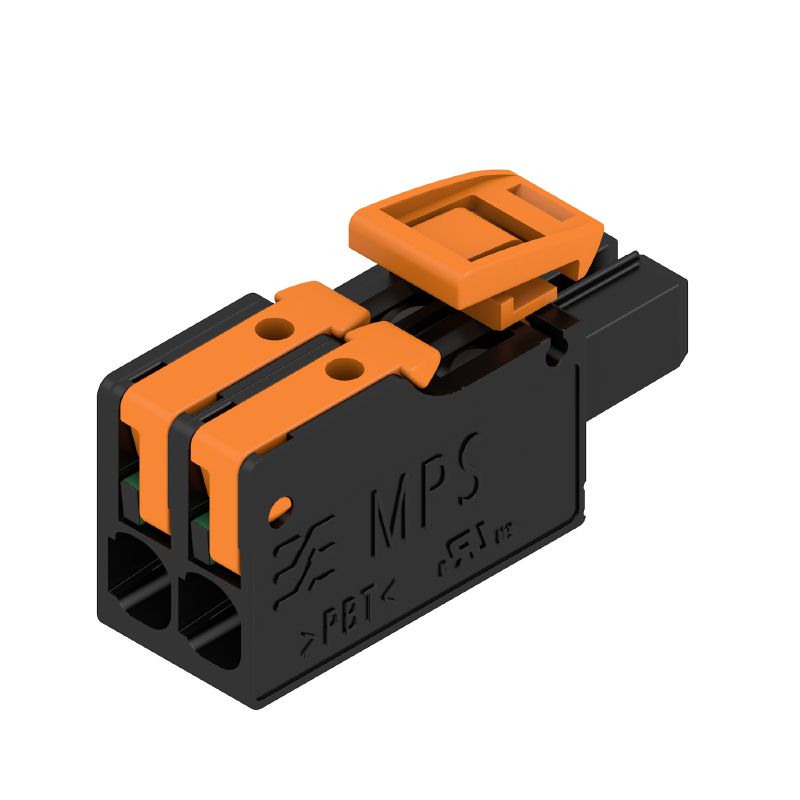

2741670000 - 5mm Pitch 2-Pole PCB Connector, Female, 180° Angle (Pack of 168)
2741670000 - 5mm Pitch 2-Pole PCB Connector, Female, 180° Angle (Pack of 168)
SKU: SKU: 2741670000 Download PDF
- 2741670000 - 5mm Pitch 2-Pole PCB Connector, Female, 180° Angle (Pack of 168)
- 2741670000 - 5mm Pitch 2-Pole PCB Connector, Female, 180° Angle (Pack of 168)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the reliability of this 500 mm pitch PCB plug-in connector, featuring a female plug configuration with a dual pole design arranged at a 180° angle It adheres to RoHS standards and proudly holds UL certification under file number E60693 This versatile connector accommodates a range of wire sizes, from 05 to 4 mm² for IEC applications, and supports AWG sizes 20-12 for UL compliance Each unit is conveniently packaged in a practical box format for easy storage and transport.
Features and Benefits:
•Compliant with RoHS standards.
•Rated operating temperature range from -50 °C to +125 °C.
•Touch-safe protection according to DIN VDE standards.

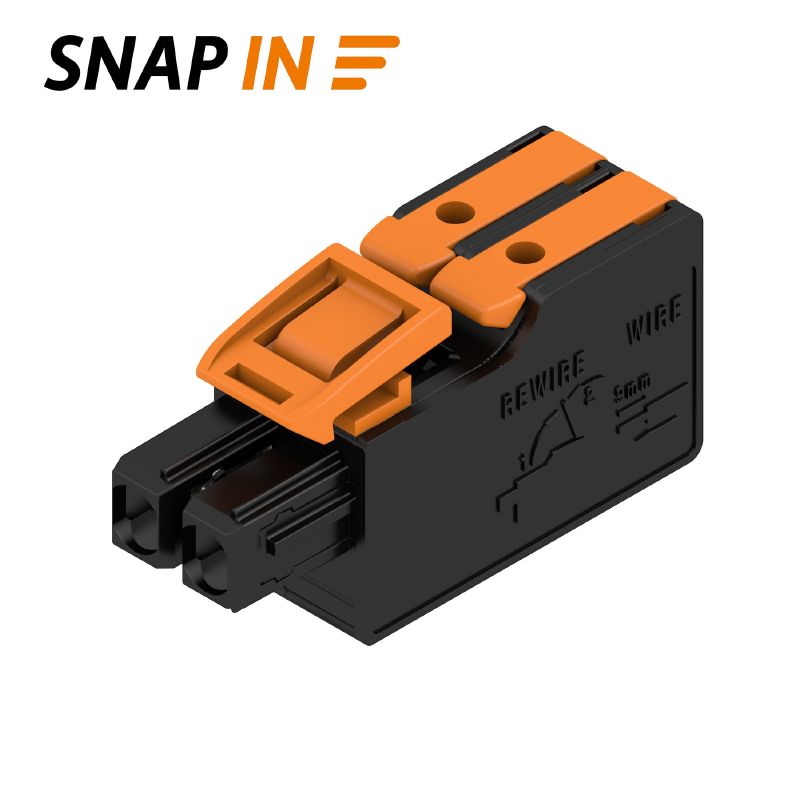

•SNAP IN connection method with lever.
Specifications:

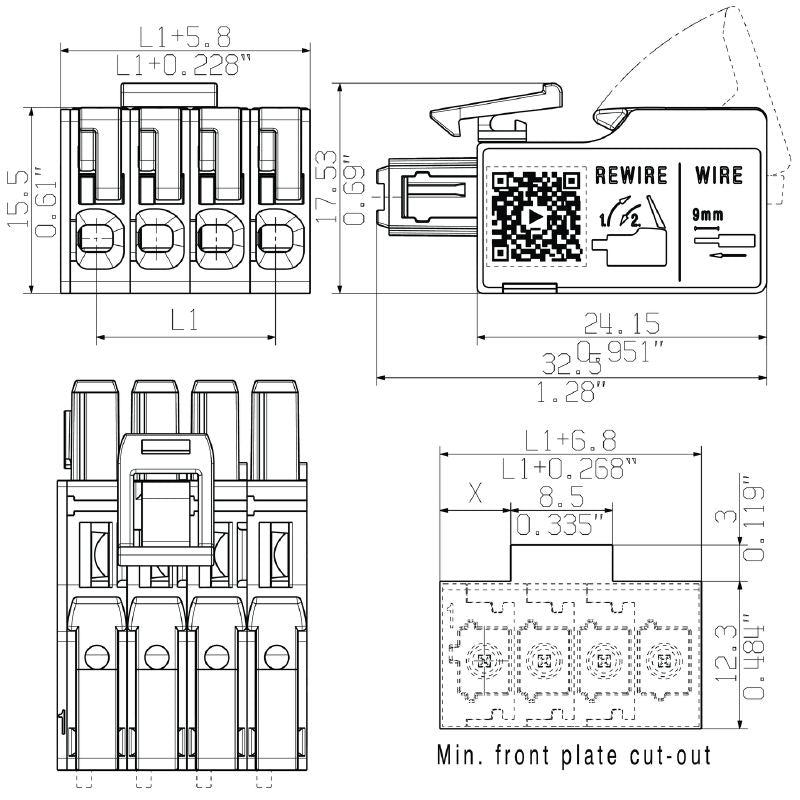

| Depth (mm) | 34 |
| Height (mm) | 17.5 |
| Width (mm) | 10.8 |
| Ambient temperature | -50 °C…125 °C |
| Rated voltage IEC | 400 V |

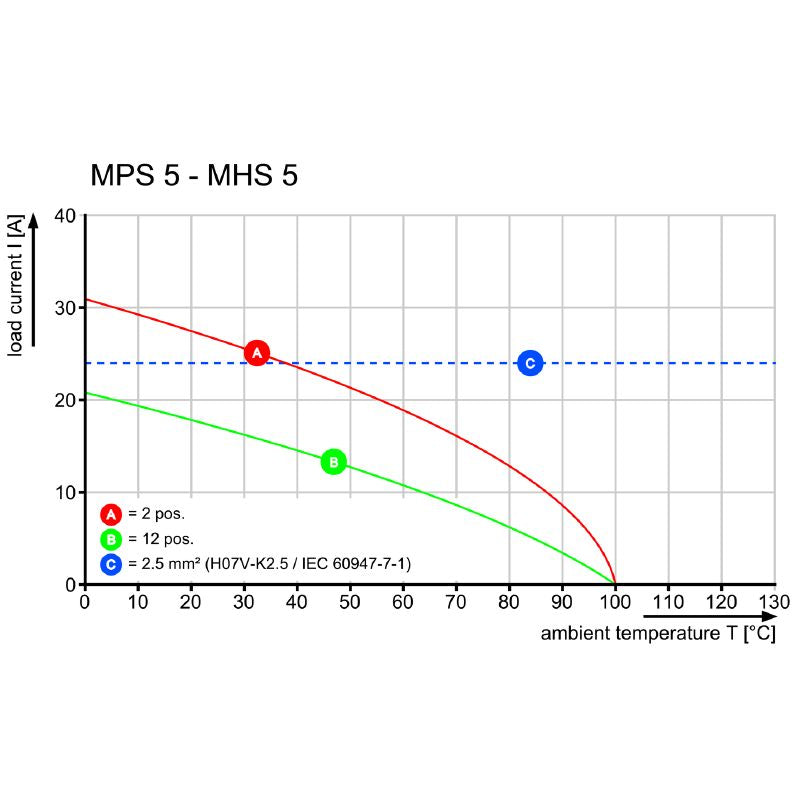

| Rated current IEC | 26.8 A |
| Pitch in mm | 5 |
| Number of poles | 2 |
| Protection degree | IP20 |
| Volume resistance | ≤5 mΩ |
| Material | PBT GF |
| Insulation resistance | ≥ 600 |
| Flammability rating | V-0 |
