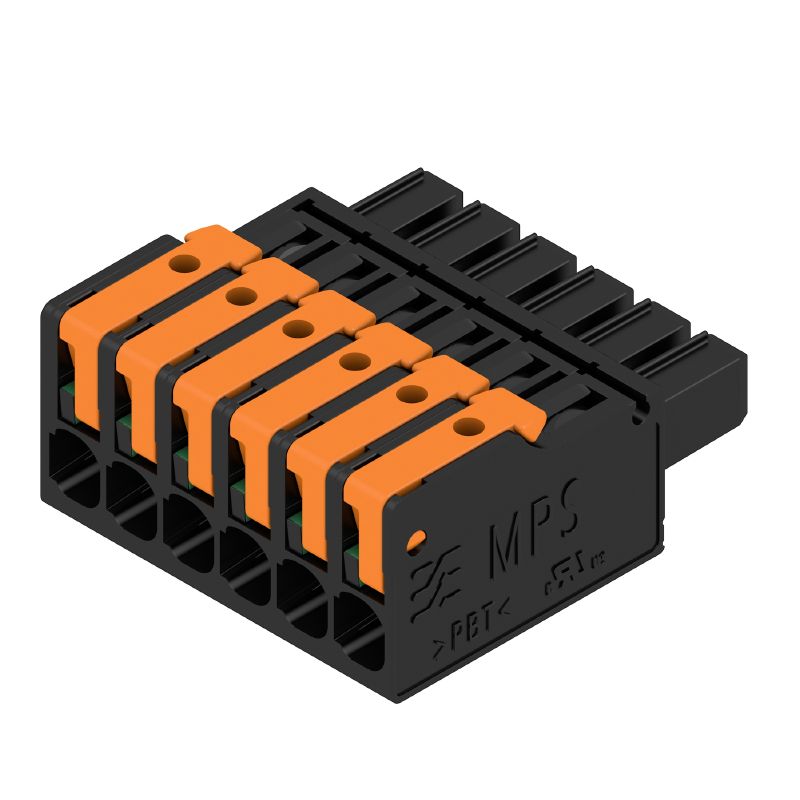

2741600000 - 5mm Female PCB Connector, 6 Poles, 400V, Touch-Safe (Pack of 60)
2741600000 - 5mm Female PCB Connector, 6 Poles, 400V, Touch-Safe (Pack of 60)
SKU: SKU: 2741600000 Download PDF
- 2741600000 - 5mm Female PCB Connector, 6 Poles, 400V, Touch-Safe (Pack of 60)
- 2741600000 - 5mm Female PCB Connector, 6 Poles, 400V, Touch-Safe (Pack of 60)
Couldn't load pickup availability
Description:
Introducing the MPS 5/06 S TN B B connector, expertly crafted as a female plug-in component with a compact 5 mm pitch This reliable connector supports up to 6 poles arranged at a 180° angle, making it versatile for various applications It meets stringent standards, including RoHS and UL certification, and is rated for a maximum voltage of 400 V with a current capacity of 268 A per pole
Packaged in convenient boxes, each unit measures 34 mm in depth, 15.

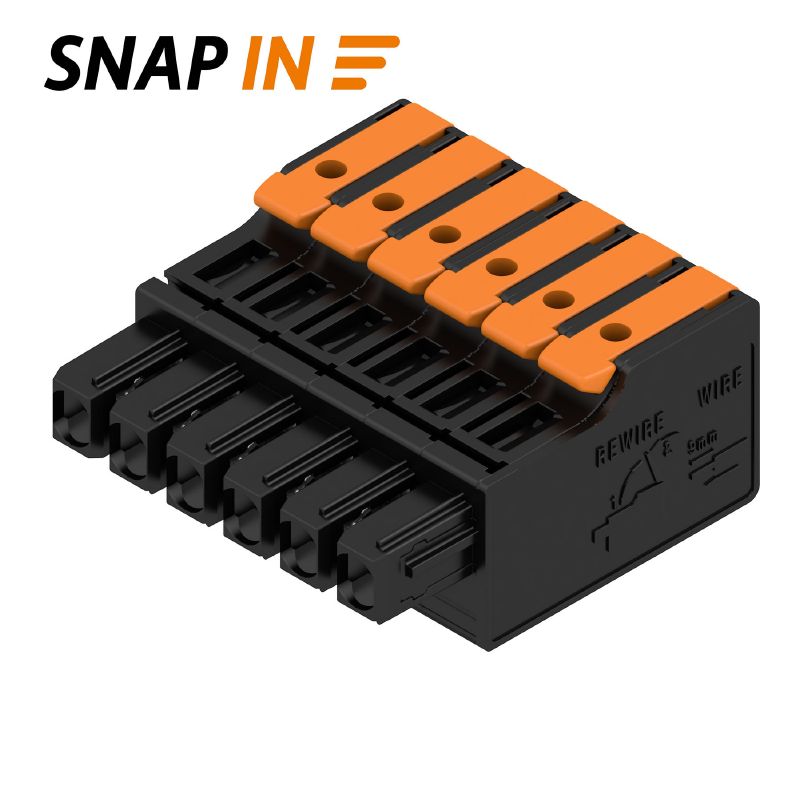

5 mm in height, and 308 mm in width, weighing roughly 15319 g The connection process is simplified by its SNAP IN design with a lever, ensuring ease of use while providing touch-safe protection in accordance with safety standards Perfect for a wide array of wiring solutions.
Features and Benefits:
•Complies with RoHS and UL standards.
•Rated for ambient temperatures between -50 °C and 125 °C.
•Snap-in wire connection method for ease of use.
•Touch-safe protection to prevent accidental contact.
•Volume resistance is ≤ 5 mΩ.
Specifications:
| Dimensions | {'Depth': '34 mm', 'Height': '15.5 mm', 'Width': '30.8 mm'} |
| Temperature | {'Ambient': '-50 °C to 125 °C', 'Storage': '-25 °C to 55 °C'} |
| Max Voltage | {'IEC': '400 V', 'UL': '300 V'} |
| Max Current | {'IEC': '26.8 A', 'UL': '18.5 A'} |
| Pitch | 5 mm |
| Number of Poles | 6 |
| Insulating Material | PBT GF |
| Color | black |
| Protection Degree | IP20 |
| Clamping Range | 0.34 mm² to 4 mm² |
