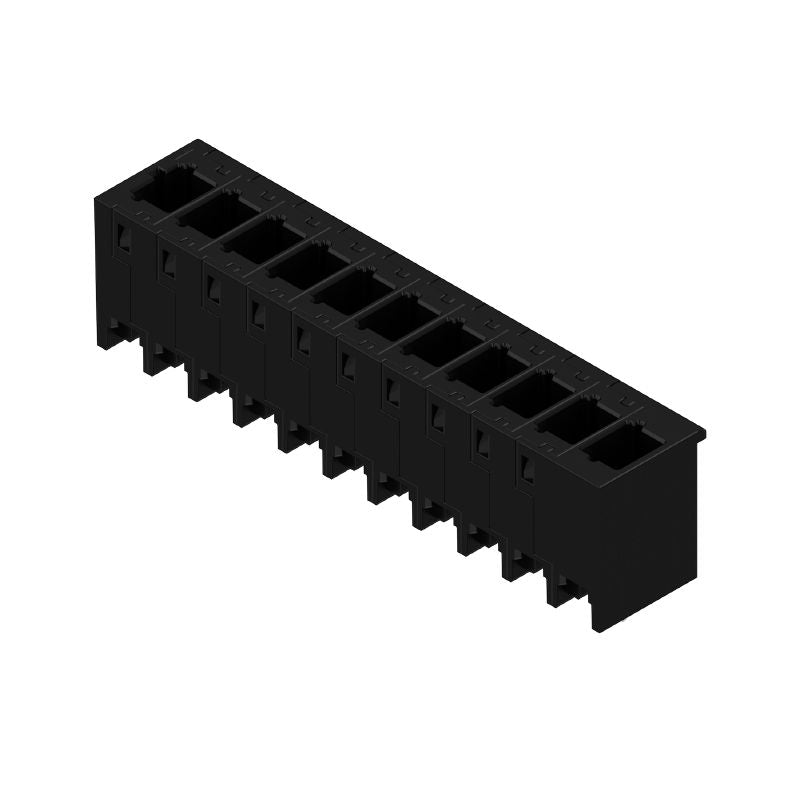

8000072461 - 11-Pole 5mm Male Header PCB Connector, THT/THR Design (Pack of 9)
8000072461 - 11-Pole 5mm Male Header PCB Connector, THT/THR Design (Pack of 9)
SKU: SKU: 8000072461 Download PDF
- 8000072461 - 11-Pole 5mm Male Header PCB Connector, THT/THR Design (Pack of 9)
- 8000072461 - 11-Pole 5mm Male Header PCB Connector, THT/THR Design (Pack of 9)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the versatility of this male header PCB plug-in connector, engineered for THT/THR solder connections With a pitch of 500 mm, it boasts 11 poles positioned at a 180° angle and is conveniently packaged in a durable tube Meeting multiple industry standards, this connector guarantees both safety and reliability for various electrical applications.
Features and Benefits:
•Compliant with RoHS regulations.
•Touch-safe above the printed circuit board according to DIN VDE standards.
•Suitable for a wide range of ambient temperature from -50 °C to 125 °C.
•Low volume resistance of ≤5 mΩ.
•Can withstand a high number of at least 25 plugging cycles.
Specifications:

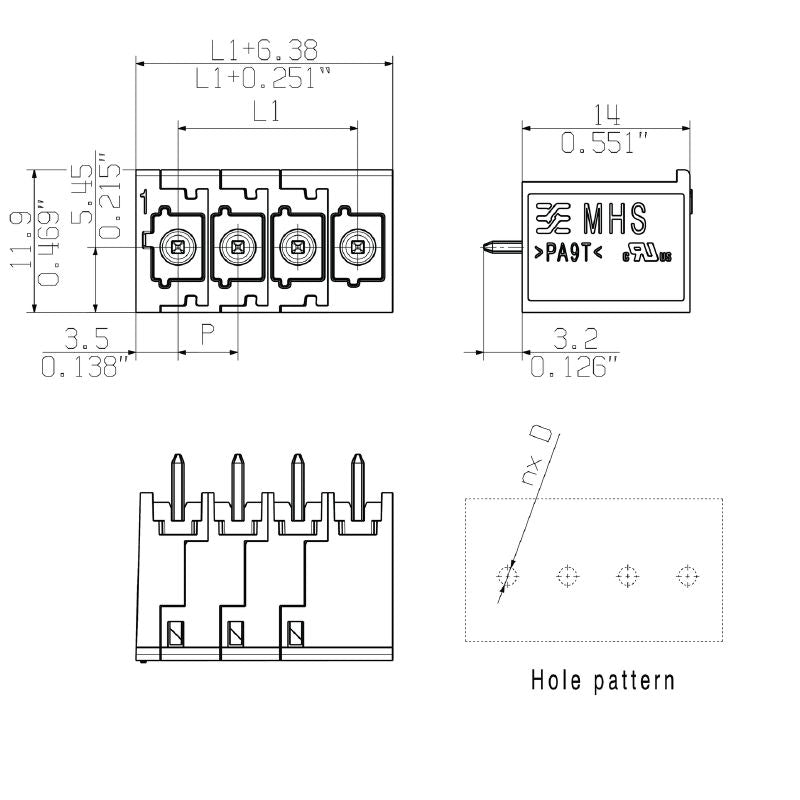

| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 56.38 mm |
| Pitch in mm (P) | 5 mm |
| Number of poles | 11 |
| Rated voltage | 400 V |
| Rated current | 25.3 A |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Solder pin length | 3.2 mm |
| Plugging force/pole, max. | 8.5 N |
| Pulling force/pole, max. | 8.5 N |
| Insulating material | PA 9T |
| Volume resistance | ≤5 mΩ |
| Protection degree | IP20 |
