Description:

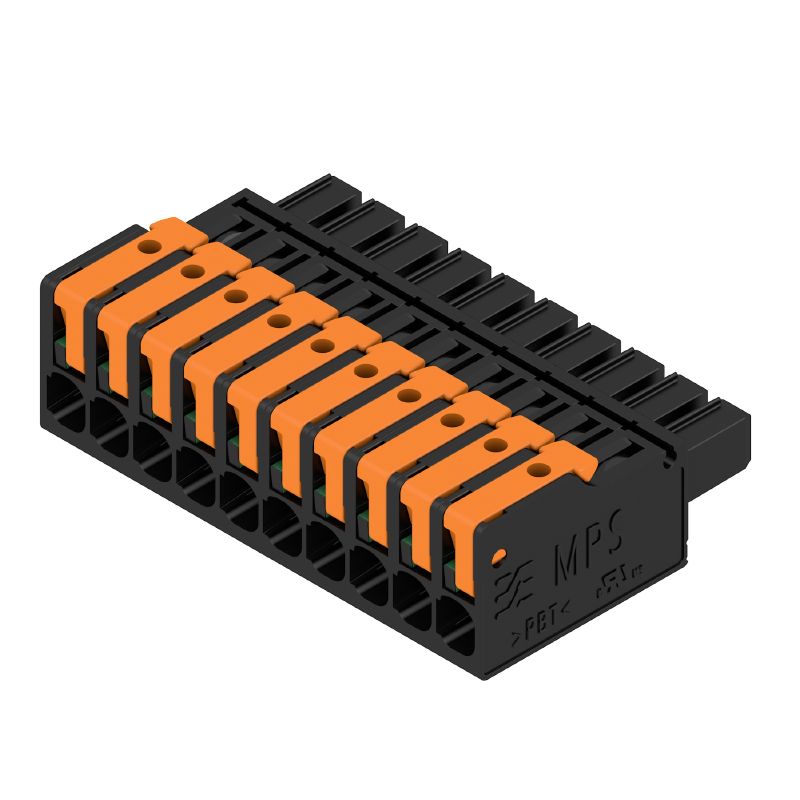

Introducing the MPS 5/10 S TN B B connector, a reliable PCB plug-in solution featuring a female plug With a 500 mm pitch, this connector includes 10 poles arranged in a 180° orientation It is designed to handle voltages of up to 400 V and supports a current capacity of 268 A, making it suitable for wire sizes from 05 to 4 mm² Additionally, it meets UL standards, rated for 300 V and 185 A for AWG wire sizes ranging from 20 to 12, ensuring safety and performance for your electrical connections.
Features and Benefits:

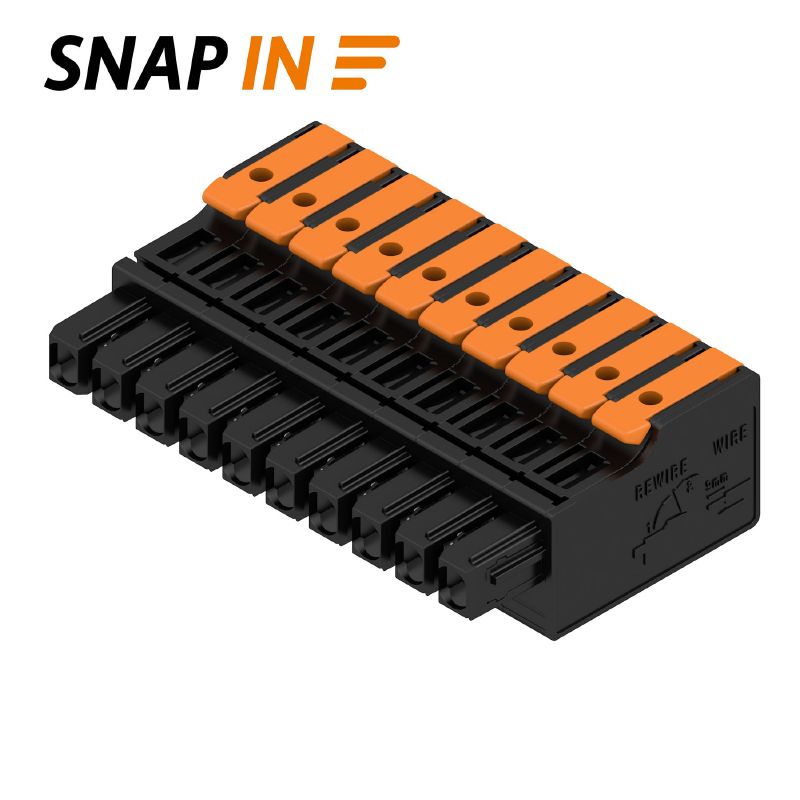

•Includes snap-in lever wire connection method.
•Touch-safe protection according to DIN VDE standards.

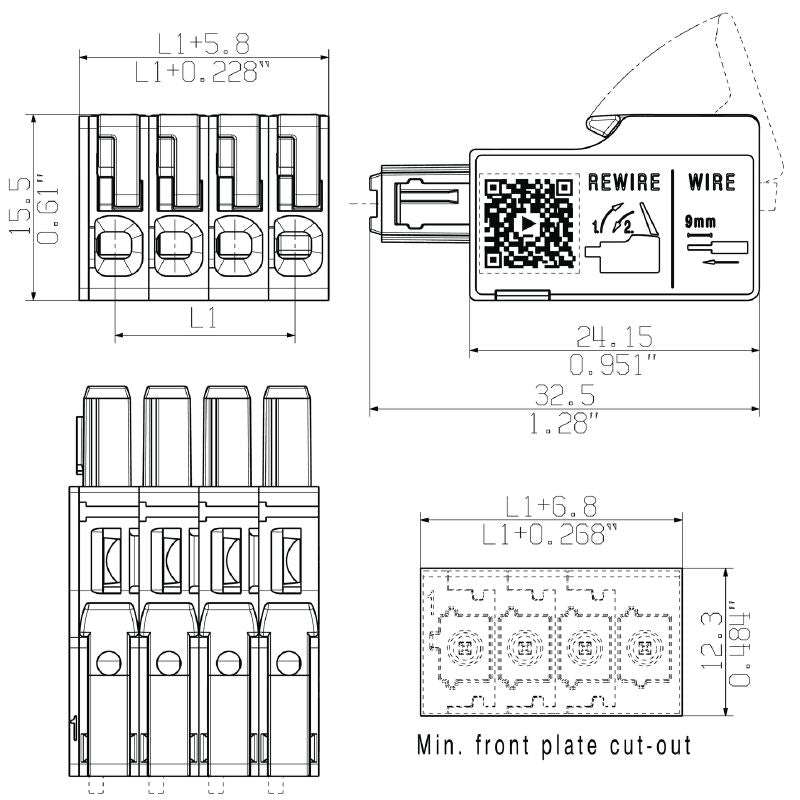

•Compact design with a depth of 34 mm and width of 50.8 mm.
•Constructed with durable PBT GF insulating material.
Specifications:
| Depth (mm) | 34 |
| Height (mm) | 15.5 |
| Width (mm) | 50.8 |
| Ambient Temperature | -50 °C to 125 °C |
| Operating Temperature | -50 °C to 125 °C |
| Storage Temperature | -25 °C to 55 °C |
| Volume Resistance | ≤5 mΩ |
| Protection Degree | IP20 |
| Insulating Material Group | I |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 Flammability Rating | V-0 |
| Number of Poles | 10 |
| Pitch (mm) | 5 |
| Plugging Cycles | 25 |
| Max Plugging Force/Pole (N) | 8.5 |
| Max Pulling Force/Pole (N) | 8.5 |
