Description:

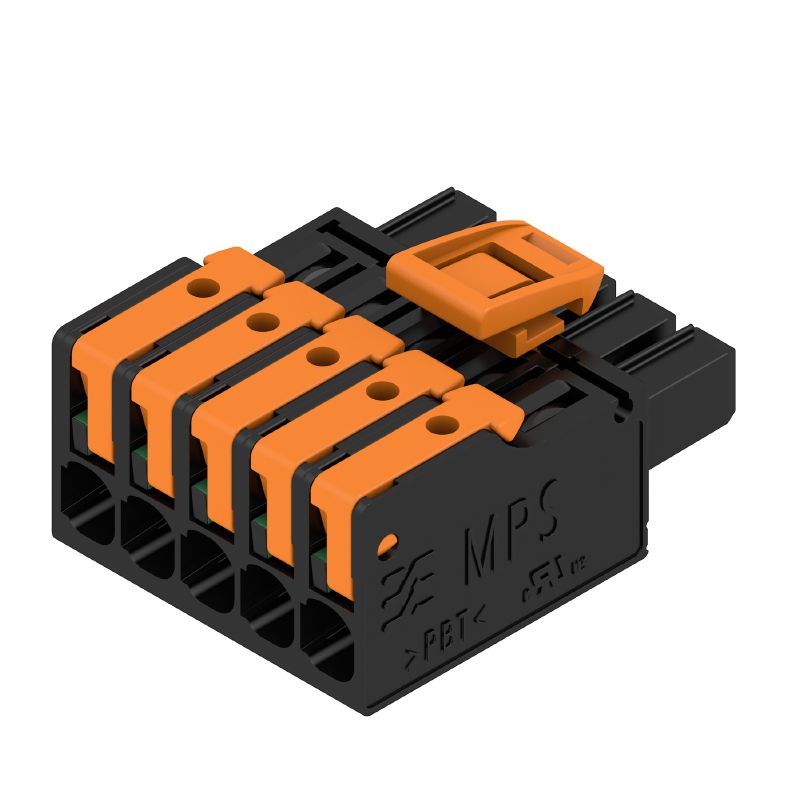

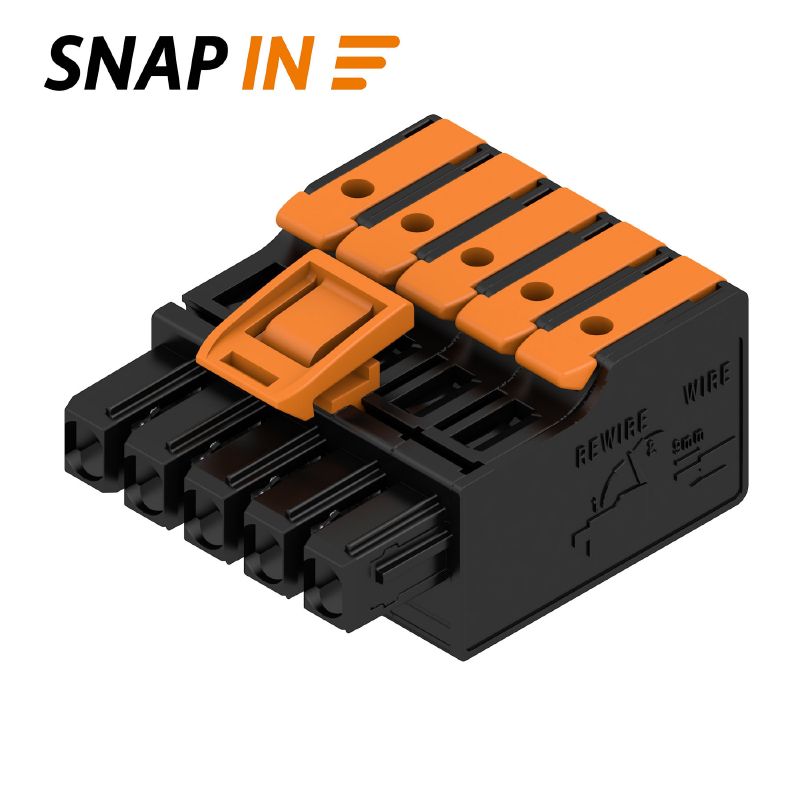

Introducing a versatile female PCB plug-in connector featuring a 500 mm pitch with 5 poles Crafted to meet both IEC and UL standards, this connector can handle voltages of up to 400 V at 268 A and 300 V at 185 A, making it suitable for various applications Each box contains 72 connectors, and they are designed to perform optimally in temperatures ranging from -50 °C to 125 °C Compliant with RoHS regulations, this connector boasts a snap-in design for secure connections and offers protection against accidental finger contact, conforming to IP20 specifications.
Features and Benefits:
•Connector features a pitch size of 5 mm.
•Plug-in design allows for easy installation.
•Safe from accidental finger touch.
•RoHS compliant without exemptions.
Specifications:
| Pitch in mm (P) | 5 mm |
| Type of connection | Field connection |
| Number of poles | 5 |

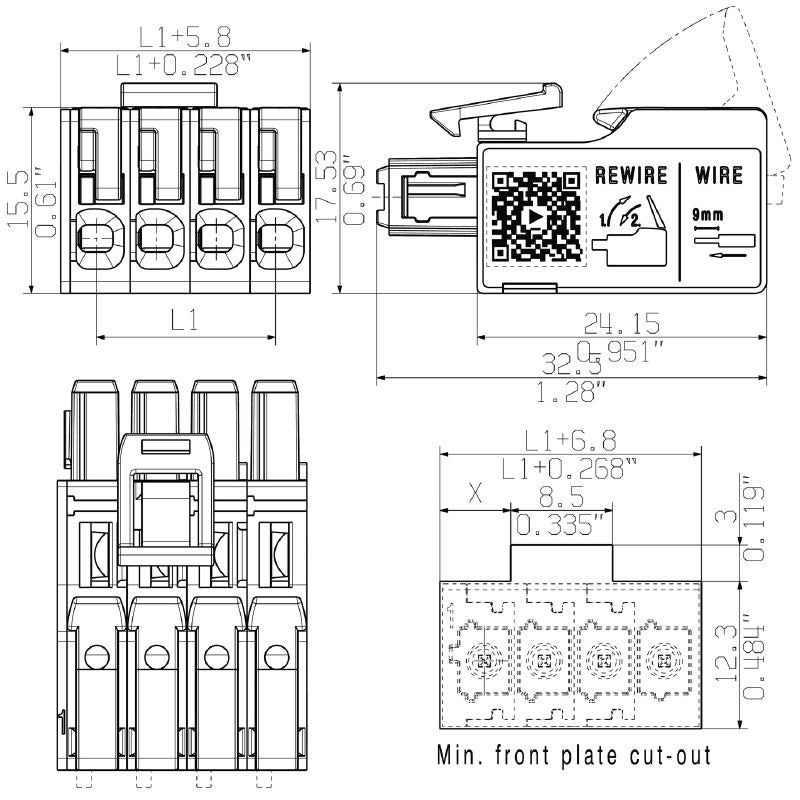

| Depth | 34 mm |
| Height | 17.5 mm |
| Width | 25.8 mm |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Volume resistance | ≤5 mΩ |
| Protection degree | IP20 |
| Insulating material | PBT GF |
| Contact material | Cu-alloy |
| Rated current (IEC) | 26.8 A |
| Rated voltage (IEC) | 400 V |
| Rated current (UL) | 18.5 A |
| Rated voltage (UL) | 300 V |
