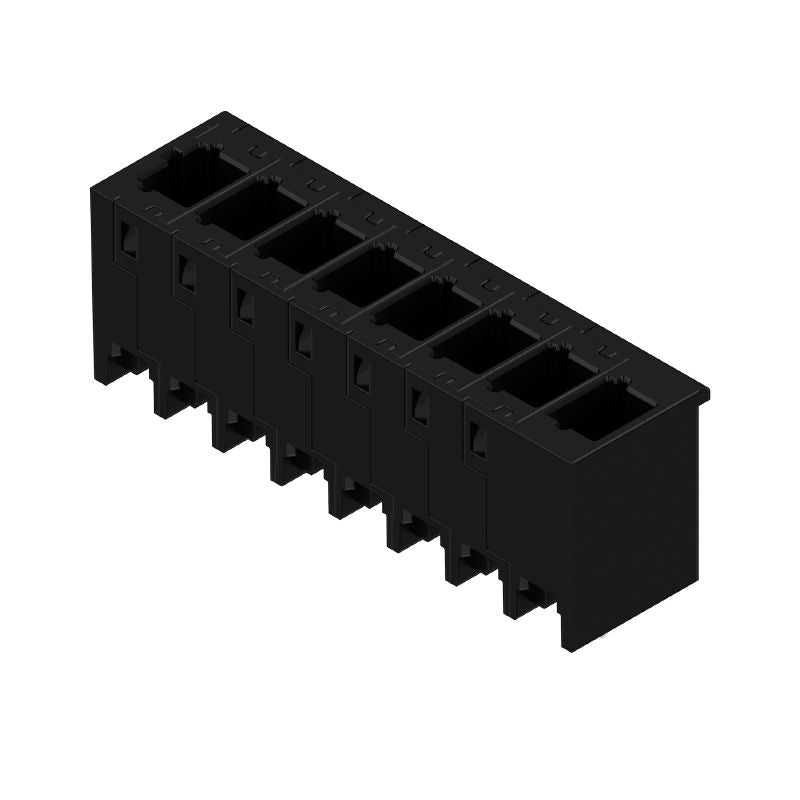

8000072453 - 5.00mm Male PCB Connector, 8-Pole, RoHS Compliant (Pack of 13)
8000072453 - 5.00mm Male PCB Connector, 8-Pole, RoHS Compliant (Pack of 13)
SKU: SKU: 8000072453 Download PDF
- 8000072453 - 5.00mm Male PCB Connector, 8-Pole, RoHS Compliant (Pack of 13)
- 8000072453 - 5.00mm Male PCB Connector, 8-Pole, RoHS Compliant (Pack of 13)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Upgrade your electronic connections with this PCB plug-in connector, featuring a male header designed for THT/THR soldering With a 500 mm pitch and 8 poles arranged at a 180° angle, it comes conveniently packaged in a tube for easy handling This component meets RoHS regulations and holds UL certification, ensuring reliability with designated voltage and current ratings Operating efficiently in temperatures ranging from -50 °C to 125 °C, it’s fully compliant with no exemptions.
Features and Benefits:
•Compliant with RoHS without exemptions.
•UL certified with various approved ratings.
•Designed for board connections with a high number of pins.
•Touch-safe above the printed circuit board.
•Low volume resistance.
•Suitable for various operating conditions with appropriate temperature and moisture handling.
Specifications:
| IEC Voltage Rating | 400 V / 25.3 A |
| UL Voltage Rating | 300 V / 18.5 A |

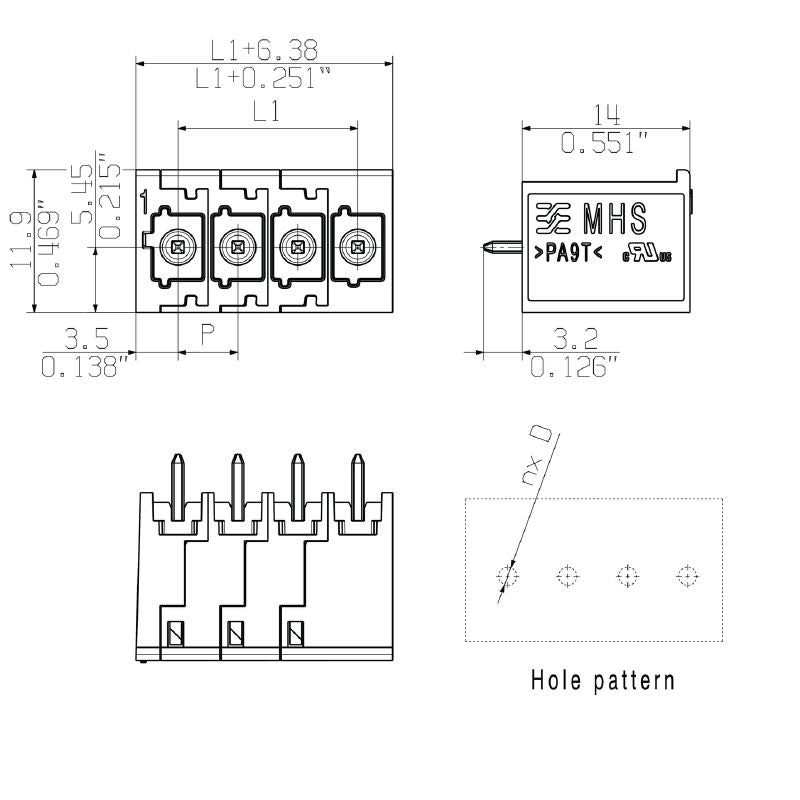

| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 41.38 mm |
| Net Weight | 5.221 g |
| Ambient Temperature | -50 °C to 125 °C |
| Insulating Material | PA 9T |
| Contact Base Material | CuMg |
| Contact Material | Cu-alloy |
| Rated Current (min. poles at 20°C) | 25.3 A |
| Rated Voltage for Pollution Degree II/2 | 400 V |
| IP Protection Degree | IP20 |
| Moisture Level | 1 |
