Description:

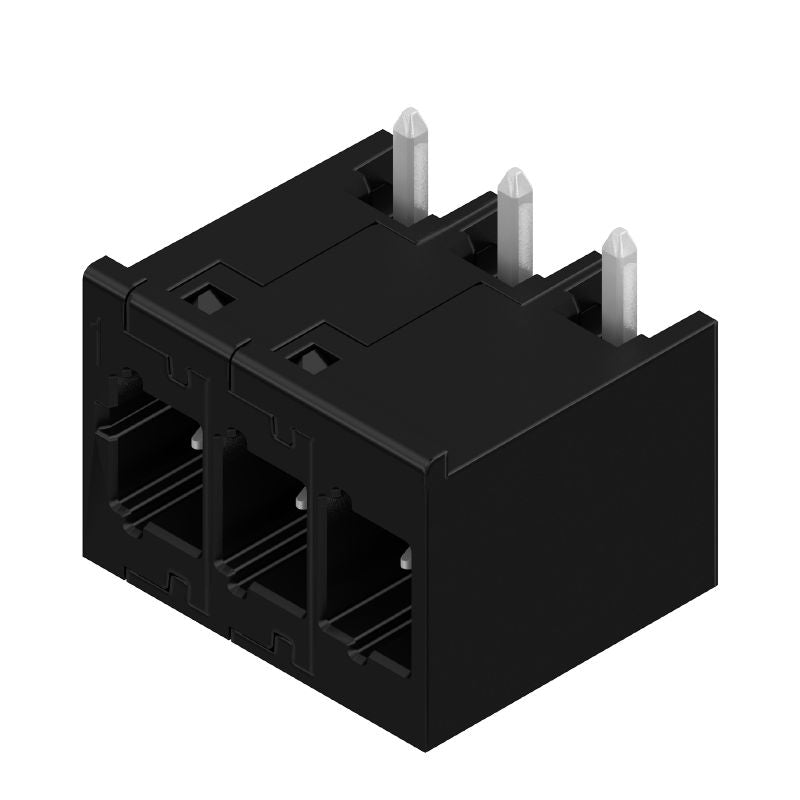

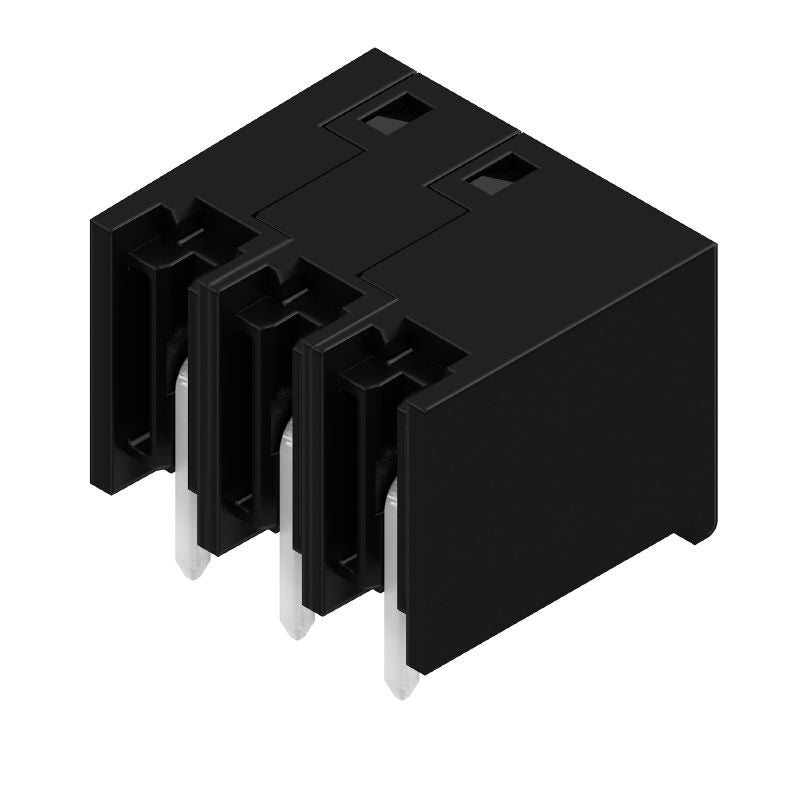

Discover the MHS 5/03 W T3 B T male header PCB connector, a reliable solution for your soldering needs With a 5 mm pitch, this plug-in connector accommodates 3 poles arranged in a 270° layout, ensuring efficient connectivity It is UL certified (file number E60693) and adheres to RoHS standards, guaranteeing safety and environmental compliance Capable of handling voltages up to 400 V and currents of 26.
8 A per IEC specifications, and 300 V at 185 A according to UL guidelines, this connector is built to perform Each unit is conveniently packaged in a tube, allowing you to order in sets of 33 for your project requirements.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Touch-safe protection according to DIN VDE standards.
•IP20 protection degree.
•Moisture Level 1.
•Storage temperature range from -25 °C to 55 °C.
•Ambient temperature range from -50 °C to 125 °C.
•UL 94 flammability rating of V-0.

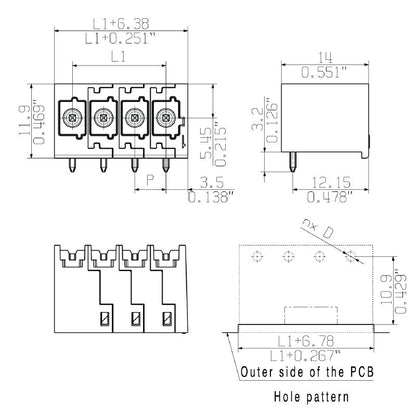

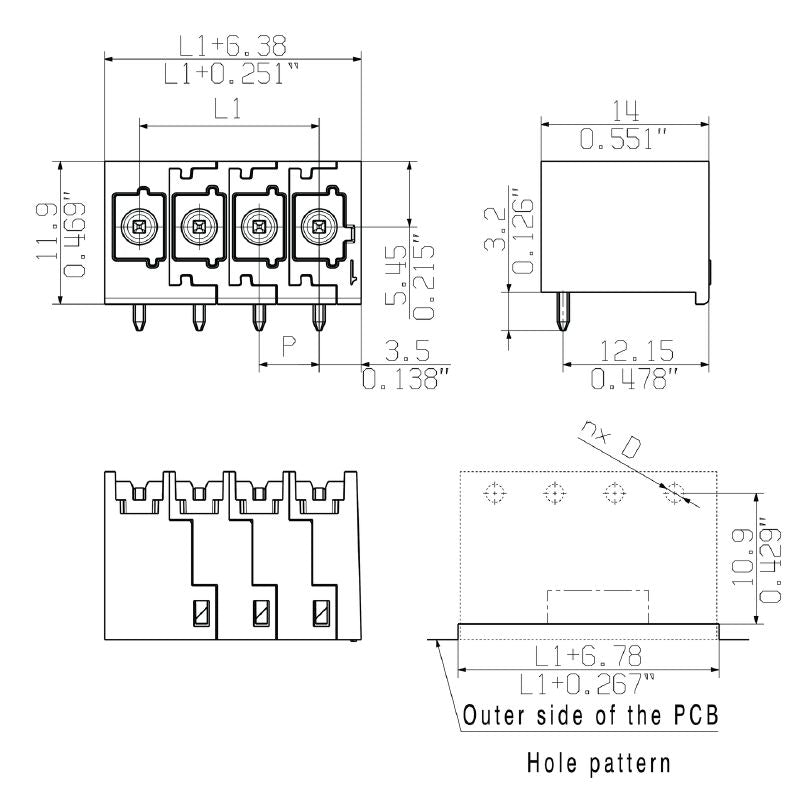

Specifications:
| Pitch in mm (P) | 5 mm |
| Number of poles | 3 |
| Solder pin length (l) | 3.2 mm |
| Solder pin dimensions | 1.0 x 1.0 mm |
| Outside diameter of solder pad | 2.3 mm |
| Rated current (number of poles at 20°C) | 26.8 A |
| Rated voltage (surge voltage class / pollution degree II/2) | 400 V |
| Creepage distance, min. | 5.4 mm |
| Clearance, min. | 4 mm |
