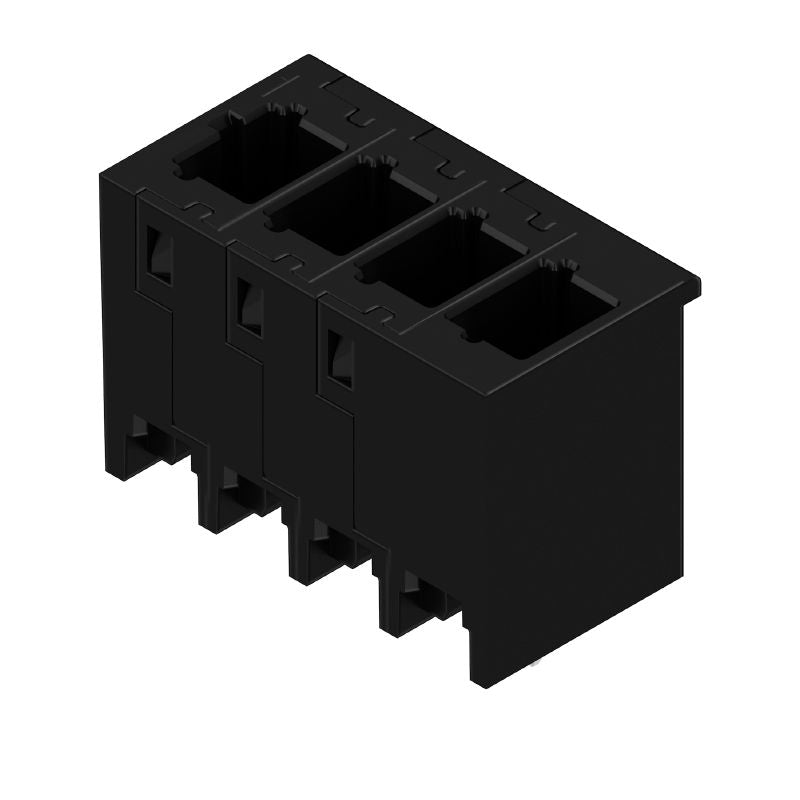

8000072431 - 5mm Pitch RoHS Certified 4-Pole PCB Connector (Pack of 25)
8000072431 - 5mm Pitch RoHS Certified 4-Pole PCB Connector (Pack of 25)
SKU: SKU: 8000072431 Download PDF
- 8000072431 - 5mm Pitch RoHS Certified 4-Pole PCB Connector (Pack of 25)
- 8000072431 - 5mm Pitch RoHS Certified 4-Pole PCB Connector (Pack of 25)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the MHS 5/04 V T3 B T, a robust male header PCB plug-in connector crafted for THT/THR soldering applications This connector boasts a 500 mm pitch and is configured with 4 poles in a 180° arrangement, ensuring reliable performance Conveniently packaged in tubes, it adheres to RoHS standards and carries UL certification, complete with a specific file number This component is designed for dependable use in various electronic projects and applications.
Features and Benefits:
•RoHS compliant without exemptions.
•Comes in a tube packaging.
•Touch-safe protection according to DIN VDE standards.
•Insulating material is PA 9T.
•Manufactured to comply with recognized international standards and norms.
Specifications:
| IEC Rated Voltage | 400 V |
| UL Rated Voltage | 300 V |
| Number of Poles | 4 |
| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 21.38 mm |
| Net Weight | 3.401 g |
| Ambient Temperature | -50 °C to 125 °C |
| Pin Series Quantity | 1 |
| Solder Pin Dimensions | 1.0 x 1.0 mm |
| Solder Pin Length | 3.2 mm |
| Volume Resistance | ≤5 mΩ |
| Plugging Cycles | ≥ 25 |
| Pulling Force per Pole | 8.5 N |
| Plugging Force per Pole | 8.5 N |
| Inside Diameter of Solder Eyelet | 1.4 mm |
| Touch-Safe Protection | IP 20 |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 Flammability Rating | V-0 |
| Storage Temperature | -25 °C to 55 °C |
| Operating Temperature | -50 °C to 100 °C |
| Rated Current at 20 °C | 25.3 A |
| Rated Voltage for Pollution Degree II/2 | 400 V |
| Rated Impulse Voltage for Pollution Degree II/2 | 4 kV |
| Min Clearance | 4 mm |
| Min Creepage Distance | 5.4 mm |
