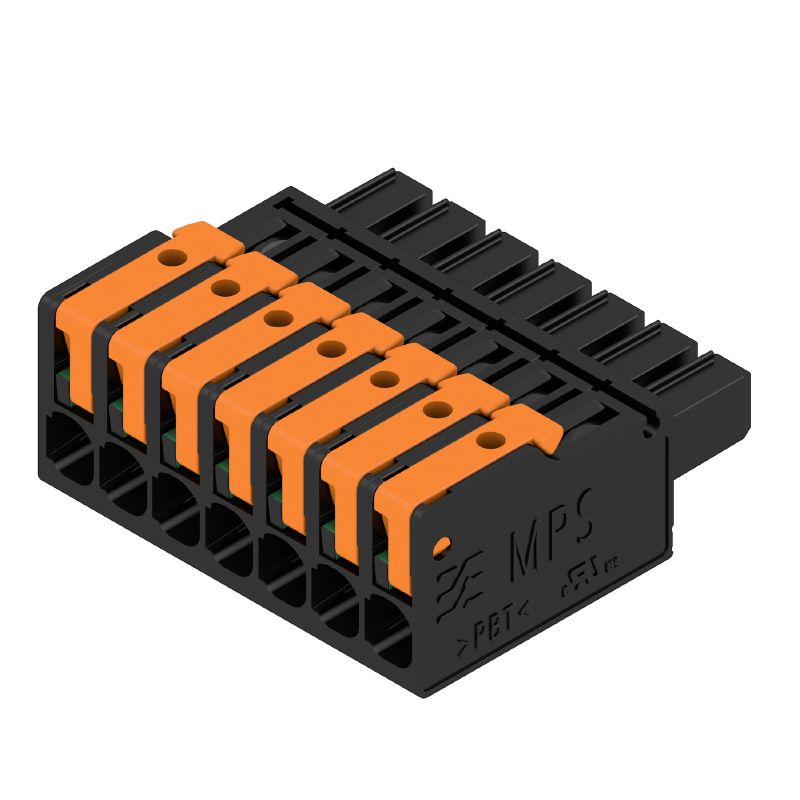

2741610000 - 5mm Pitch 7-Pole Female PCB Connector, 26.8A Rated (Pack of 48)
2741610000 - 5mm Pitch 7-Pole Female PCB Connector, 26.8A Rated (Pack of 48)
SKU: SKU: 2741610000 Download PDF
- 2741610000 - 5mm Pitch 7-Pole Female PCB Connector, 26.8A Rated (Pack of 48)
- 2741610000 - 5mm Pitch 7-Pole Female PCB Connector, 26.8A Rated (Pack of 48)
Couldn't load pickup availability
Description:
Introducing the MPS 5/07 S TN B B, a female plug PCB connector meticulously crafted with a 5 mm pitch and 7 poles Packaged in a sturdy box, this connector meets IEC and UL standards, making it versatile for a wide range of applications It boasts a current rating of 268 A at 400 V in alignment with IEC specifications and supports up to 185 A at 300 V under UL guidelines For optimal functionality, ensure that the appropriate ferrule lengths are used in relation to the rated voltage.
Features and Benefits:
•Field connection type.

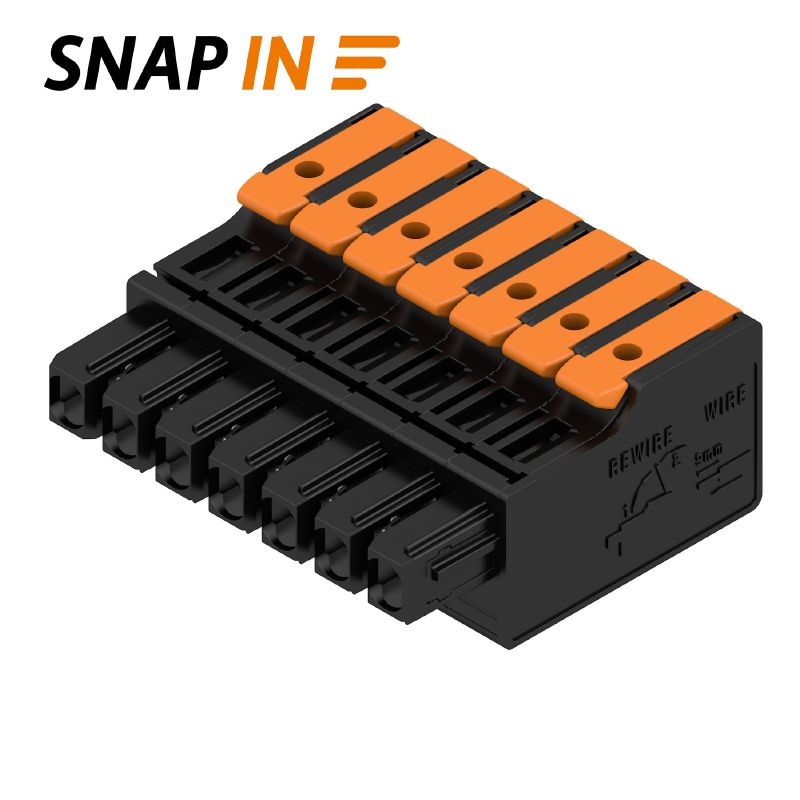

•Snap-in with lever wire connection method.
•180° conductor outlet direction.
•Touch-safe protection according to DIN VDE 57 106.
•IP20 protection degree.
•Safe from finger touch.

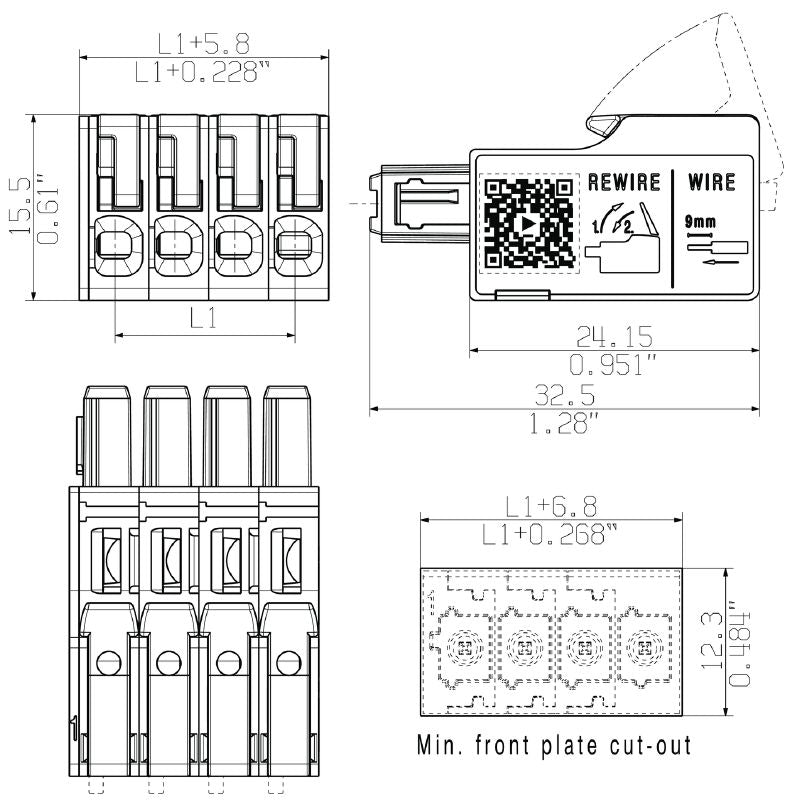

Specifications:
| Depth | 34 mm |
| Height | 15.5 mm |
| Width | 35.8 mm |
| Ambient temperature | -50 °C…125 °C |
| Insulating material | PBT GF |
| Color | black |
| Rated voltage | {'IEC': '400 V', 'UL': '300 V'} |
| Rated current | {'IEC': '26.8 A', 'UL': '18.5 A'} |
| Pitch | 5 mm |
| Stripping length | 9 mm |
| Plugging cycles | 25 |
| Volume resistance | ≤5 mΩ |
| Cross-section for conductor connection | {'min': '0.34 mm²', 'max': '4 mm²'} |
