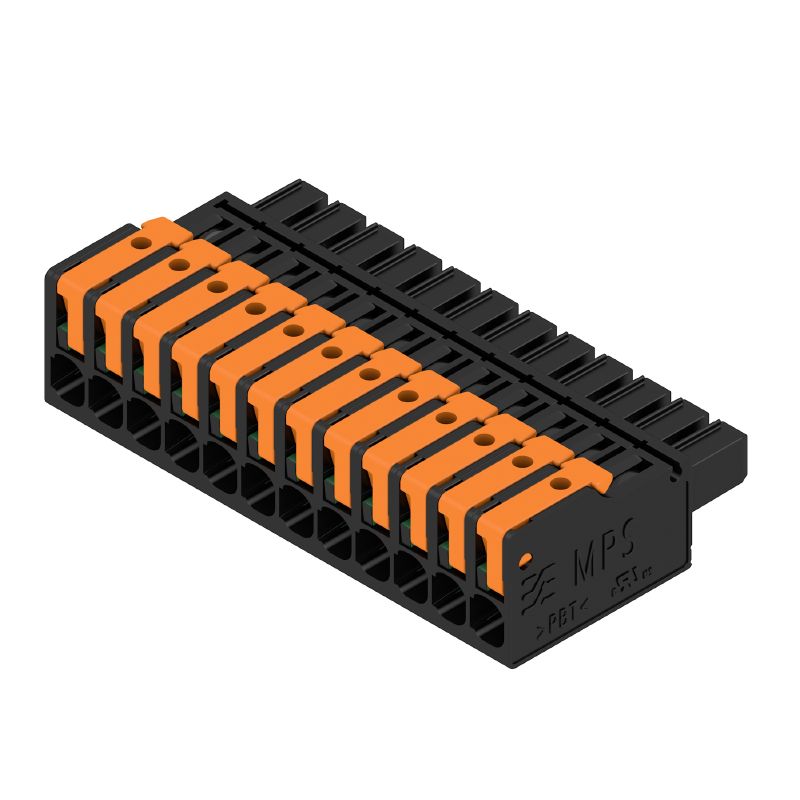

2741660000 - 5mm Pitch PCB Connector, 12 Poles, 26.8A Capacity (Pack of 30)
2741660000 - 5mm Pitch PCB Connector, 12 Poles, 26.8A Capacity (Pack of 30)
SKU: SKU: 2741660000 Download PDF
- 2741660000 - 5mm Pitch PCB Connector, 12 Poles, 26.8A Capacity (Pack of 30)
- 2741660000 - 5mm Pitch PCB Connector, 12 Poles, 26.8A Capacity (Pack of 30)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the MPS 5/12 S TN B B PCB plug-in connector, a reliable female connector with a 500 mm pitch and 12 poles This connector is engineered with a 180° conductor outlet direction and meets IEC standards, supporting voltage ratings up to 400 V With a maximum current capacity of 268 A in accordance with IEC regulations, it's a dependable choice for your electrical needs Each box contains 30 units, making it a practical option for bulk purchases.
Features and Benefits:
•Compliant with RoHS.
•Features a pitch of 5 mm.

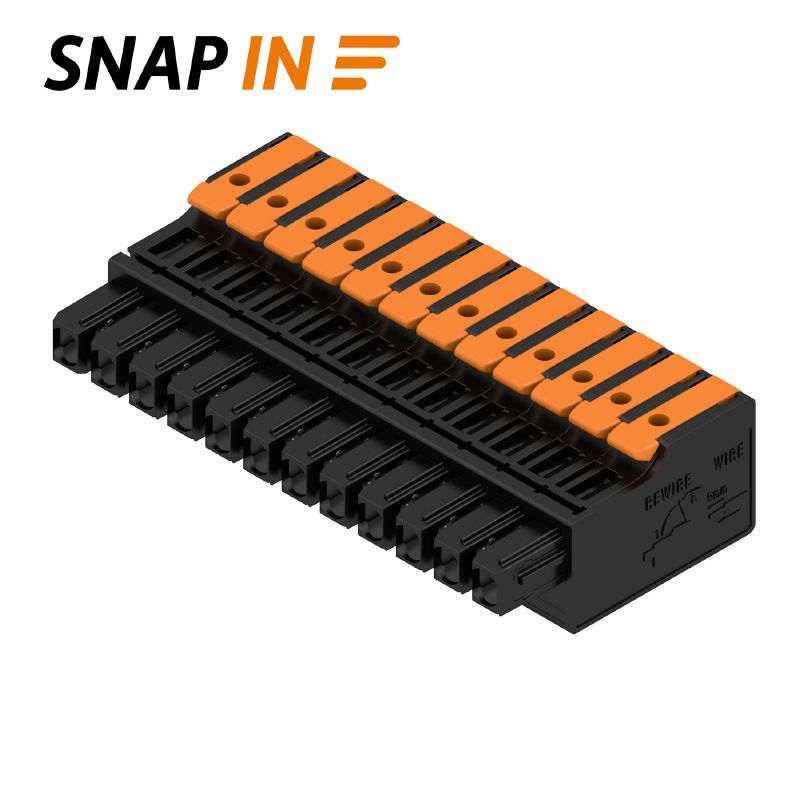

•Connection method uses SNAP IN with lever.
•Touch-safe protection as per DIN VDE standards.
•Durable construction with a volume resistance of ≤5 mΩ.
Specifications:

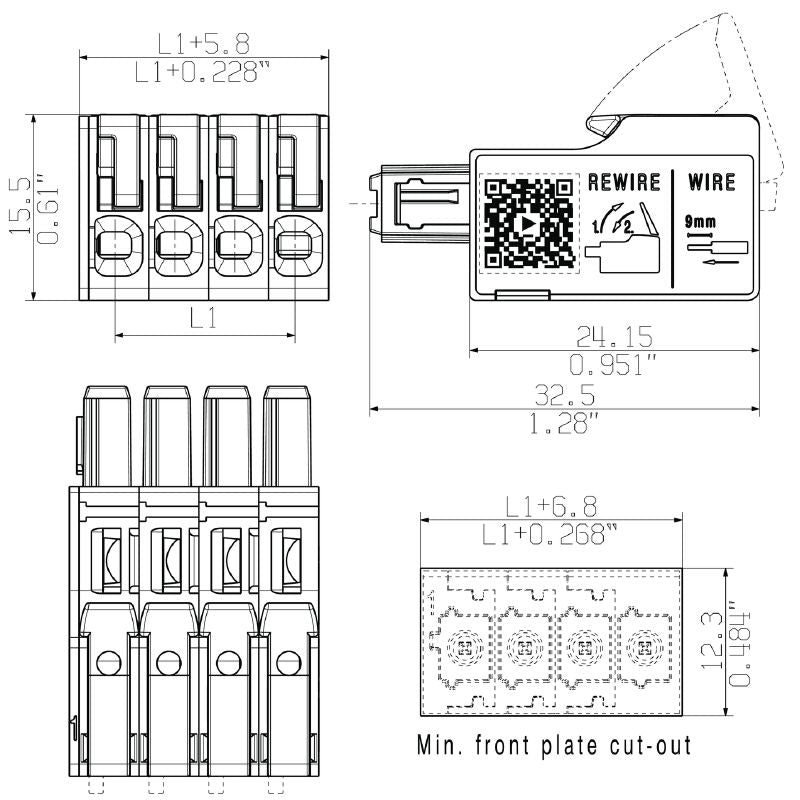

| Depth | 34 mm |
| Height | 15.5 mm |
| Width | 60.8 mm |
| Pitch in mm (P) | 5 mm |
| Number of poles | 12 |
| Rated voltage | 400 V |
| Rated current | 26.8 A |
| Operating temperature | -50 °C to 125 °C |
| Stripping length | 9 mm |
| Protection degree | IP20 |
| Material | PBT GF |
| Contact material | Cu-alloy |
| UL voltage rating | 300 V |
| Ambient temperature | -50 °C to 125 °C |
