2790400000 - 5mm Pitch Female PCB Plug, 3 Poles, Up to 400V (Pack of 114)
2790400000 - 5mm Pitch Female PCB Plug, 3 Poles, Up to 400V (Pack of 114)
SKU: SKU: 2790400000 Download PDF
- 2790400000 - 5mm Pitch Female PCB Plug, 3 Poles, Up to 400V (Pack of 114)
- 2790400000 - 5mm Pitch Female PCB Plug, 3 Poles, Up to 400V (Pack of 114)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

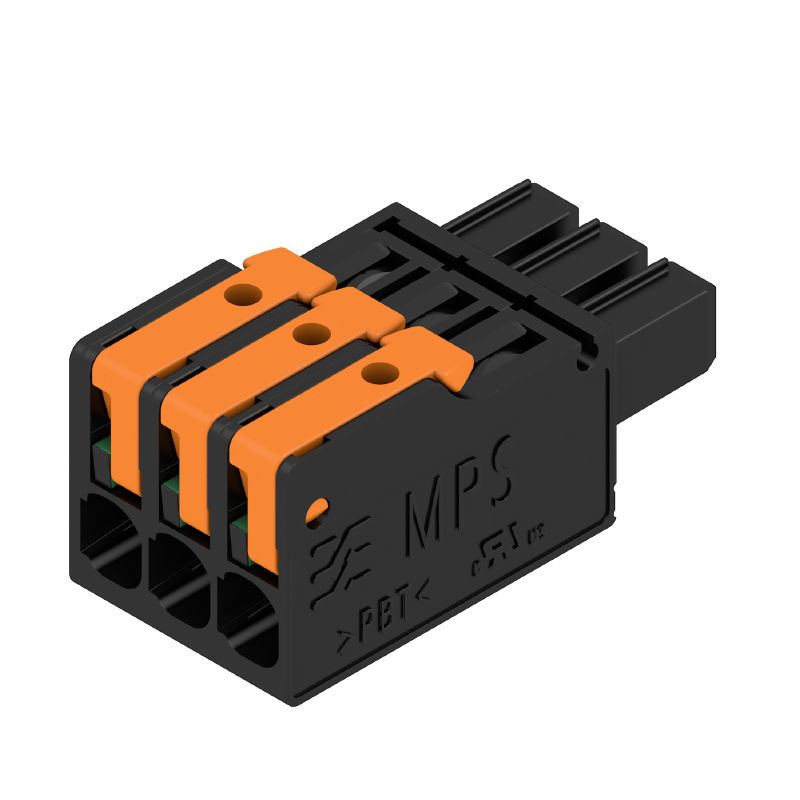

Introducing the MPS 5/03 S TN B B D, a versatile female plug PCB connector with a 5 mm pitch, capable of accommodating three poles This robust connector meets IEC specifications and can handle voltages up to 400 V and a current of 268 A It supports wire connections ranging from 05 to 4 mm², making it adaptable for various applications Weighing in at approximately 7948 g, this product is securely packaged in a box for easy storage and transport.
Features and Benefits:
•RoHS compliant without exemption.
•Suitable for ambient temperatures ranging from -50 °C to 125 °C.
•Touch-safe protection according to DIN VDE 57 106.
•Plugging cycles of at least 25.

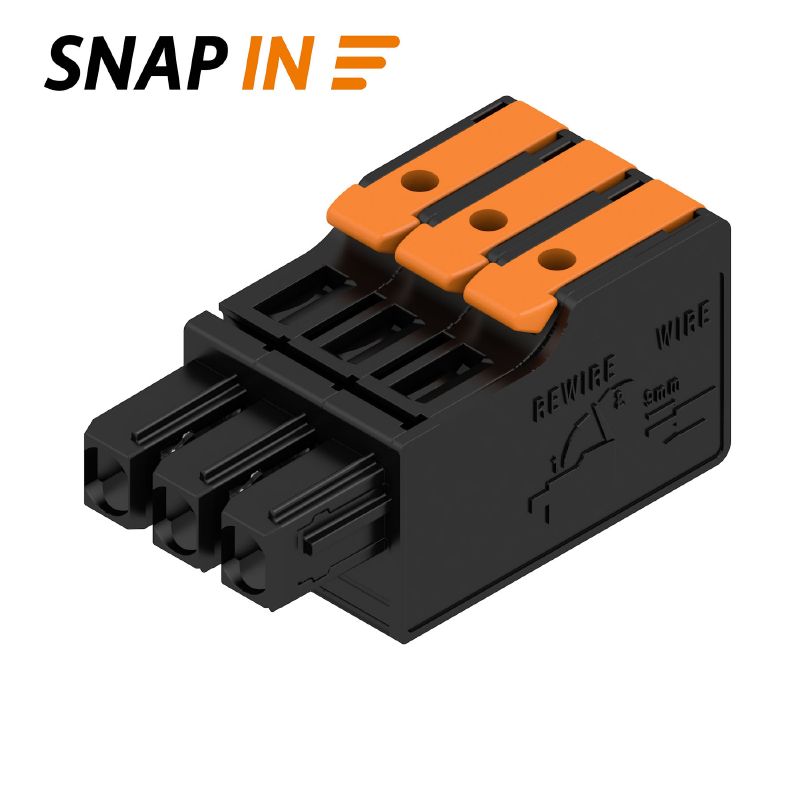

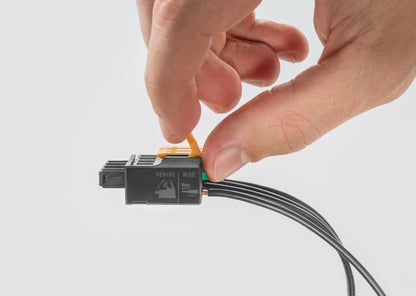

•SNAP IN with lever wire connection method.
Specifications:

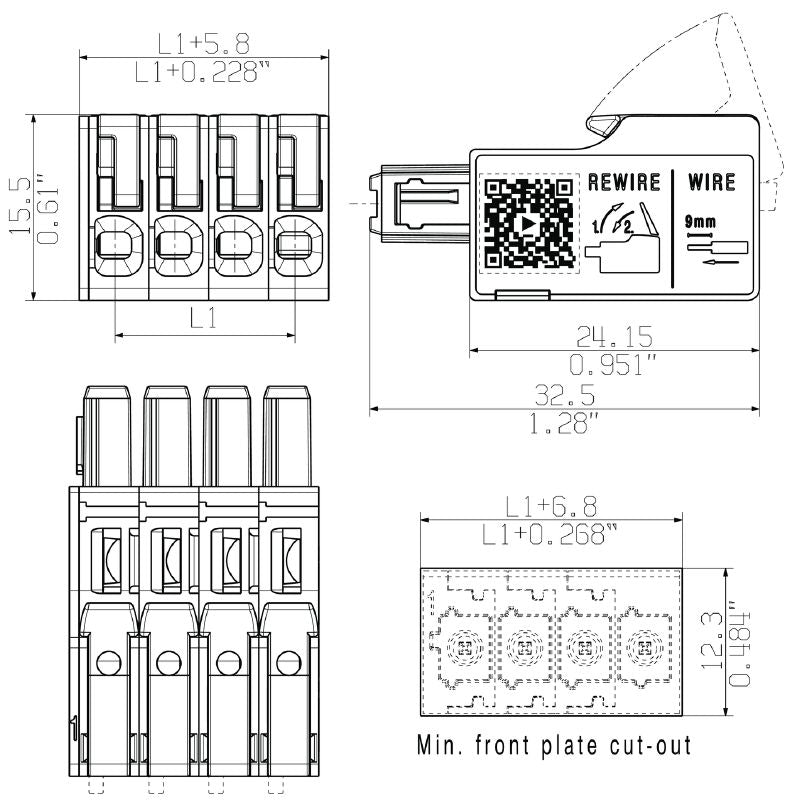

| Dimensions | {'Depth': '34 mm', 'Height': '15.5 mm', 'Width': '15.8 mm'} |
| Operating_temperature | {'min': '-50 °C', 'max': '100 °C'} |
| Storage_temperature | {'min': '-25 °C', 'max': '55 °C'} |

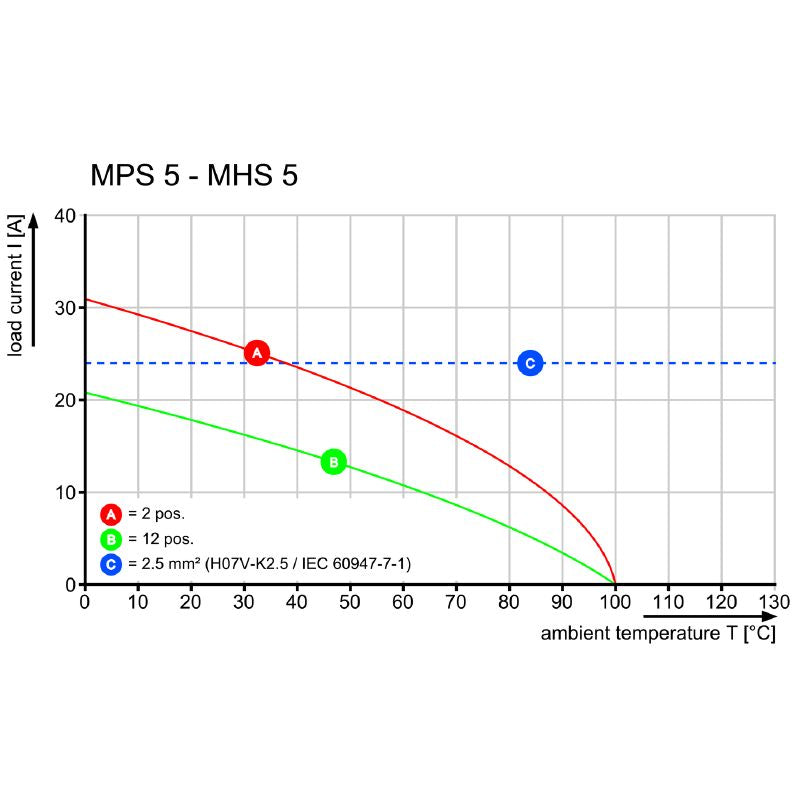

| Rated_current | {'max_poles_Tu_20°C': '26.8 A', 'min_poles_Tu_20°C': '19.7 A'} |
| Rated_voltage | 300 V |
| Volume_resistance | ≤5 mΩ |
