Description:

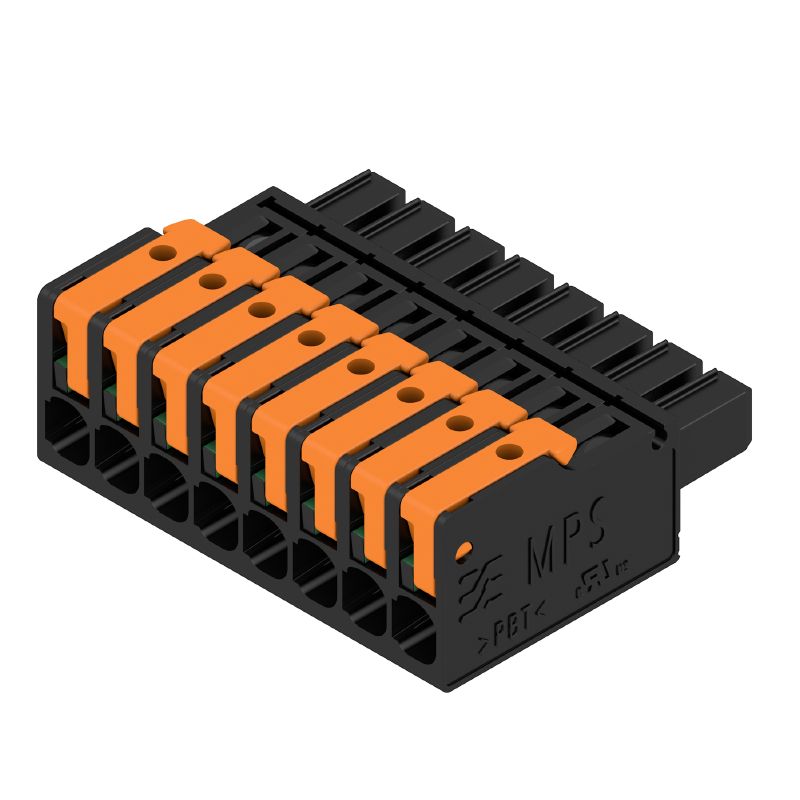

Introducing the MPS 5/08 S TN B B female plug PCB connector, featuring a 500 mm pitch and accommodating 8 poles at a 180° angle This connector meets IEC standards with a voltage capacity of 400V and supports a current of 268A Additionally, it complies with UL specifications, rated for 300V and 185A, making it versatile for wire sizes ranging from 05 to 4 mm² Each connector is thoughtfully packaged in a box and is part of the innovative OMNIMATE 4.
0 series, ensuring reliability and performance for your electronic applications.
Features and Benefits:
•Touch-safe protection conforms to DIN VDE standards.
•SNAP IN connection method with a lever.
•Plugging cycles rated at 25.
•Environmental compliance with RoHS and no SVHC.
Specifications:
| Depth | 34 mm |
| Height | 15.5 mm |
| Width | 40.8 mm |
| Ambient temperature | -50 °C…125 °C |
| Volume resistance | ≤5 mΩ |
| Stripping length | 9 mm |
| Protection degree | IP20 |
| Material | PBT GF |
| Insulating material group | I |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 flammability rating | V-0 |
| Conductor outlet direction | 180° |
| Number of poles | 8 |
| Pitch in mm | 5 mm |
| Rated current, min. number of poles (Tu=20°C) | 26.8 A |
| Rated current, max. number of poles (Tu=20°C) | 19.7 A |
| Rated voltage | 400 V |
