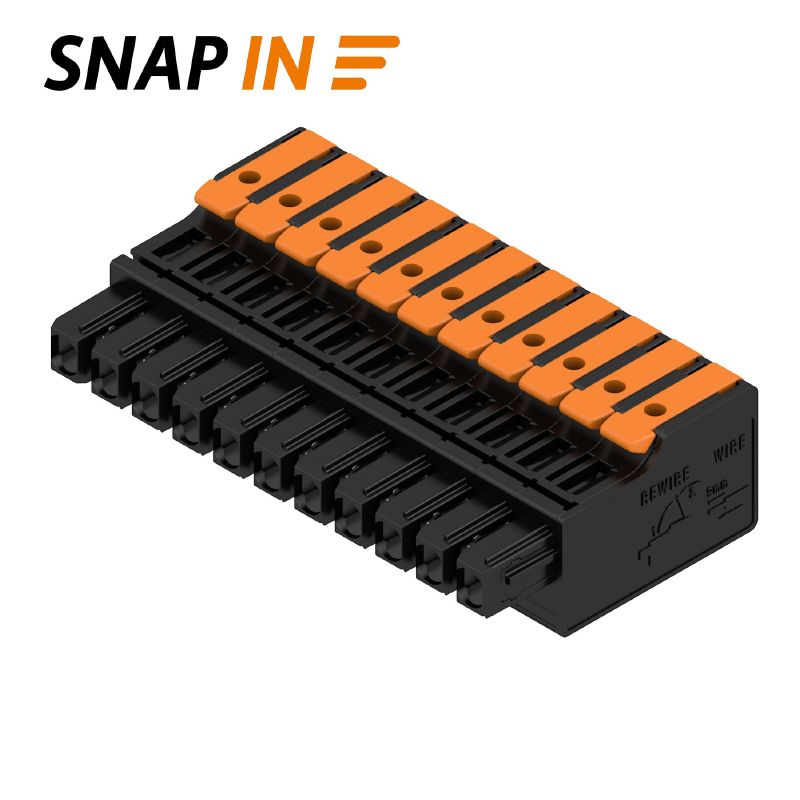

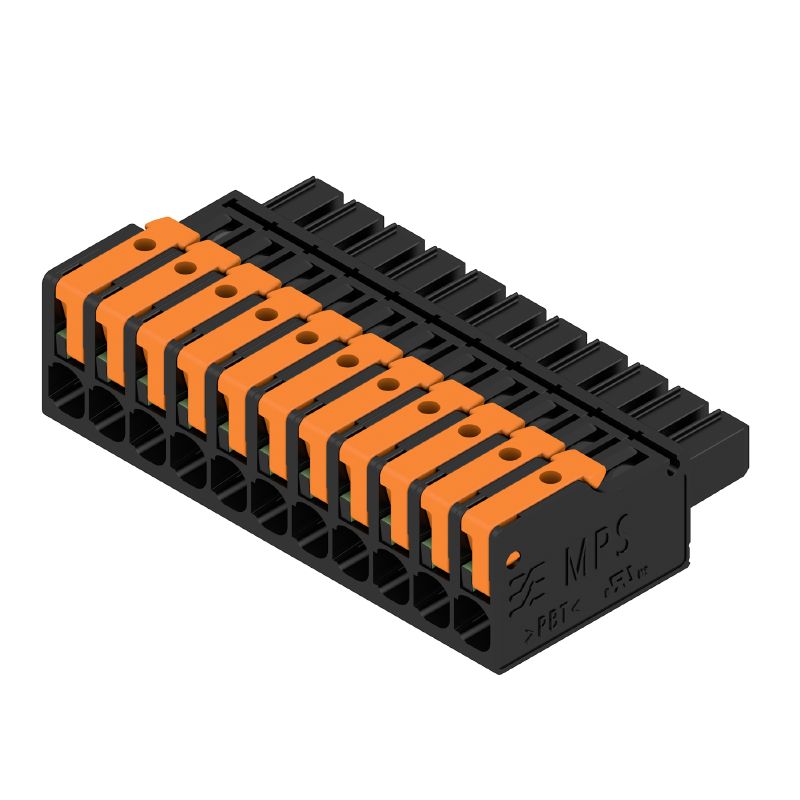

2741650000 - 5mm Pitch Female PCB Connector, 11 Poles, RoHS Compliant (Pack of 30)
2741650000 - 5mm Pitch Female PCB Connector, 11 Poles, RoHS Compliant (Pack of 30)
SKU: SKU: 2741650000 Download PDF
- 2741650000 - 5mm Pitch Female PCB Connector, 11 Poles, RoHS Compliant (Pack of 30)
- 2741650000 - 5mm Pitch Female PCB Connector, 11 Poles, RoHS Compliant (Pack of 30)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

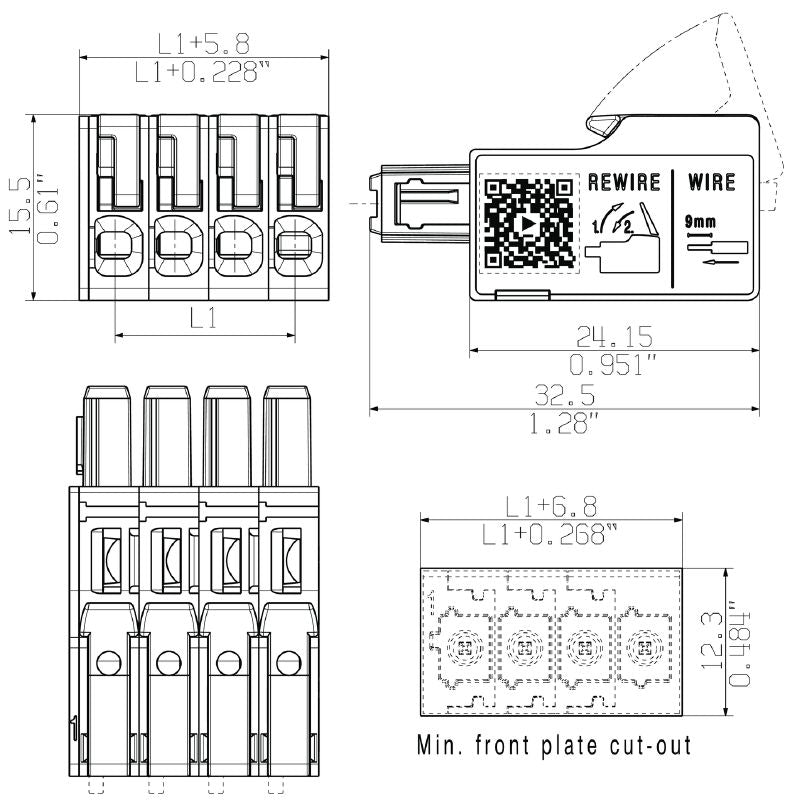

Introducing our versatile PCB plug-in female connector, engineered with an 11-pole design and a pitch of 500 mm, making it ideal for a variety of applications This connector adheres to RoHS standards and is UL certified for quality assurance With dimensions of 34 mm in depth, 155 mm in height, and 558 mm in width, it weighs approximately 27957 grams Designed for dynamic environments, it operates effectively within a temperature range of -50°C to 125°C, ensuring reliable performance in various conditions.
Features and Benefits:
•Compatible with various conductor cross-sections from 0.5 mm² to 4 mm².

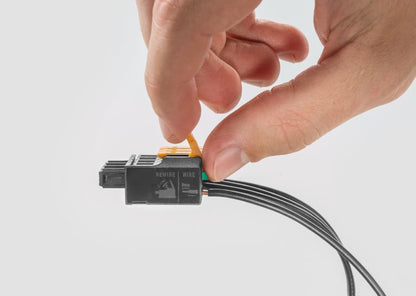

•Field connection type with snap-in lever for easy installation.
•Touch-safe protection according to DIN VDE standards.
•IP20 protection rating.
•Designed for 25 plugging cycles, offering durability.
Specifications:
| IEC Voltage Rating | 400 V / 26.8 A / 0.5 - 4 mm² |
| UL Voltage Rating | 300 V / 18.5 A / AWG 20 - AWG 12 |

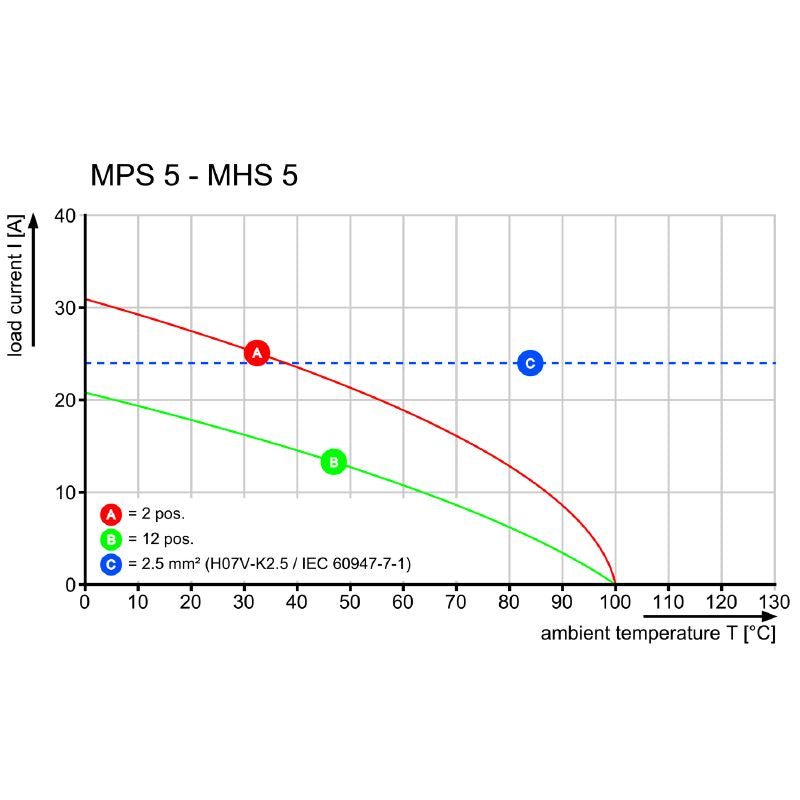

| Ambient Temperature | -50 °C…125 °C |
| Volume Resistance | ≤5 mΩ |
| Insulating Material | PBT GF |
| Flammability Rating | V-0 |
| Number of Poles | 11 |
| Contact Material | Cu-alloy |
| Protection Degree | IP20 |
| Stripping Length | 9 mm |
