8000072435 - 5-Pole 5mm Header PCB Connector for THT/THR Soldering (Pack of 20)
8000072435 - 5-Pole 5mm Header PCB Connector for THT/THR Soldering (Pack of 20)
SKU: SKU: 8000072435 Download PDF
- 8000072435 - 5-Pole 5mm Header PCB Connector for THT/THR Soldering (Pack of 20)
- 8000072435 - 5-Pole 5mm Header PCB Connector for THT/THR Soldering (Pack of 20)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

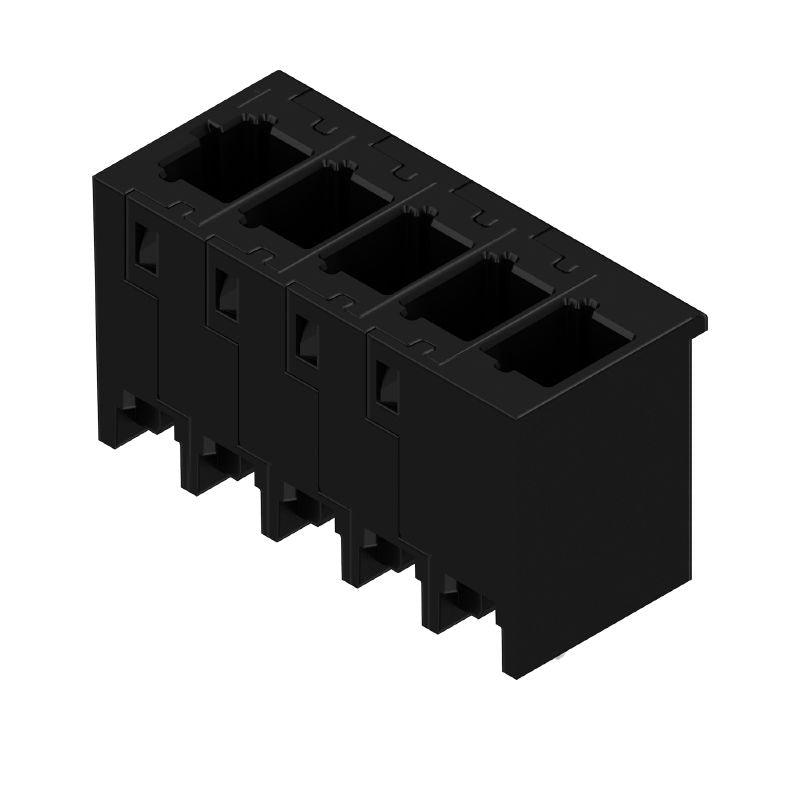

Introducing a versatile male header PCB plug-in connector, crafted for THT/THR solder connections This connector boasts a 500 mm pitch and features five poles arranged in a 180° configuration Packaged in a convenient tube, it complies with IEC standards, allowing operation at voltages up to 400 V and currents up to 253 A Under UL standards, it functions safely at a maximum of 300 V and 185 A, making it a reliable choice for your electronic projects.
Features and Benefits:
•Touch-safe protection according to DIN VDE 57 106 above the printed circuit board.
•Compliant with RoHS without exemptions.
•Moisture Level (MSL) of 1.
Specifications:

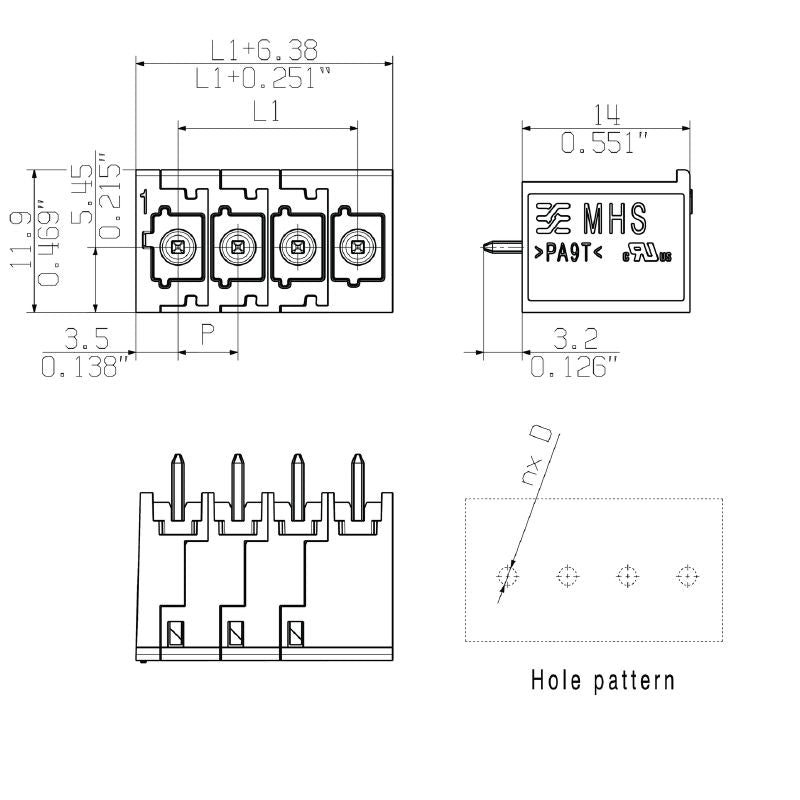

| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 26.38 mm |
| Ambient temperature | -50 °C to 125 °C |
| Rated current (min. number of poles at 20°C) | 25.3 A |
| Rated voltage | 400 V |
| Solder pin length | 3.2 mm |
| Volume resistance | ≤5 mΩ |
| Protection degree | IP20 |
| Storage temperature | -25 °C to 55 °C |
| Operating temperature | -50 °C to 100 °C |
| Creepage distance, min. | 5.4 mm |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| UL 94 flammability rating | V-0 |
