Description:

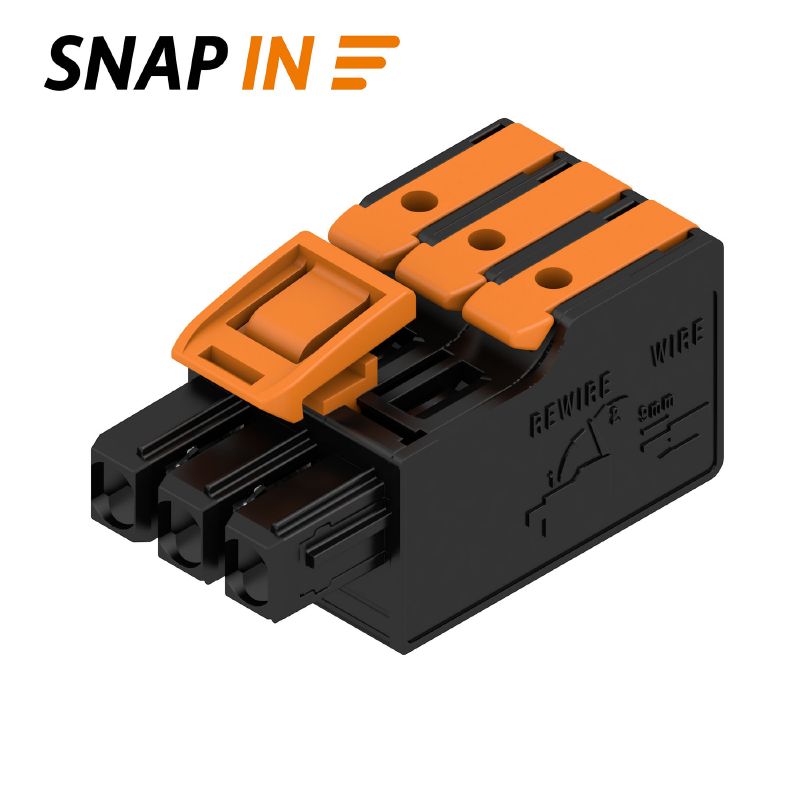

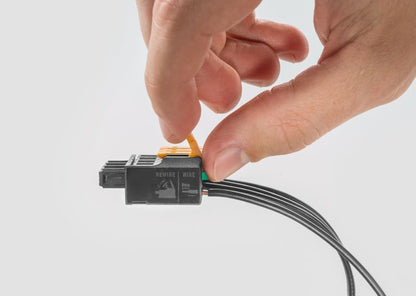

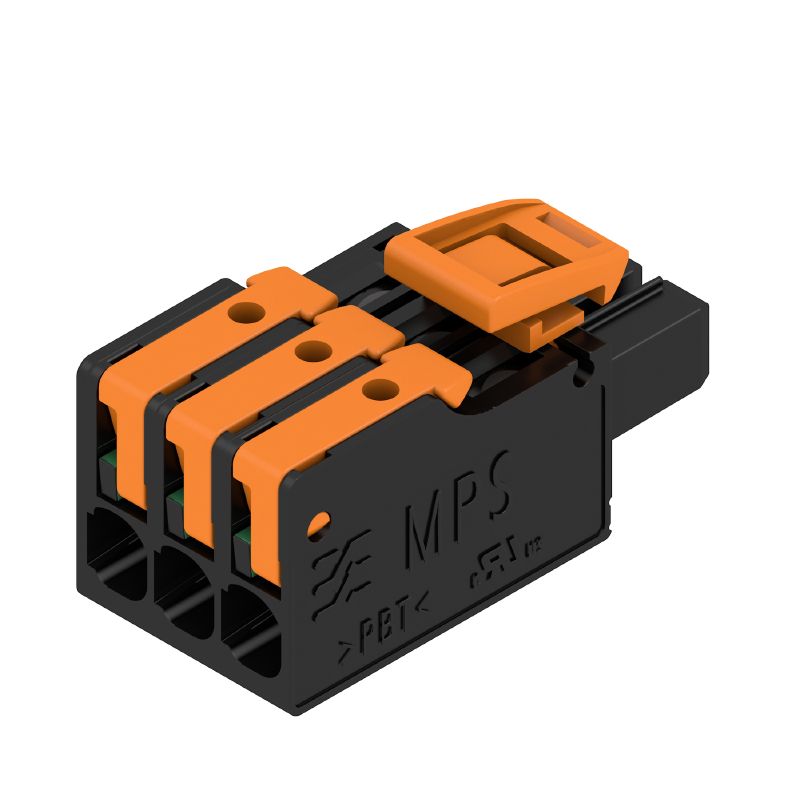

Experience reliable connectivity with this PCB plug-in female connector, featuring a 500 mm pitch and a design that includes 3 poles Its SNAP IN wire connection method ensures secure and efficient field connections, accommodating various conductor types This connector meets both IEC and UL safety standards, affirming its suitability for a range of applications.
Features and Benefits:
•UL approved with certificate No. (cURus) E60693.
•RoHS compliant without exemption.
•Can accommodate conductor cross-sections ranging from 0.34 mm² to 4 mm².
•Safe against finger contact according to DIN VDE regulations.

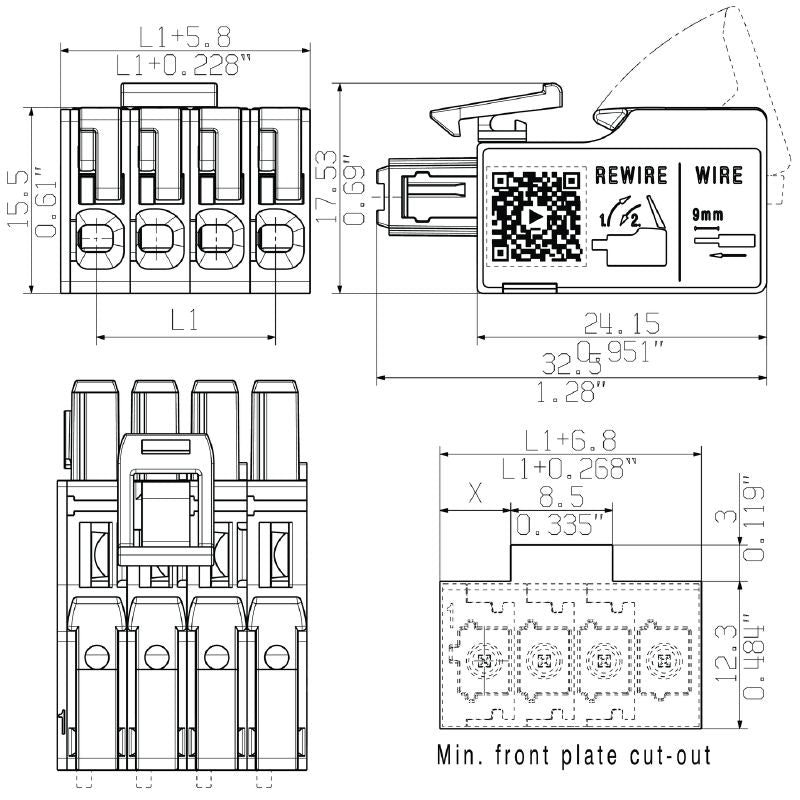

•Compact dimensions with a height of 17.5 mm, width of 15.8 mm, and depth of 34 mm.
•IP 20 protection degree.
Specifications:
| Rated voltage (IEC) | 400 V |
| Rated current | 26.8 A |
| Dimensions | 34 mm depth, 17.5 mm height, 15.8 mm width |
| Operating temperature range | -50 °C to 100 °C |
| Storage temperature range | -25 °C to 55 °C |
| Volume resistance | ≤5 mΩ |
| Number of poles | 3 |
| Pitch | 5 mm |
| Insulating material | PBT GF |
| Contact material | Cu-alloy |
| Flammability rating | UL 94 V-0 |
| Conductor outlet direction | 180° |
| Touch-safe protection | Safe from finger touch |
