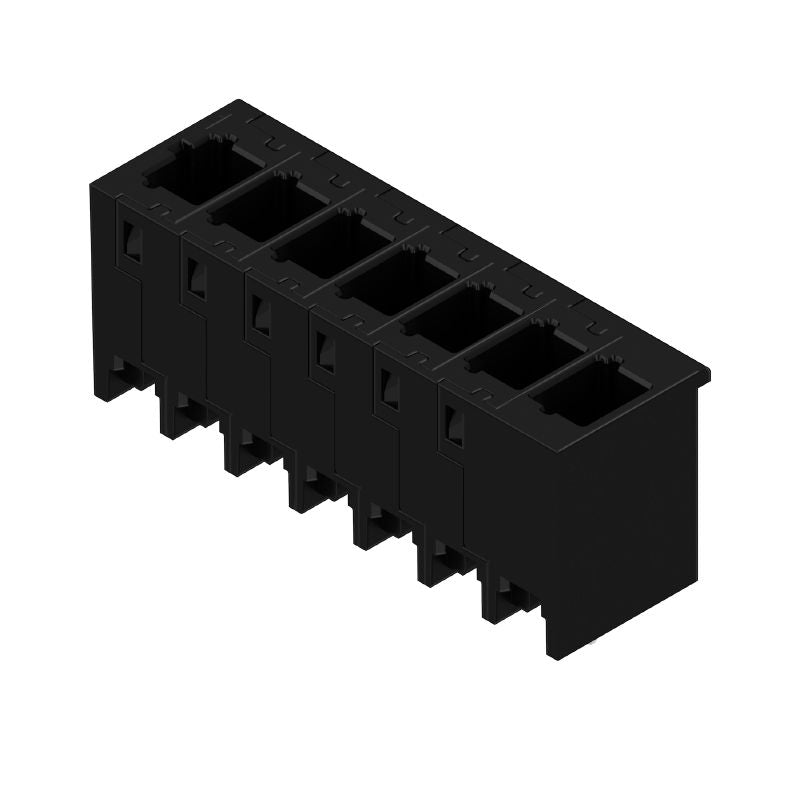

8000072450 - 5mm Male PCB Connector, 7 Poles, RoHS Compliant (Pack of 15)
8000072450 - 5mm Male PCB Connector, 7 Poles, RoHS Compliant (Pack of 15)
SKU: SKU: 8000072450 Download PDF
- 8000072450 - 5mm Male PCB Connector, 7 Poles, RoHS Compliant (Pack of 15)
- 8000072450 - 5mm Male PCB Connector, 7 Poles, RoHS Compliant (Pack of 15)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing an exceptional male header PCB plug-in connector, crafted for THT/THR solder connections With a 5 mm pitch and featuring 7 poles arranged at a precise 180° angle, this connector is well-suited for various applications Packaged conveniently in a tube, it adheres to RoHS standards and comes with multiple certifications, including UL approval, ensuring reliability and compliance in your projects.
Features and Benefits:
•Conforms without exemptions to RoHS standards.
•Has a touch-safe design according to DIN VDE standards.
•Tested according to IEC 60664-1 and IEC 61984 standards.

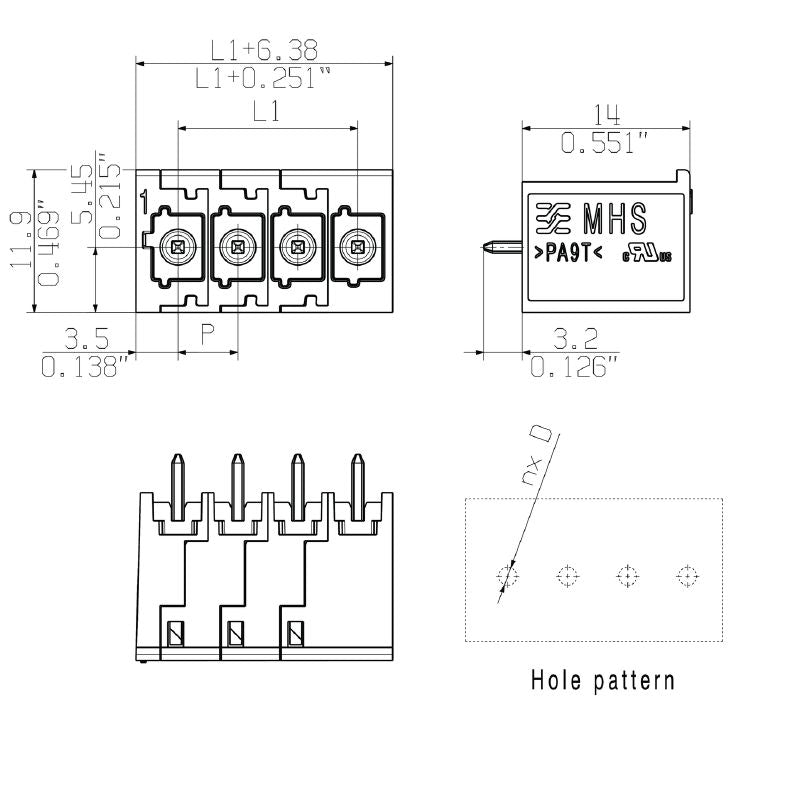

Specifications:
| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 36.38 mm |
| Ambient temperature | -50 °C…125 °C |
| Rated current (min. poles at 20°C) | 25.3 A |
| Rated voltage | 300 V |
| Protection degree | IP20 |
| Plugging cycles | ≥ 25 |
| Solder pin length | 3.2 mm |
| Insulating material | PA 9T |
| Contact base material | CuMg |
| Storage temperature (min) | -25 °C |
| Storage temperature (max) | 55 °C |
