Description:

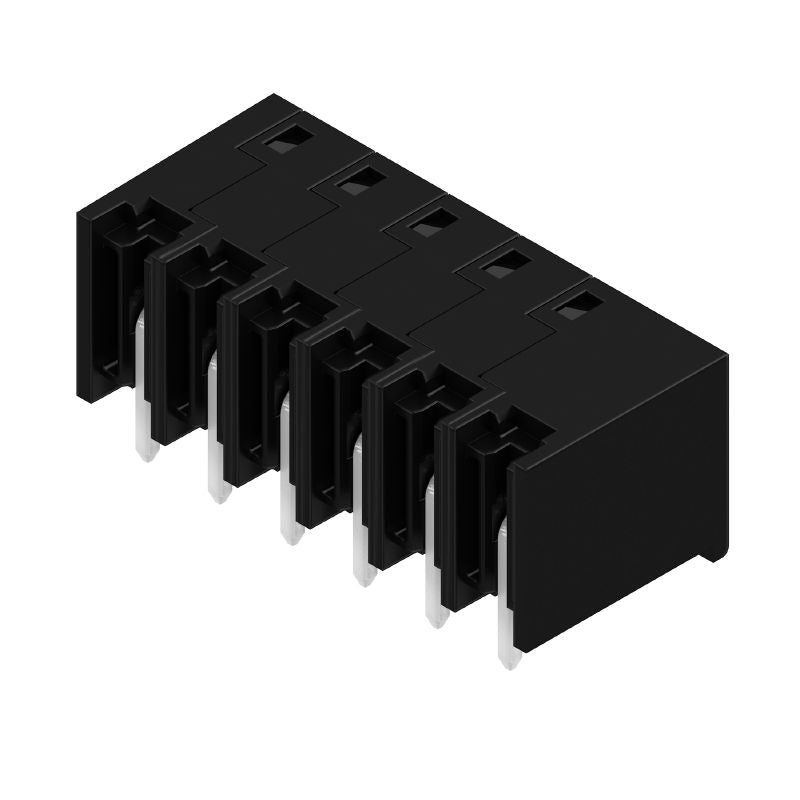

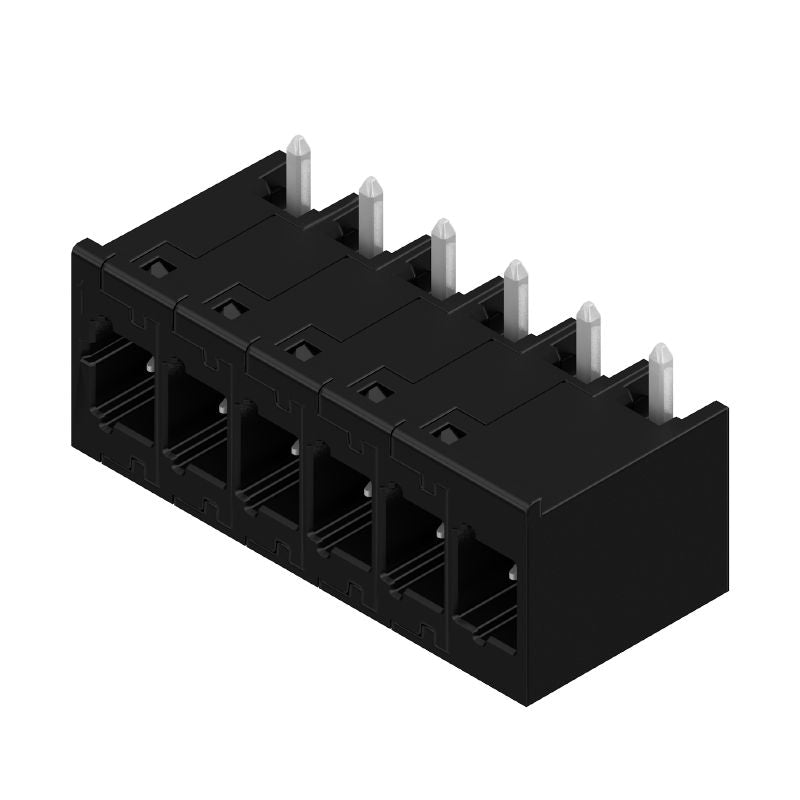

Introducing the MHS 5/06 W T3 B T male header PCB plug-in connector, expertly crafted for THT/THR solder applications With a pitch of 500 mm, this connector features 6 poles configured at a 270-degree angle, ensuring reliable performance It adheres to RoHS standards and is certified with a UL file number of E60693, making it a trusted choice for your electronic projects.
Features and Benefits:
•Compliant with RoHS without exemption.
•Touch-safe protection according to DIN VDE standards.
•Compatible with a variety of environmental conditions.
Specifications:
| Rated voltage (IEC) | 400 V |
| Rated current (IEC) | 26.8 A |
| Rated voltage (UL) | 300 V |
| Rated current (UL) | 18.5 A |
| Operating temperature range | -50 °C to 100 °C |
| Storage temperature range | -25 °C to 55 °C |
| Depth | 14 mm |
| Width | 31.38 mm |
| Height | 14.1 mm |
| Clearance, min. | 4 mm |
| Creepage distance, min. | 5.4 mm |
| Insulating material | PA 9T |
| Color | black |
| Touch-safe protection | IP 20 |
| Volume resistance | ≤5 mΩ |
| Plugging cycles | ≥ 25 |
| Material properties | {'Insulating material group': 'I', 'Comparative Tracking Index (CTI)': '≥ 600', 'UL 94 flammability rating': 'V-0'} |
