Description:

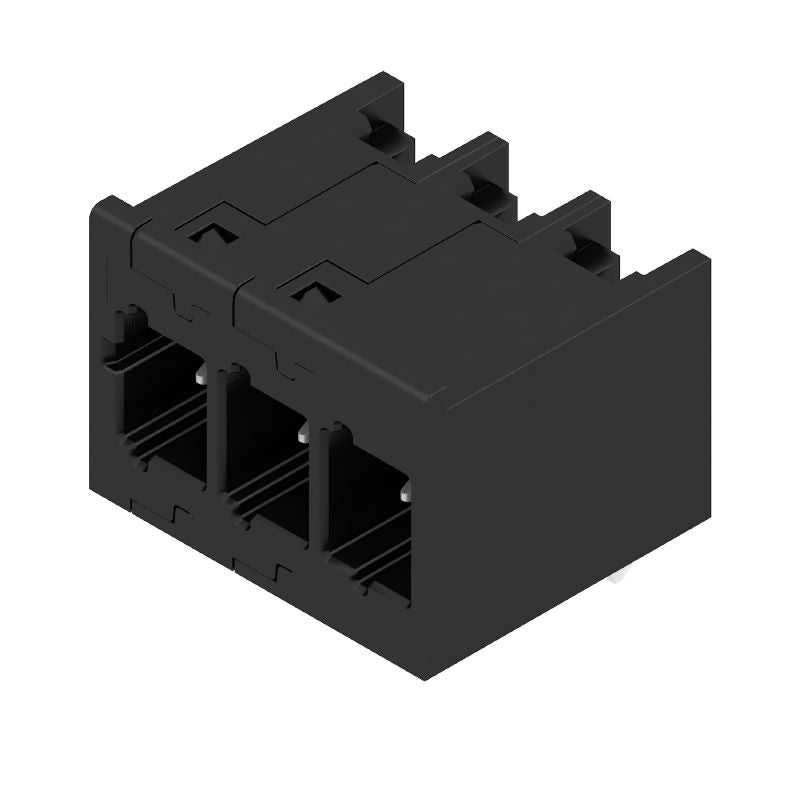

Introducing the MHS 5/03 H T3 B T PCB plug-in connector, tailored for male header applications This component is designed with through-hole technology (THT/THR) and features a 500 mm pitch, accommodating three poles at a convenient 90° orientation Each connector comes packaged in tubes, facilitating streamlined delivery It meets RoHS compliance and is UL certified with a specific certificate number.
The connector is engineered to function safely within a temperature range of -50 °C to 125 °C, making it suitable for various electrical applications.
Features and Benefits:
•Compliant with RoHS standards.
•UL certification indicating safe usage.
•Touch-safe protection above the printed circuit board.
•Suitable for various board connections.
•Used in PCB connections for various electronic devices.
Specifications:
| Pitch in mm (P) | 5 mm |
| Number of poles | 3 |
| Solder pin length (l) | 3.2 mm |
| Rated voltage | 400 V |
| Rated current | 26.8 A |
| IP Protection Degree | IP20 |
| Material | PA 9T |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 55 °C |
| Volume resistance | ≤5 mΩ |
| Tinning type | matt |
