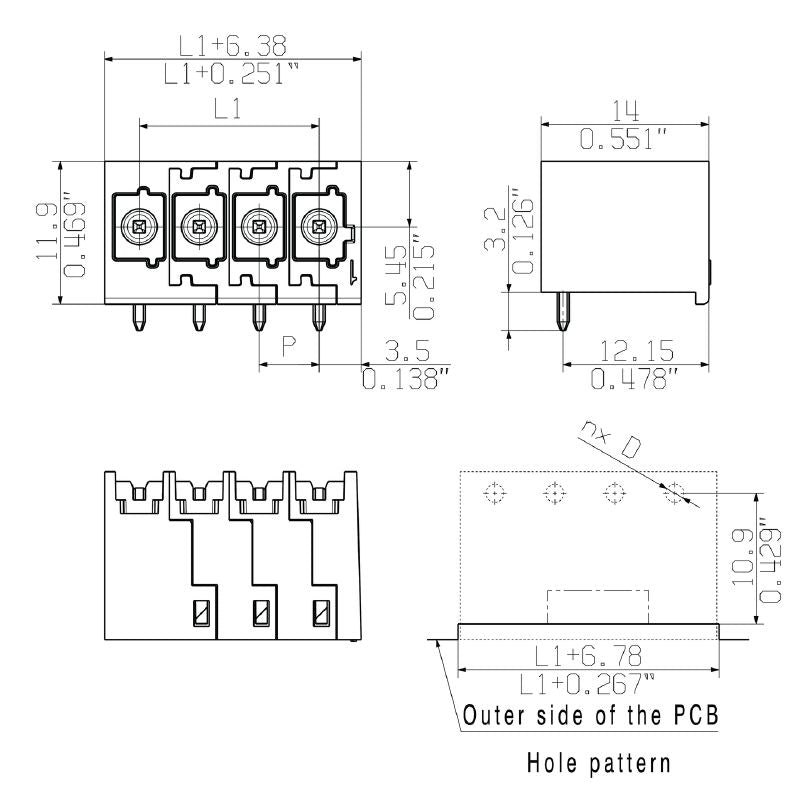

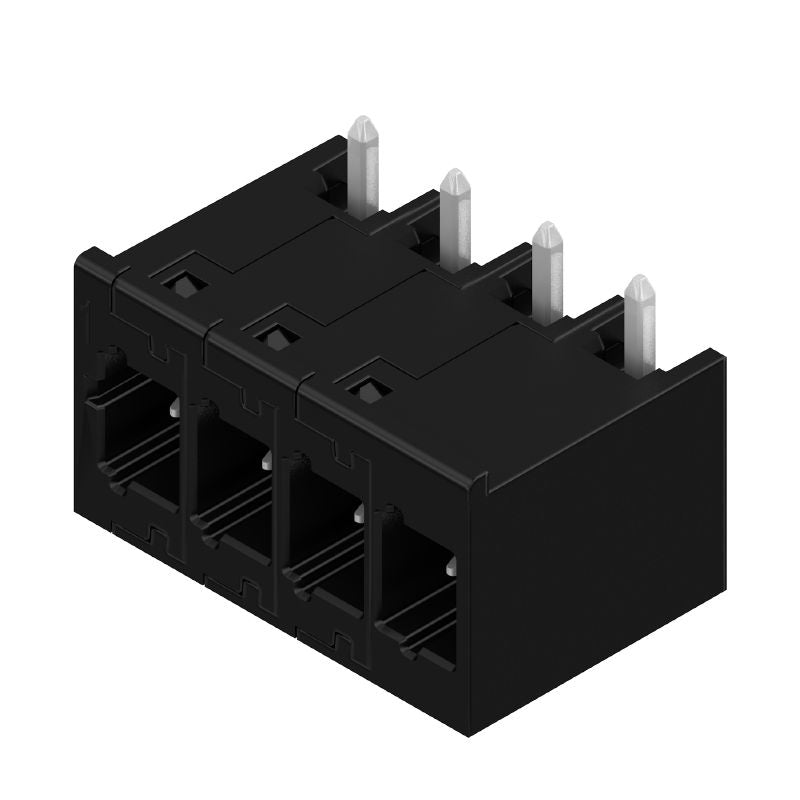

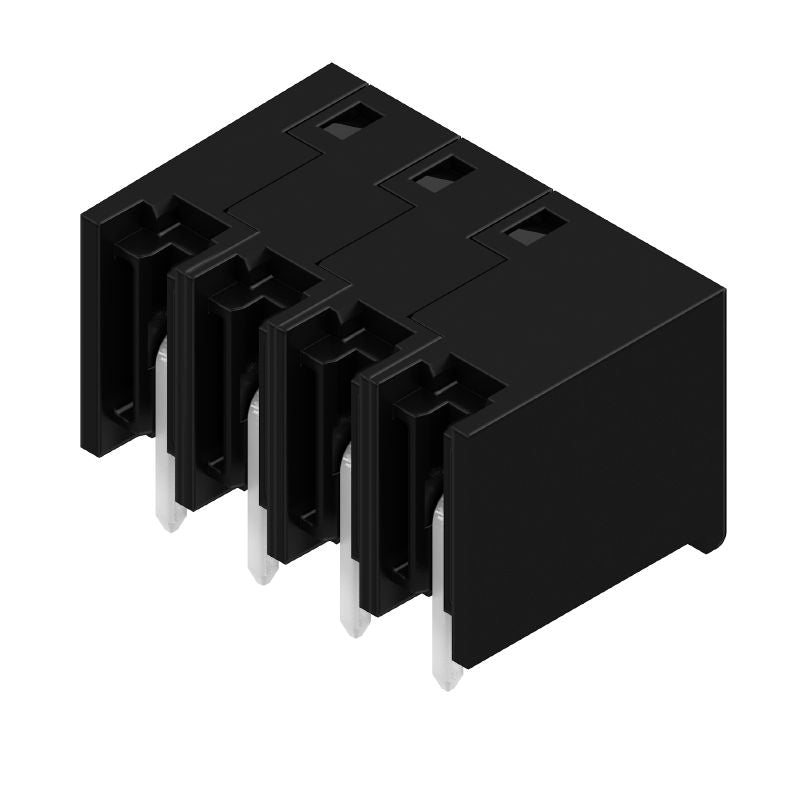

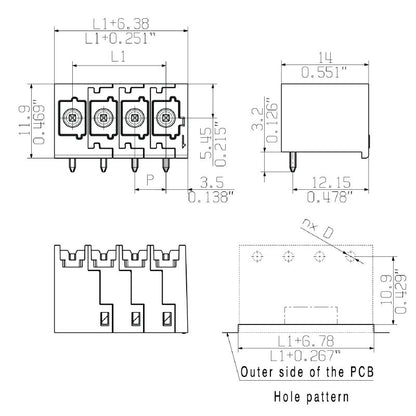

8000072506 - 5mm 4-Pole Male PCB Connector, 270° Angle, 25 Pack (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the MHS 5/04 W T3 B T, a precision-engineered male header PCB plug-in connector, perfect for THT/THR solder applications With a compact 5 mm pitch and 4 poles, this connector features a unique 270° outgoing angle for enhanced versatility Compliant with RoHS regulations, it’s suitable for a wide range of environments and exhibits impressive temperature tolerance, operating effectively between -50 °C and 125 °C.

Each package contains 25 connectors housed in a convenient tube Rated to handle 400 V and 268 A per IEC standards, and 300 V with 185 A as per UL specifications, this connector is a reliable choice for your electronic projects.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Ambient temperature range of -50 °C to 125 °C.

•Touch-safe according to DIN VDE 57 106 above the printed circuit board.

•Plugging cycles of at least 25.

•Storage temperature ranging from -25 °C to 55 °C.

•Operating temperature from -50 °C to 100 °C.

•Insulating material PA 9T with a Comparative Tracking Index of 600.

Specifications:
