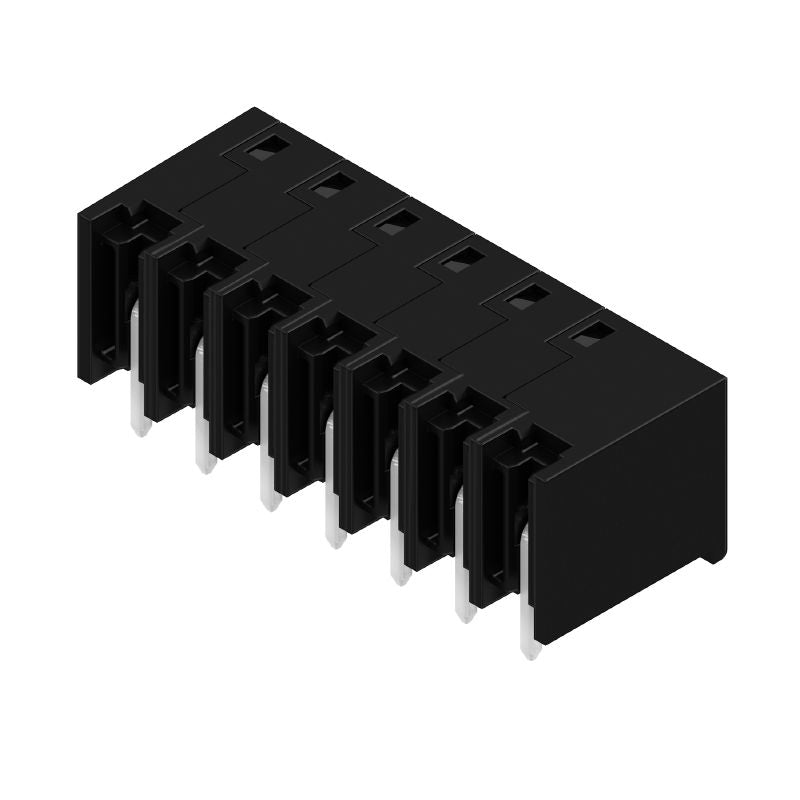

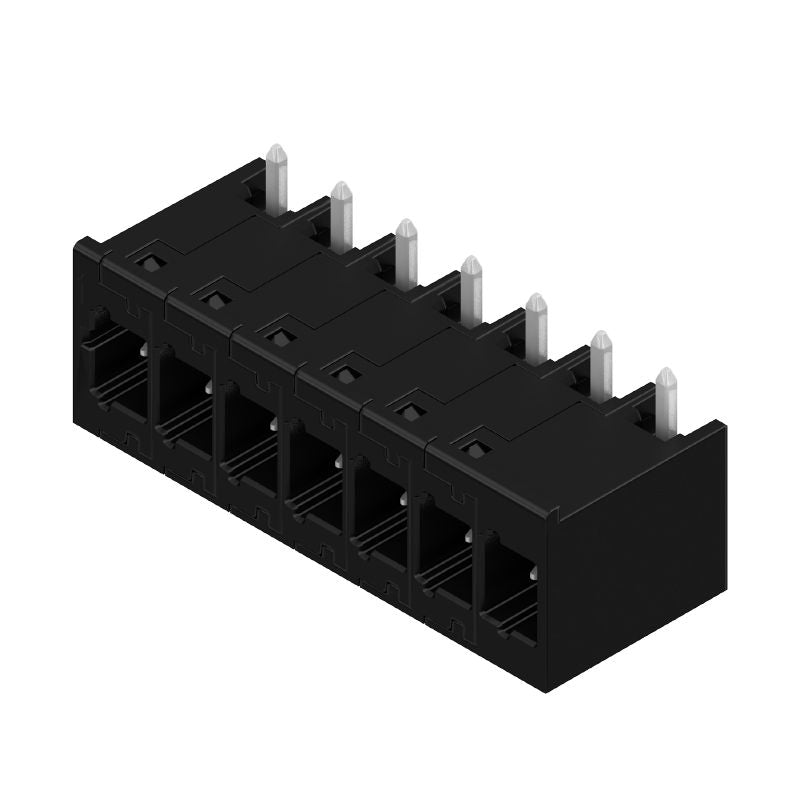

8000072510 - 7-Pole 5mm Male PCB Connector, 270° Angle (Pack of 15)
8000072510 - 7-Pole 5mm Male PCB Connector, 270° Angle (Pack of 15)
SKU: SKU: 8000072510 Download PDF
- 8000072510 - 7-Pole 5mm Male PCB Connector, 270° Angle (Pack of 15)
- 8000072510 - 7-Pole 5mm Male PCB Connector, 270° Angle (Pack of 15)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Explore the versatility of this male header PCB plug-in connector, designed with THT/THR solder connections and a 500 mm pitch Comprising 7 poles arranged at a 270° angle, this connector is packaged in a convenient tube for easy handling It's compliant with RoHS standards, ensuring safety and environmental responsibility, while delivering solid performance parameters that meet IEC specifications for rated voltages and currents.
Ideal for a wide range of applications, this connector promises reliability and efficiency.
Features and Benefits:
•Touch-safe protection according to DIN VDE standards.
•IP20 protection degree.
•Compliant with RoHS without any exemptions.
•Compatible with a wide range of temperature conditions.
•Using high-quality CuMg contact base material.

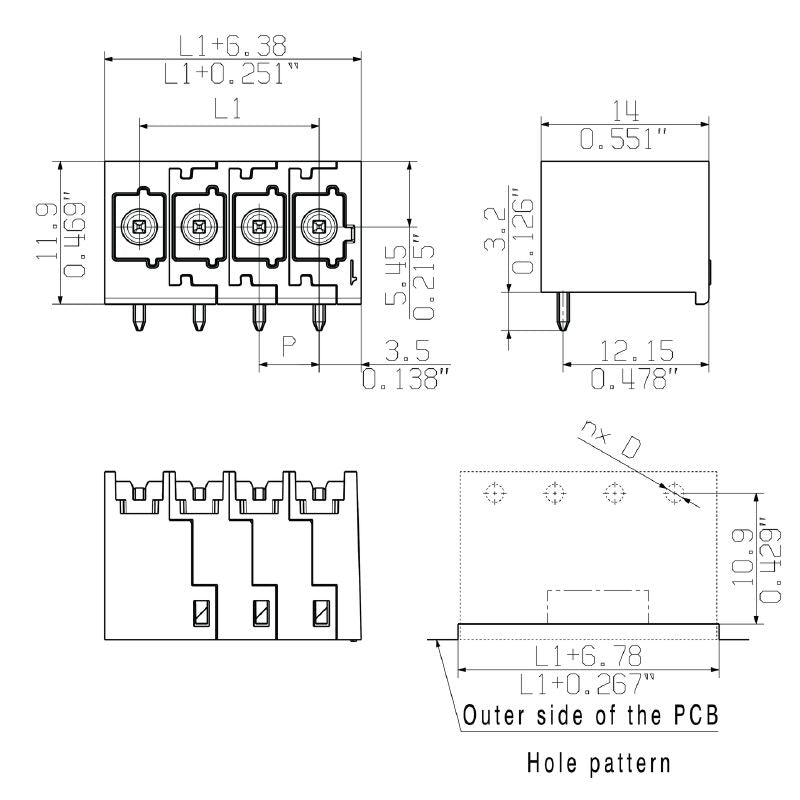

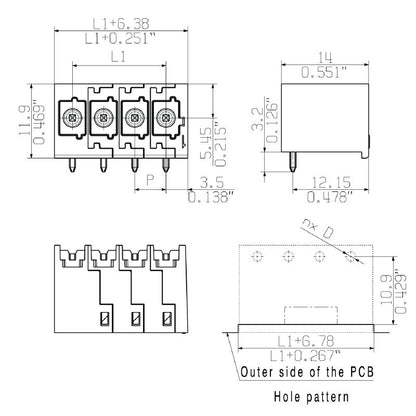

Specifications:
| Depth | 14 mm |
| Height | 14.1 mm |
| Width | 36.38 mm |
| Ambient temperature | -50 °C…125 °C |
| Rated voltage | 400 V |
| Rated current | 26.8 A |
| Solder pin length | 3.2 mm |
| Material | PA 9T |
| Color | black |
| Storage temperature | -25 °C to 55 °C |
| Operating temperature | -50 °C to 100 °C |
| Volume resistance | ≤5 mΩ |
| Plugging cycles | ≥ 25 |
