Description:

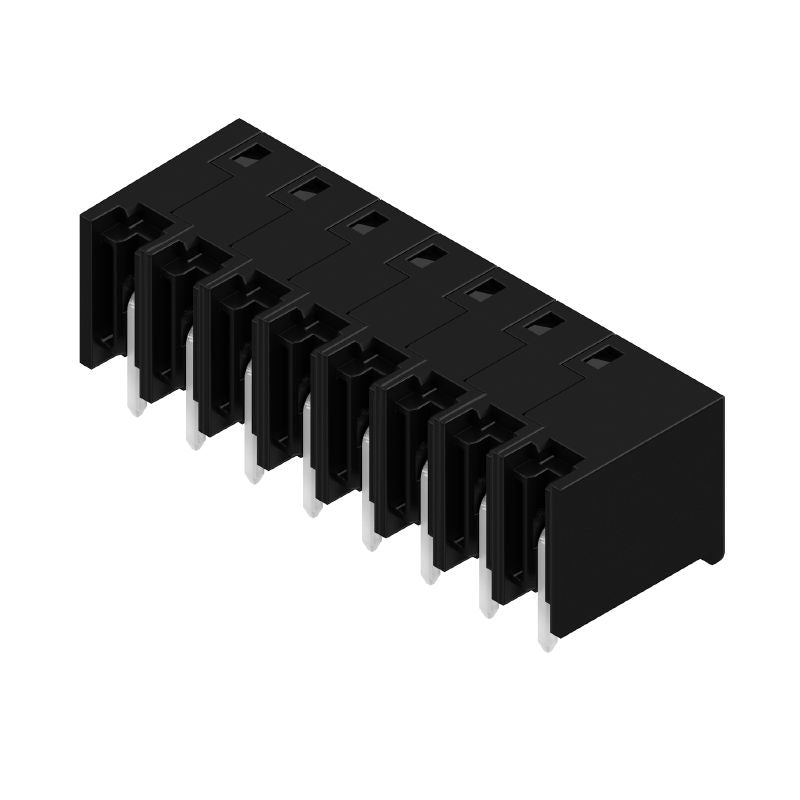

Introducing the MHS 5/08 W T3 B T, a robust male header PCB connector ideal for through-hole soldering applications This connector features an 8-pole configuration with a 5 mm pitch, allowing for reliable connections at a 270° angle It adheres to international standards including IEC 60664-1 and IEC 61984, ensuring quality and safety Additionally, it complies with RoHS regulations, and for added convenience, each unit is supplied in tubes.
Features and Benefits:
•Touch-safe protection above the printed circuit board.
•Compliant with international recognized standards and norms.
•Low volume resistance, ensuring reliable connections.
•Durable construction with a rated lifespan of over 25 plugging cycles.

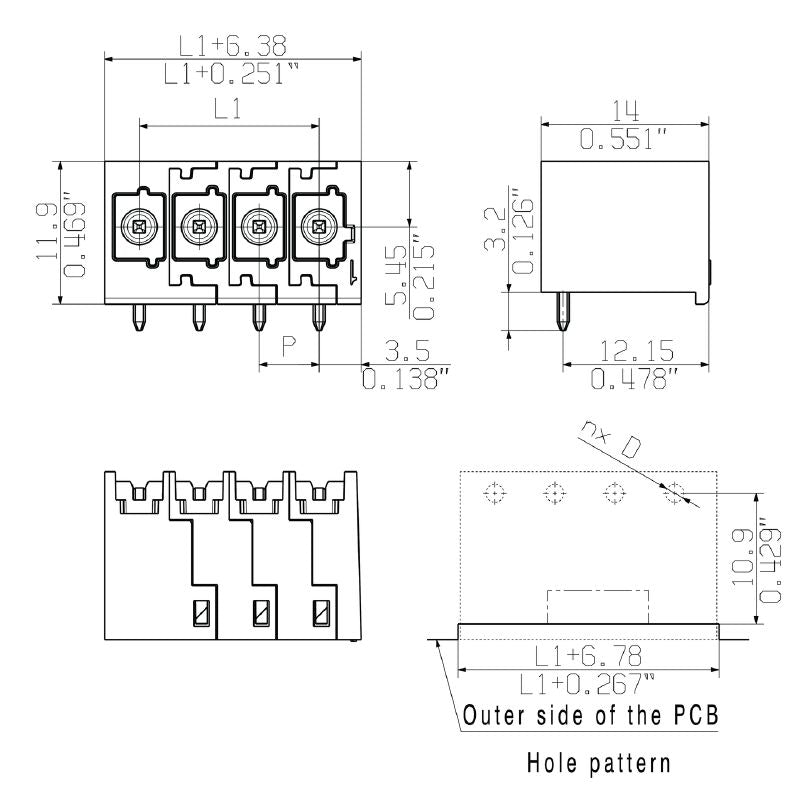

Specifications:
| Pitch in mm (P) | 5 mm |
| Number of poles | 8 |
| Depth | 14 mm |
| Height | 14.1 mm |
| Width | 41.38 mm |
| Ambient temperature | -50 °C…125 °C |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated current, max. number of poles (Tu=20°C) | 19.7 A |
| Contact base material | CuMg |
| Insulating material | PA 9T |
| Storage temperature, min. | -25 °C |
| Creepage distance, min. | 5.4 mm |
| Rated data acc. to UL 1059 | cURus |
