2741470000 - 5mm 8-Pole Male PCB Connector, 90° THT/THR Design (Pack of 13)
2741470000 - 5mm 8-Pole Male PCB Connector, 90° THT/THR Design (Pack of 13)
SKU: SKU: 2741470000 Download PDF
- 2741470000 - 5mm 8-Pole Male PCB Connector, 90° THT/THR Design (Pack of 13)
- 2741470000 - 5mm 8-Pole Male PCB Connector, 90° THT/THR Design (Pack of 13)
Couldn't load pickup availability
Description:

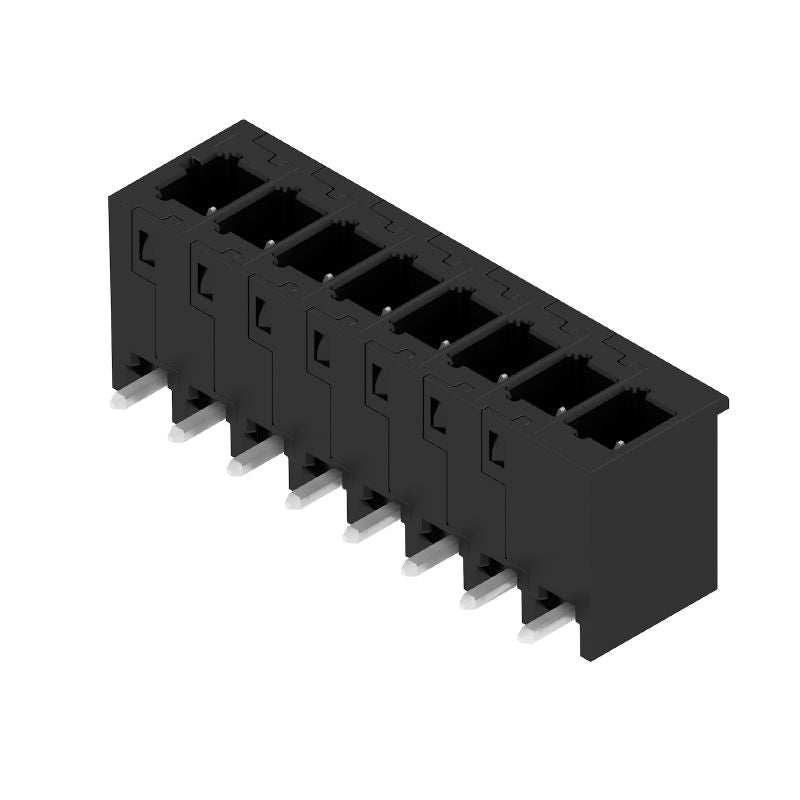

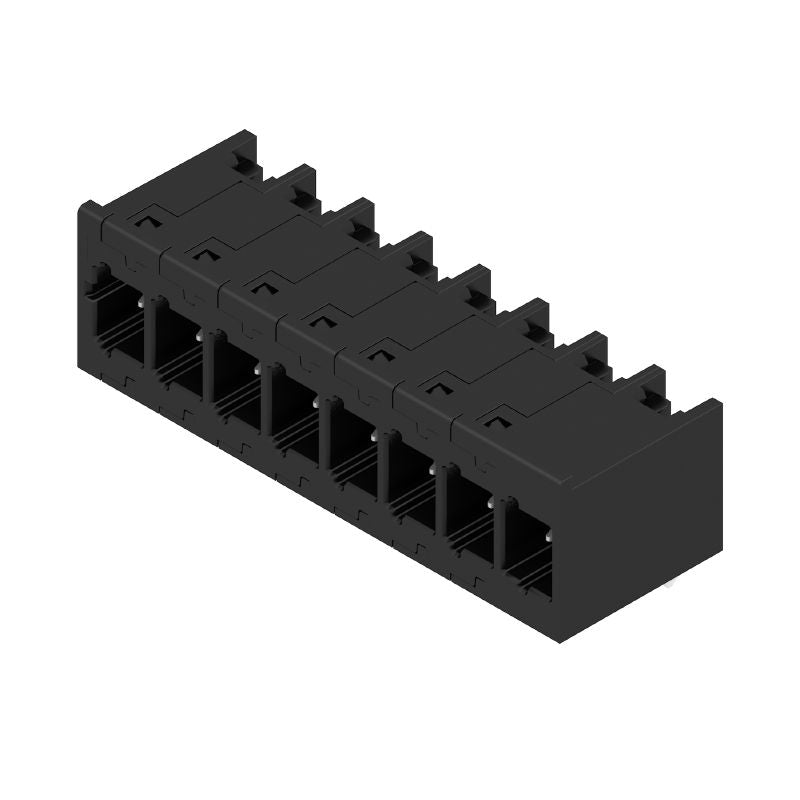

Introducing the MHS 5/08 H T3 B T, a reliable PCB plug-in male connector designed for efficient THT/THR solder connectivity With a compact pitch of 500 mm and featuring 8 poles positioned at a convenient 90° angle, this connector is packaged in a convenient tube It meets IEC standards with a voltage rating of 400 V and supports a maximum current of 268 A, while also conforming to UL specifications with a voltage of 300 V and a current rating of 18.
5 A, ensuring versatility and safety for various applications.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Touch-safe protection according to DIN VDE standards.
•Easy mounting onto PCBs with THT/THR solder connection.
•Designed for a wide range of temperatures from -50 °C to 125 °C.
•Volume resistance is ≤5 mΩ.
•Durable with a minimum of 25 plugging cycles.
Specifications:

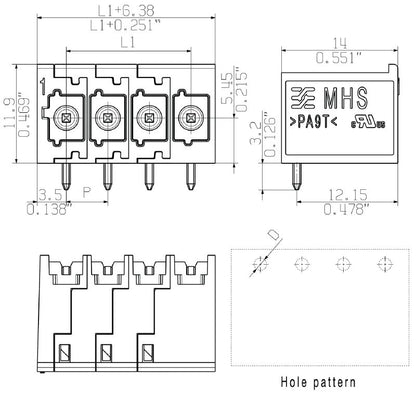

| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 41.38 mm |
| Ambient temperature | -50 °C…125 °C |
| Insulating material | PA 9T |
| Rated current, min number of poles (Tu=20°C) | 26.8 A |
| Rated current, max number of poles (Tu=20°C) | 19.7 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Plugging force/pole, max | 8.5 N |
| Pulling force/pole, max | 8.5 N |
| Solder pin dimensions | 1.0 x 1.0 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Creepage distance, min | 5.4 mm |
| Clearance distance, min | 4 mm |
| Storage temperature, min | -25 °C |
| Storage temperature, max | 55 °C |
