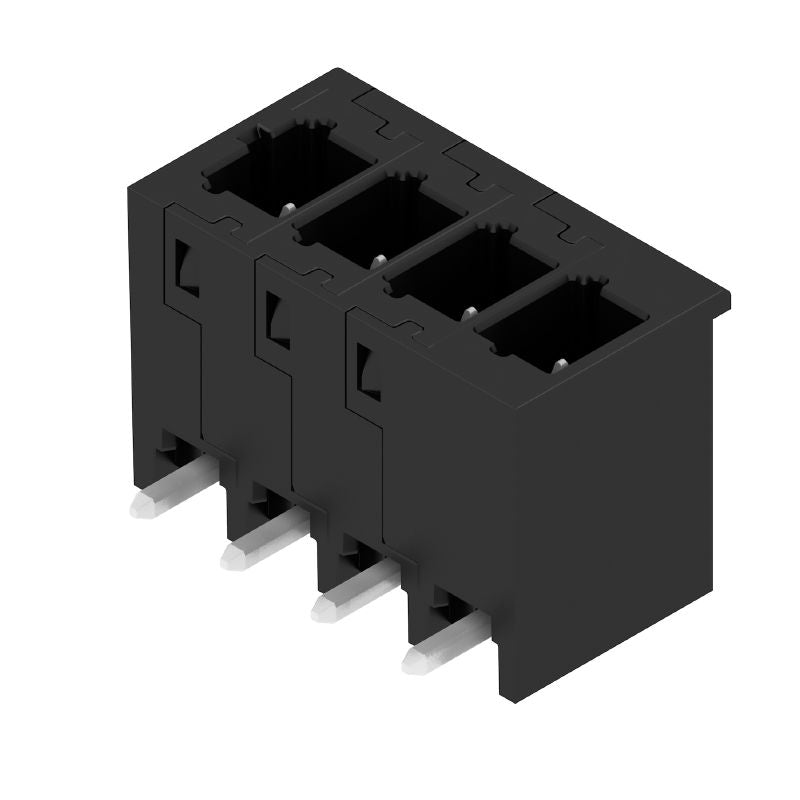

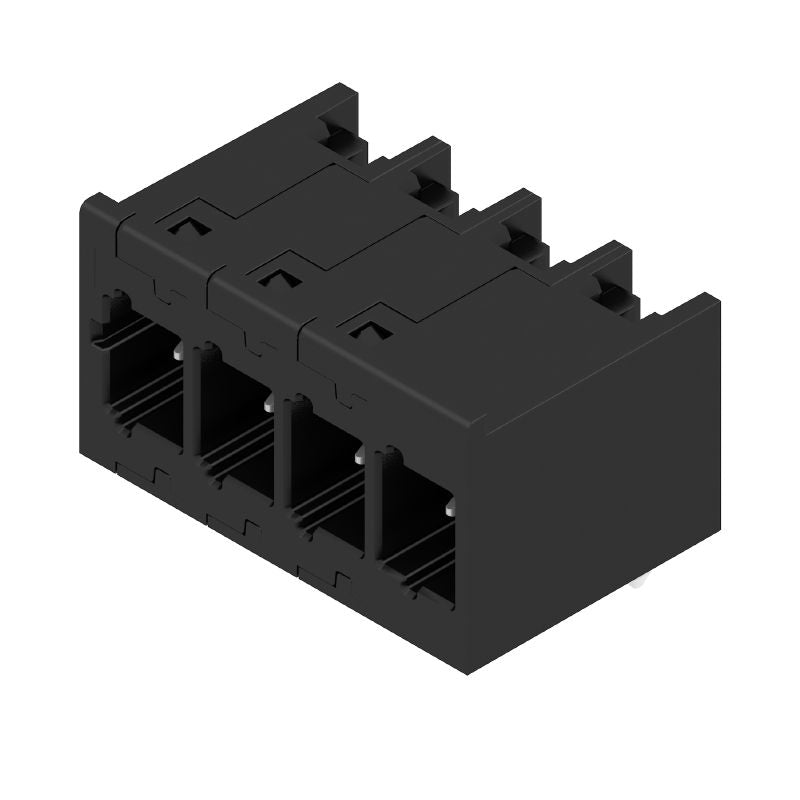

2741430000 - 5mm Male PCB Connector, 4 Poles, 90° THT Solder (Pack of 25)
2741430000 - 5mm Male PCB Connector, 4 Poles, 90° THT Solder (Pack of 25)
SKU: SKU: 2741430000 Download PDF
- 2741430000 - 5mm Male PCB Connector, 4 Poles, 90° THT Solder (Pack of 25)
- 2741430000 - 5mm Male PCB Connector, 4 Poles, 90° THT Solder (Pack of 25)
Couldn't load pickup availability
Description:
Introducing the MHS 5/04 H T3 B T connector, a reliable PCB plug-in solution featuring a male header specifically engineered for THT/THR solder applications With a pitch of 500 mm and 4 poles configured at a 90° angle, this connector is designed for optimal performance It supports an IEC rating of 400 V and a current rating of 268 A, while also complying with UL standards of 300 V and 185 A Packaged in a convenient tube, it adheres to RoHS regulations with no exemptions, making it a compliant choice for your electronic projects.
Features and Benefits:

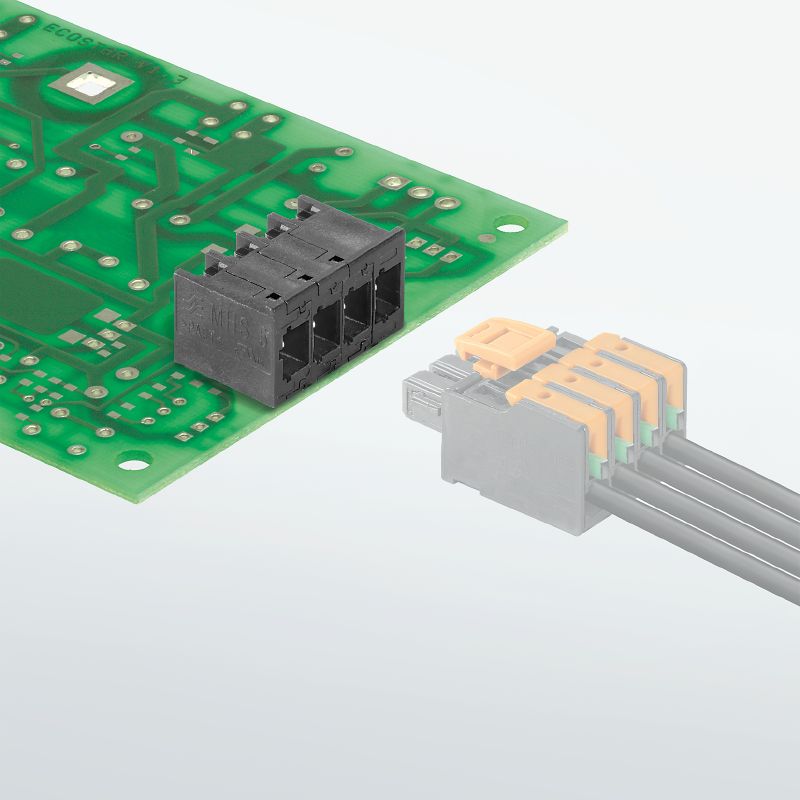

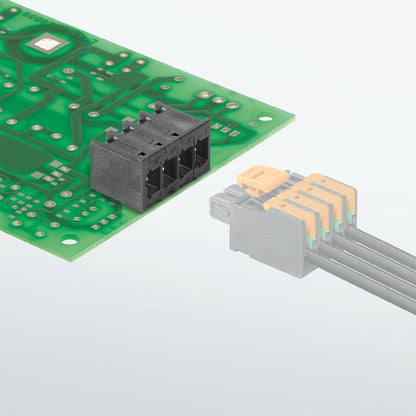

•Designed for board connections with THT/THR solder options.
•Suitable for a wide range of applications due to its ambient temperature range of -50 °C to 125 °C.
•Touch-safe protection according to DIN VDE standards.
•Meets RoHS compliance status without exemptions.
•Developed in accordance with international recognized standards and norms.
Specifications:

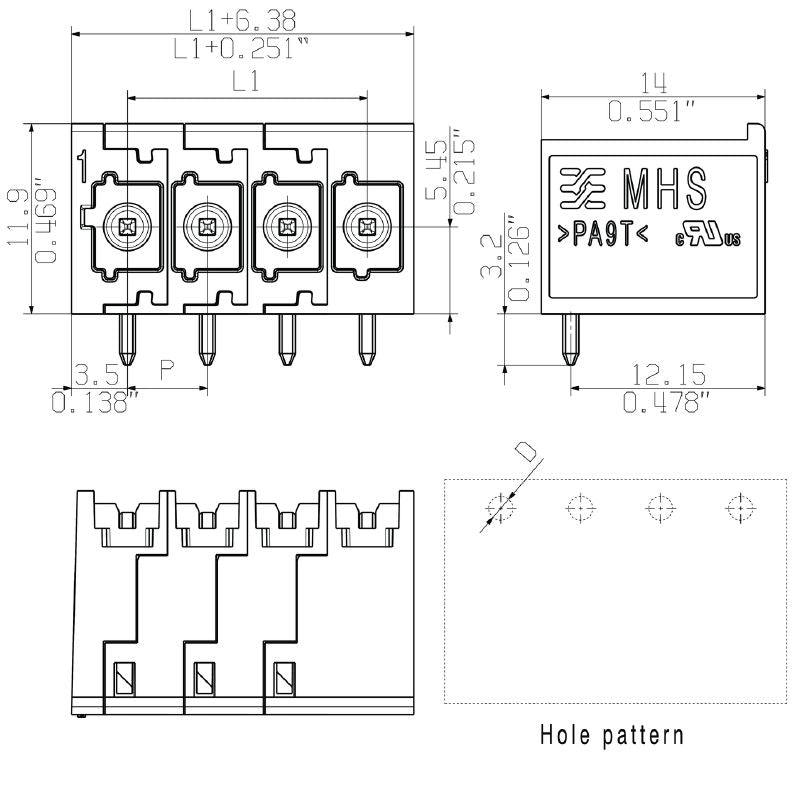

| Pitch in mm (P) | 5 mm |
| Number of poles | 4 |
| Solder pin length (l) | 3.2 mm |
| IP protection degree | IP20 |
| Volume resistance | ≤5 mΩ |
| Plugging cycles | ≥ 25 |
| Rated current, max. number of poles (Tu=20°C) | 19.7 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Creepage distance, min. | 5.4 mm |
| Ambient temperature | -50 °C to 125 °C |
| Insulating material | PA 9T |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 55 °C |
