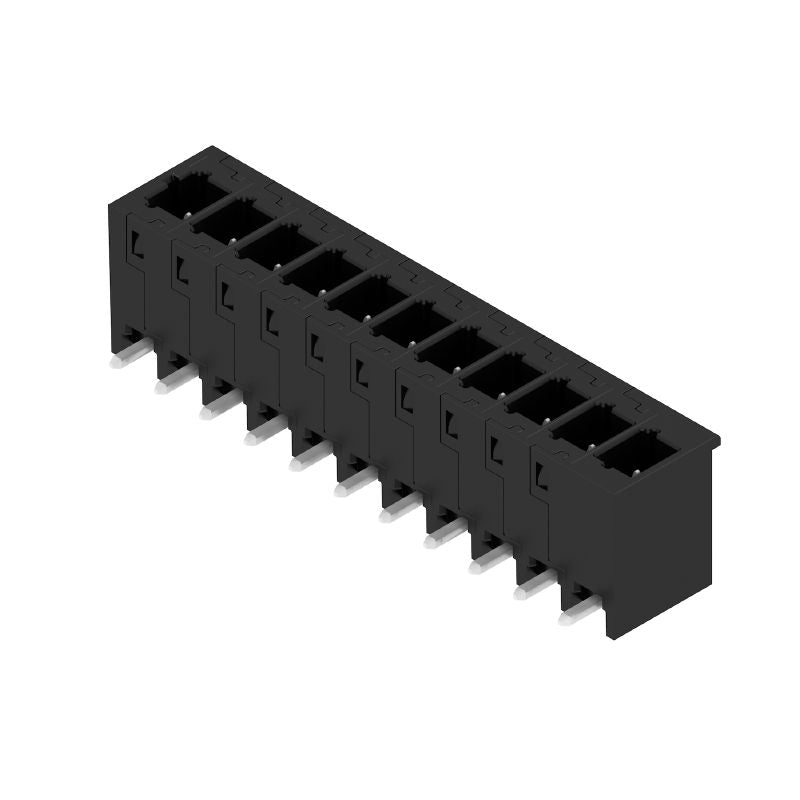

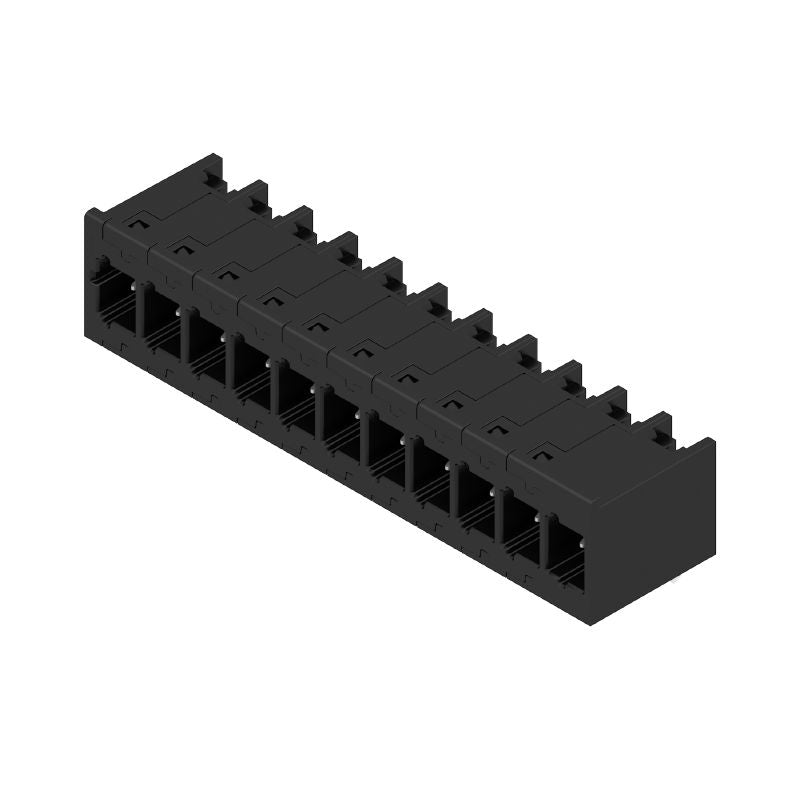

2741500000 - 11-Pole 5mm PCB Connector THT/THR, 90° Angle (Pack of 9)
2741500000 - 11-Pole 5mm PCB Connector THT/THR, 90° Angle (Pack of 9)
SKU: SKU: 2741500000 Download PDF
- 2741500000 - 11-Pole 5mm PCB Connector THT/THR, 90° Angle (Pack of 9)
- 2741500000 - 11-Pole 5mm PCB Connector THT/THR, 90° Angle (Pack of 9)
Couldn't load pickup availability
Description:
Experience dependable connectivity with this male header PCB plug-in connector, featuring a reliable THT/THR solder connection at a 500 mm pitch Designed with 11 poles in a 90° configuration, this connector is compliant with ROHS standards and bears UL Certificate No E60693 It’s an excellent choice for a variety of electrical and electronic applications that require a secure board connection.
Features and Benefits:
•Compliant with ROHS regulations.
•UL certified with E60693.
•Insulating material made of PA 9T.
•Touch-safe protection according to DIN VDE 57 106.
•Moisture Level (MSL) rating of 1.
•UL 94 flammability rating of V-0.
Specifications:
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 18.5 A |
| Pitch in mm (P) | 5 mm |
| Number of poles | 11 |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Rated current, min. number of poles (Tu=20°C) | 26.8 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Plugging cycles | ≥ 25 |
| Protection degree | IP20 |
| Volume resistance | ≤5 mΩ |
| Solder pin dimensions | 1.0 x 1.0 mm |
