Description:

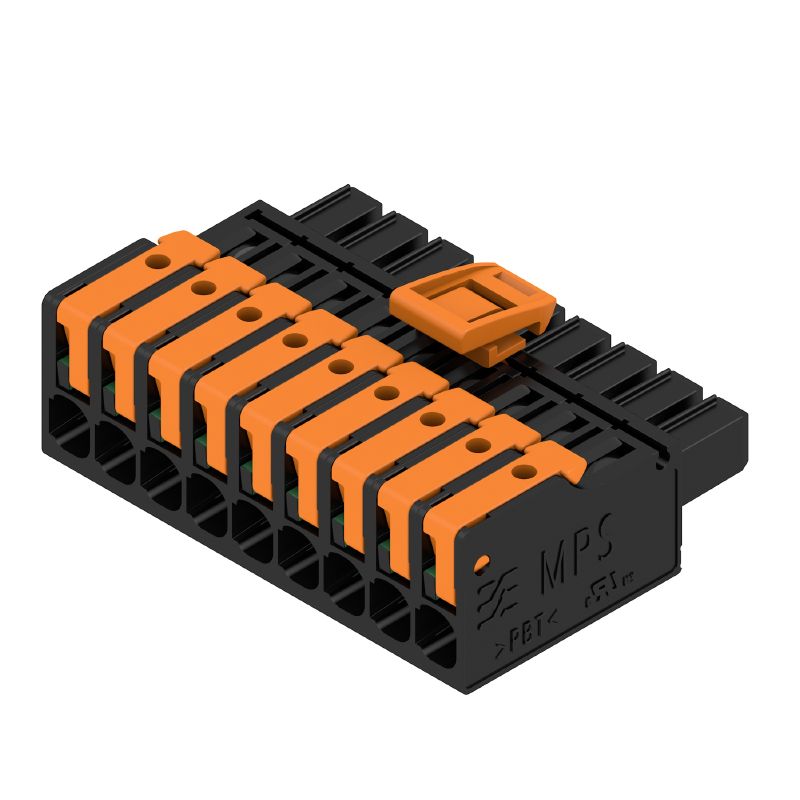

Introducing the MPS 5/09 S F5 TN B B, a reliable female plug PCB connector that boasts a 500 mm pitch and features 9 poles configured at a 180° angle This connector can handle a voltage rating of 400 V and a maximum current of 268 A in line with IEC standards, while also being UL certified for 300 V at 185 A Crafted in a robust housing, it meets RoHS compliance for eco-friendliness Offering versatile wire connection options, it includes a SNAP IN mechanism equipped with a lever for easy installation.
Constructed from durable PBT GF insulation, this connector functions efficiently within a temperature range of -50 °C to 125 °C, making it suitable for a variety of applications.
Features and Benefits:
•Field connection type.

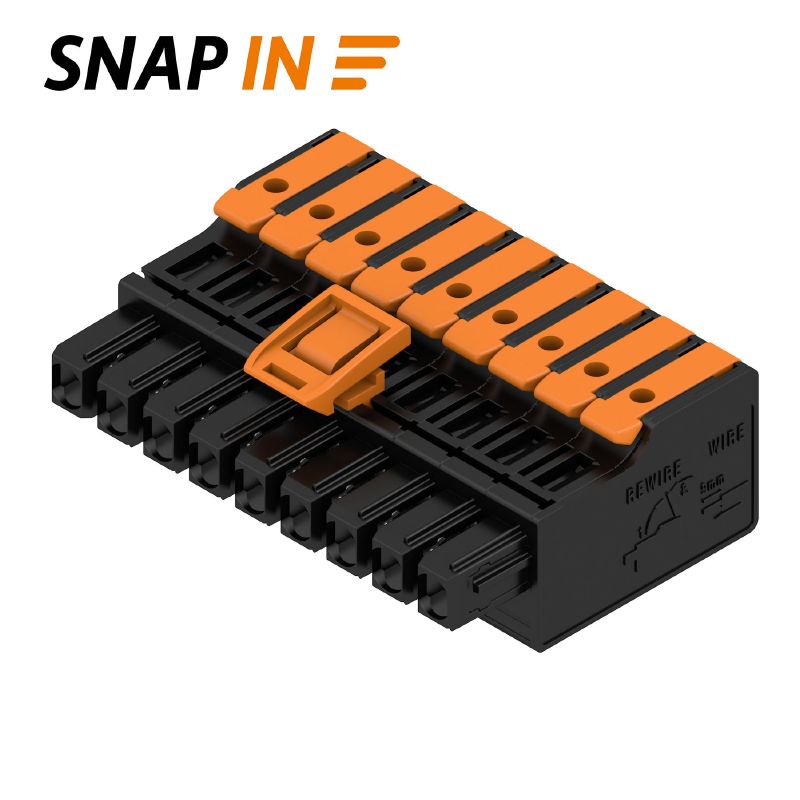

•SNAP IN connection with lever.
•Touch-safe protection according to DIN VDE 57 106.
•IP20 protection degree.
•Available in black color.
Specifications:
| IEC Rated Voltage | 400 V |
| IEC Rated Current | 26.8 A |
| UL Rated Voltage | 300 V |
| UL Rated Current | 18.5 A |
| Pitch | 5 mm |
| Number of Poles | 9 |

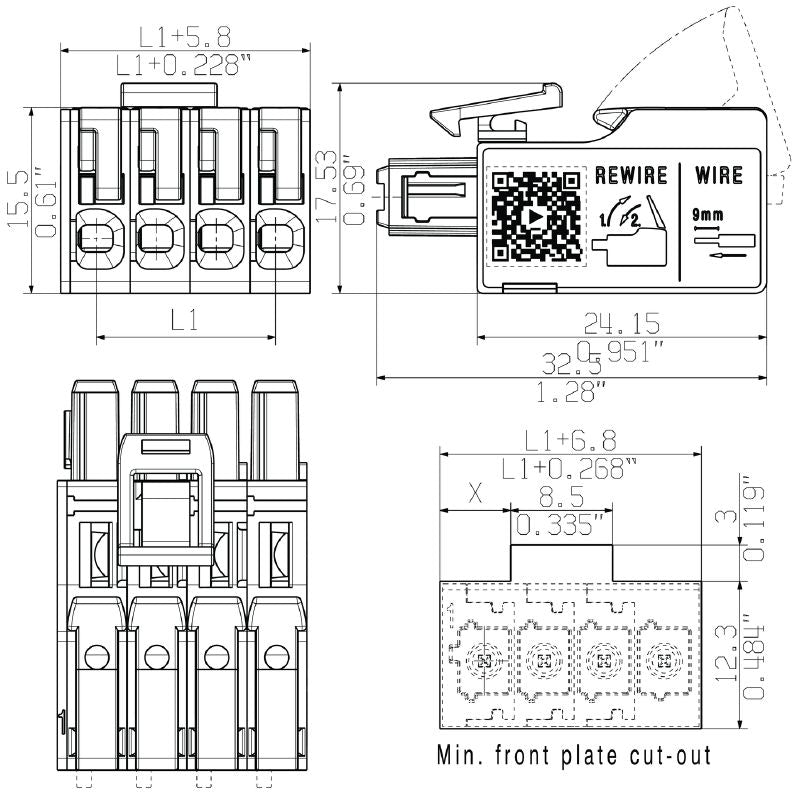

| Dimensions | 34 mm x 17.5 mm x 45.8 mm |
| Ambient Temperature | -50 °C...125 °C |
| Stripping Length | 9 mm |
| Plugging Cycles | 25 |
| Material | PBT GF |
| Insulating Material Group | I |
| Volume Resistance | ≤5 mΩ |
| Flammability Rating | V-0 |
