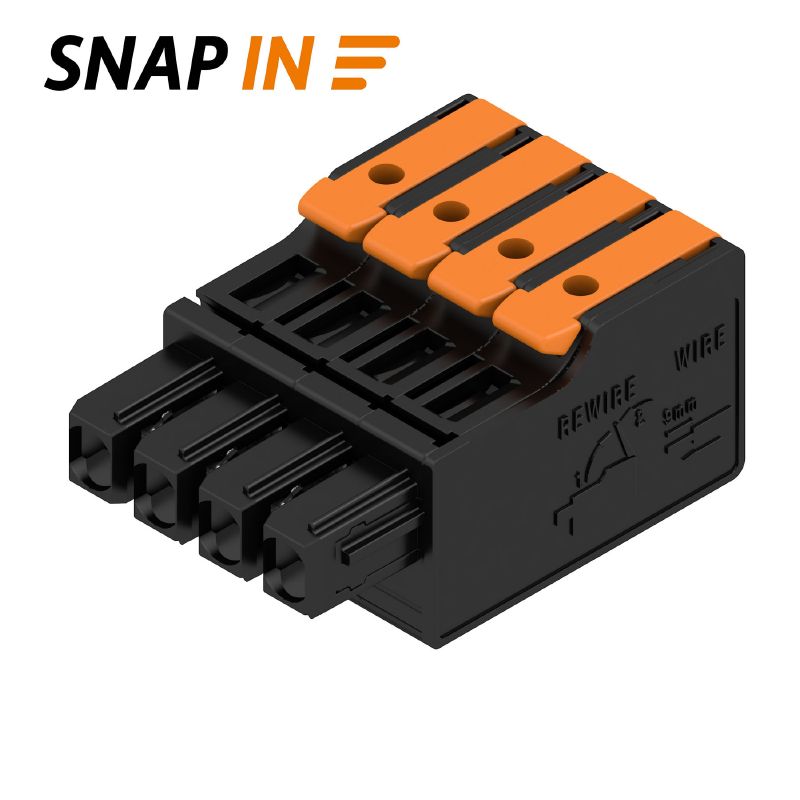

2790410000 - 5mm Female PCB Connector, 4 Poles, 400V, 26.8A Rating (Pack of 84)
2790410000 - 5mm Female PCB Connector, 4 Poles, 400V, 26.8A Rating (Pack of 84)
SKU: SKU: 2790410000 Download PDF
- 2790410000 - 5mm Female PCB Connector, 4 Poles, 400V, 26.8A Rating (Pack of 84)
- 2790410000 - 5mm Female PCB Connector, 4 Poles, 400V, 26.8A Rating (Pack of 84)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a reliable PCB plug-in connector tailored for female connections With a pitch of 500 mm, this connector supports 4 poles, making it versatile for a wide range of electrical applications Engineered for robust and secure connections, it meets IEC standards, boasting a voltage rating of 400 V and a current capability of 268 A It accommodates wire sizes from 05 to 4 mm² and has a UL rating for compatibility up to 300 V with a maximum current of 18.
5 A This product is conveniently packaged in a compact box containing 84 connectors, ensuring you have plenty on hand for your projects.
Features and Benefits:
•Compliant with RoHS and REACH standards.
•Touch-safe protection according to DIN VDE.

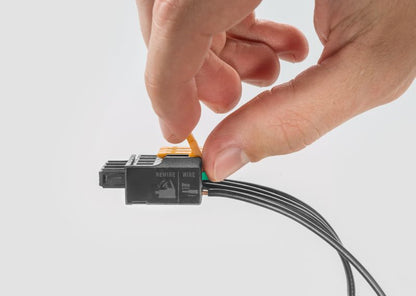

•Employs a SNAP IN wire connection method for easy installation.
•Compact design for efficient space utilization on PCB.
Specifications:
| Pitch in mm (P) | 5 mm |
| Number of poles | 4 |

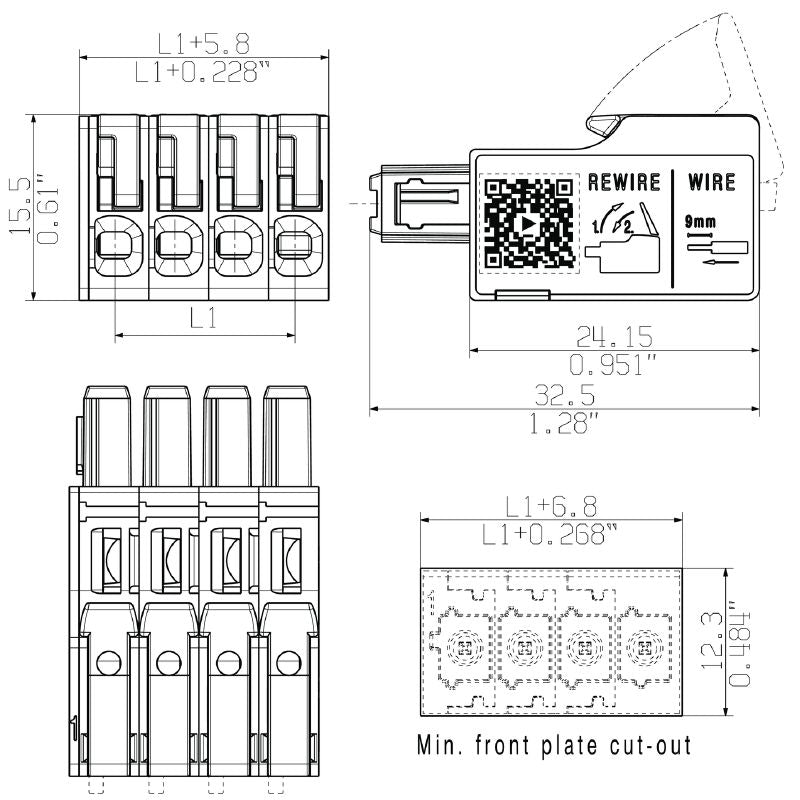

| Dimensions | {'Depth': '34 mm', 'Height': '15.5 mm', 'Width': '20.8 mm'} |
| Ambient temperature range | -50 °C to 125 °C |
| Insulating material | PBT GF |
| Color | black |
| Operating temperature range | -50 °C to 100 °C |
| Volume resistance | ≤5 mΩ |
| Touch-safe protection degre | IP20 |
| Clamping range | 0.34 mm² to 4 mm² |
| UL voltage rating | 300 V |
| Plugging cycles | ≥ 25 |
