8000072454 - 5mm 9-Pole Male PCB Connector for 400V Applications (Pack of 11)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

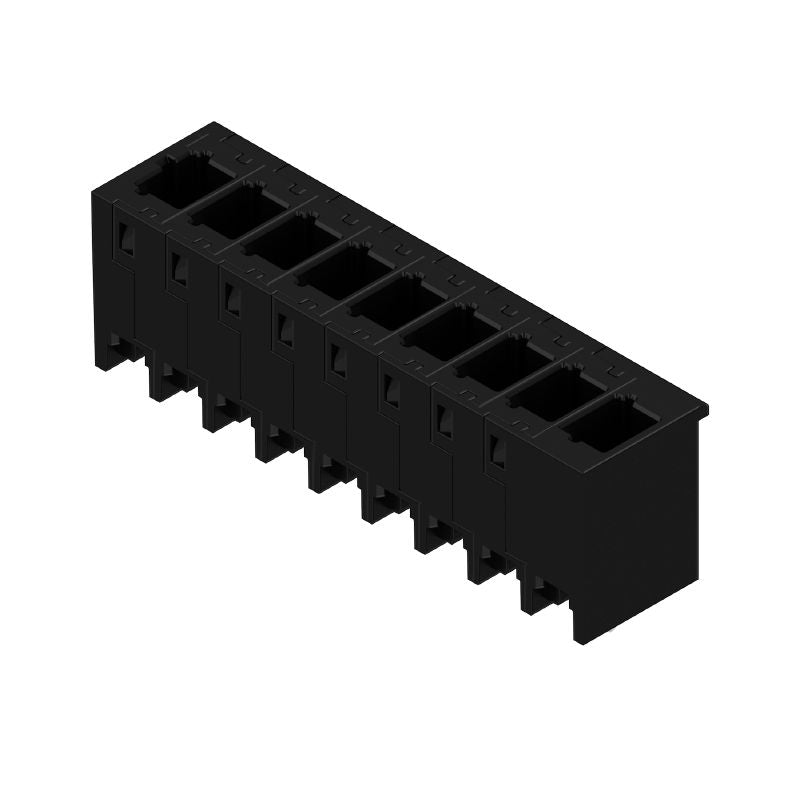

Introducing the MHS 5/09 V T3 B T, a robust male header PCB plug-in connector specially designed for through-hole (THT/THR) solder applications With a 5 mm pitch and 9 poles positioned at a 180° angle, this connector is engineered for superior performance It boasts an IEC voltage rating of 400 V along with a current capacity of 253 A, while also maintaining a UL rating of 300 V and 185 A Conveniently packaged in a tube, it offers a reliable connection for your electronic projects.

Features and Benefits:

•Complies with RoHS standards without exemption.

•Operating temperature range from -50 °C to 125 °C.

•Touch-safe protection according to DIN VDE standards.

•Net weight of 7.336 g.

•Suitable for a variety of applications requiring secure board connections.

Specifications:
