Description:

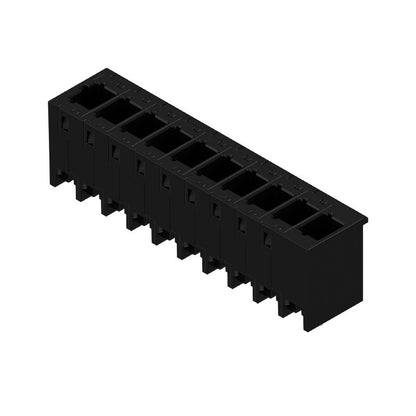

Introducing this male header PCB plug-in connector, expertly crafted for THT/THR solder connections With a 500 mm pitch and 10 poles, this connector is engineered at a 180° angle for optimal space efficiency It meets RoHS standards and is UL certified, boasting an impressive maximum current rating of 253 A and a voltage rating of 400 V Packaged conveniently in a tube, this connector is an excellent choice for a wide range of electrical applications.
Features and Benefits:
•Compliant with RoHS without exemption.
•Touch-safe protection according to DIN VDE standards.
•High moisture resistance with a MSL of 1.
•Low volume resistance of ≤5 mΩ.
•Rated for at least 25 plugging cycles.
•Versatile ambient temperature range of -50 °C to 125 °C.
•Insulating material made from PA 9T.
Specifications:
| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 51.38 mm |
| Pitch | 5 mm |
| Number of poles | 10 |
| Rated voltage | 300 V |
| Rated current | 18.5 A |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 55 °C |
| Creepage distance, min. | 5.4 mm |
| Clearance, min. | 4 mm |
