2741580000 - 5mm Pitch PCB Connector with 4 Poles, 400V, 26.8A (Pack of 84)
2741580000 - 5mm Pitch PCB Connector with 4 Poles, 400V, 26.8A (Pack of 84)
SKU: SKU: 2741580000 Download PDF
- 2741580000 - 5mm Pitch PCB Connector with 4 Poles, 400V, 26.8A (Pack of 84)
- 2741580000 - 5mm Pitch PCB Connector with 4 Poles, 400V, 26.8A (Pack of 84)
Couldn't load pickup availability
Description:

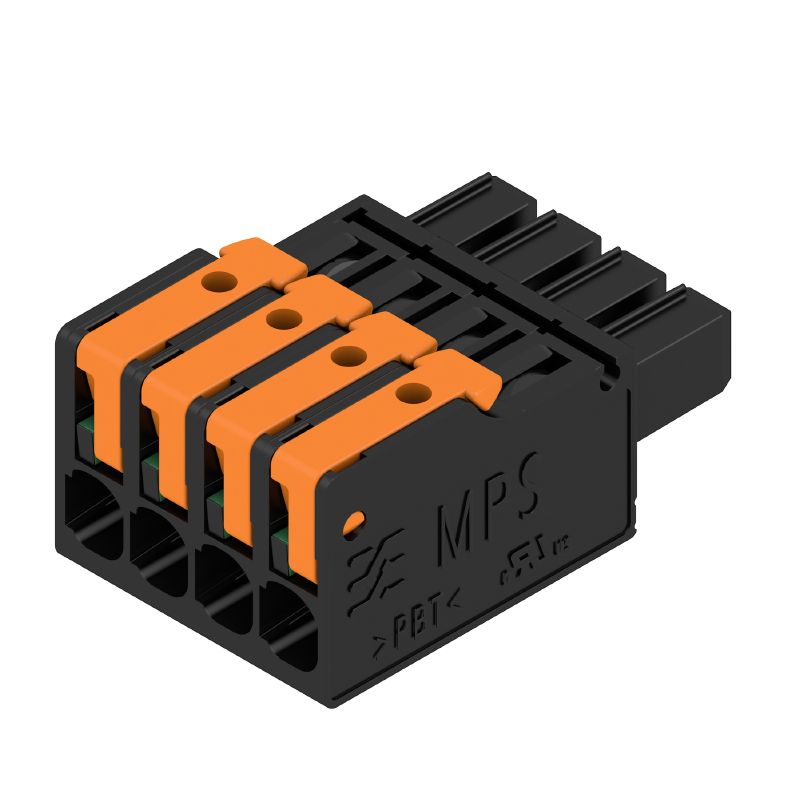

Introducing the MPS 5/04 S TN B B, a robust female PCB plug-in connector with a 500 mm pitch and 4 poles aligned at a 180° angle This connector meets IEC standards, operating efficiently at 400 V and supporting a current of 268 A for wire cross-sectional areas between 05 to 4 mm² Additionally, it complies with UL standards, functioning at 300 V while accommodating currents up to 185 A for AWG 20 to AWG 12 wire sizes.
Delivered in a securely packaged box, this connector is ideal for a variety of applications that demand reliable electrical connections.
Features and Benefits:
•Field connection type.

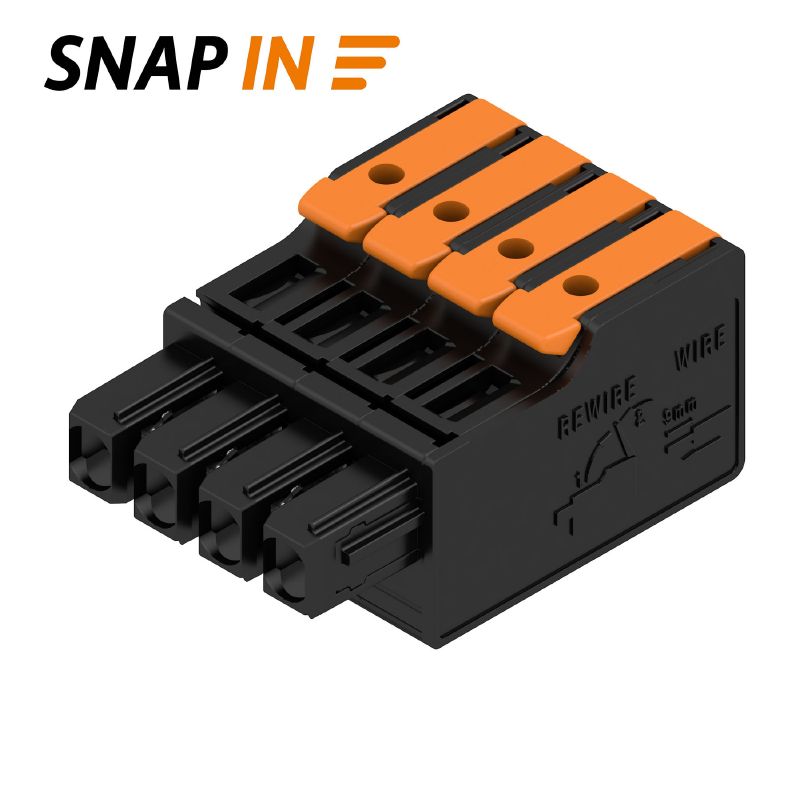

•SNAP IN wire connection method.
•Touch-safe protection according to DIN VDE 57 106.
•IP 20 protection degree.
•Good resistance with a maximum volume resistance of ≤5 mΩ.
•Compatible with various wire configurations including solid and flexible conductors.
Specifications:

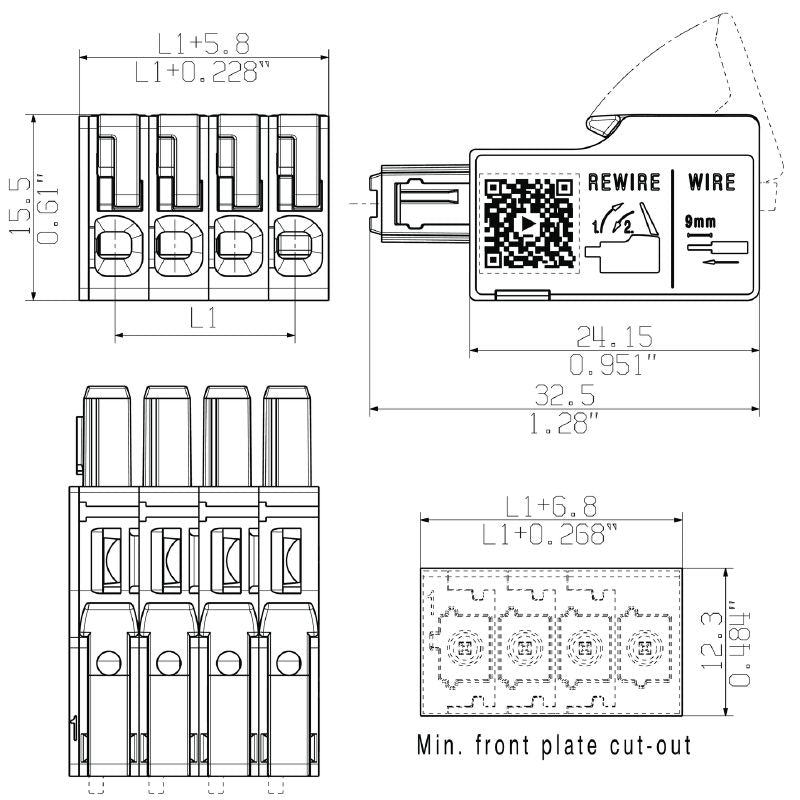

| Dimensions | {'Depth': '34 mm', 'Height': '15.5 mm', 'Width': '20.8 mm'} |
| Pitch | 5 mm |
| Operating Temperature | -50 °C to 125 °C |
| Storage Temperature | -25 °C to 55 °C |
| Rated Voltage | 400 V |
| IEC Current Rating | 26.8 A |
| UL Voltage Rating | 300 V |
| Clamping Range | 0.34 mm² to 4 mm² |
| Insulating Material | PBT GF |
| Flammability Rating | UL 94 V-0 |
| Contact Material | Cu-alloy |
| Packing | Box |
| Number of Poles | 4 |
| Plugging Cycles | 25 |
