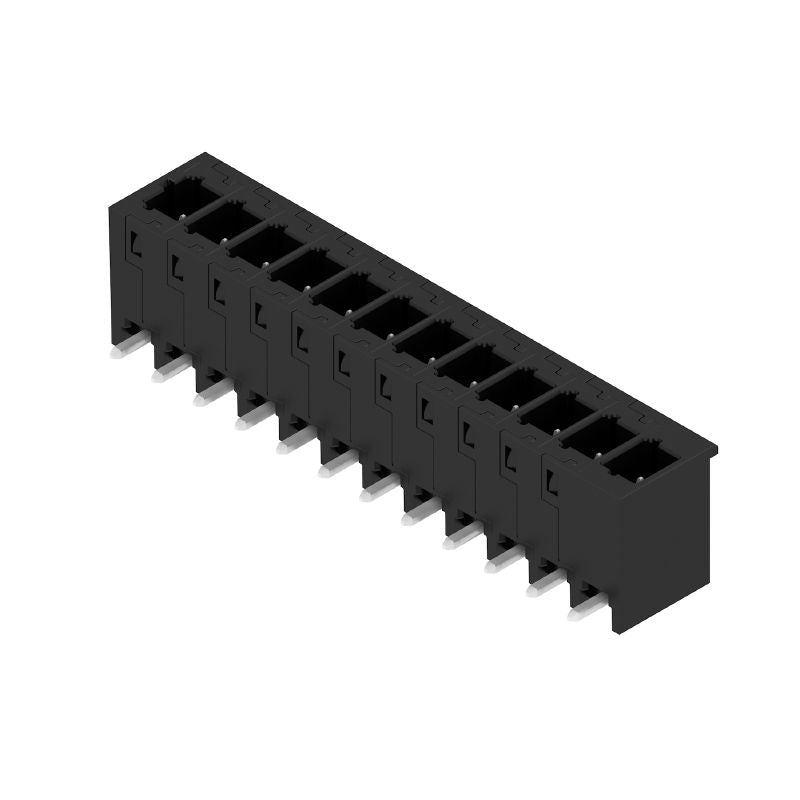

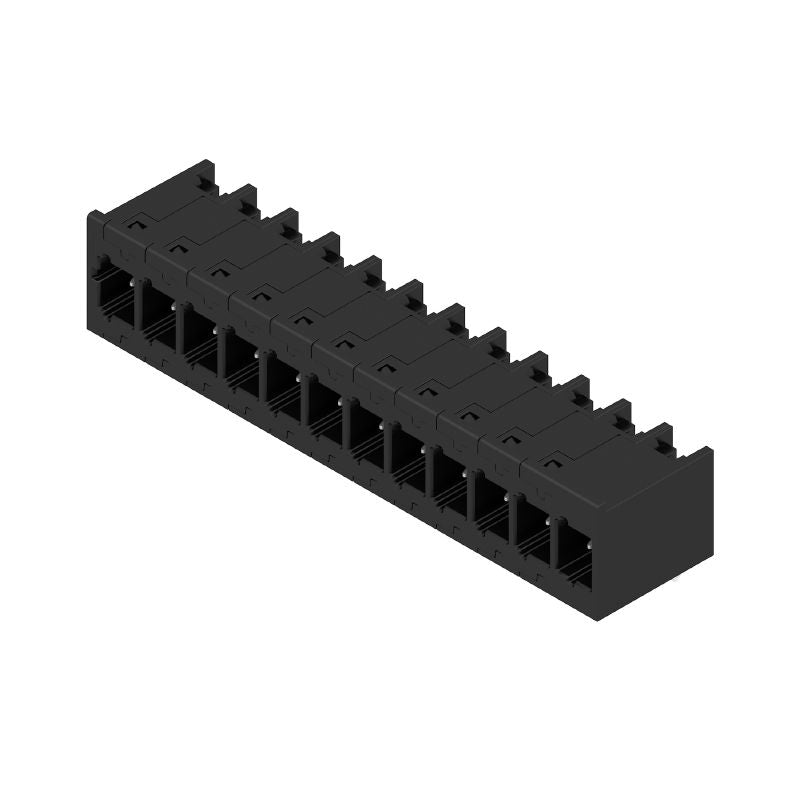

2741510000 - 5mm Pitch 12-Pole RoHS Male Header Connector for PCB (Pack of 8)
2741510000 - 5mm Pitch 12-Pole RoHS Male Header Connector for PCB (Pack of 8)
SKU: SKU: 2741510000 Download PDF
- 2741510000 - 5mm Pitch 12-Pole RoHS Male Header Connector for PCB (Pack of 8)
- 2741510000 - 5mm Pitch 12-Pole RoHS Male Header Connector for PCB (Pack of 8)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the MHS 5/12 H T3 B T connector, an expertly crafted male header ideal for PCB plug-in setups, designed to support THT/THR solder connections With a pitch of 500 mm, this connector allows for 12 poles arranged in a 90° layout Its compact dimensions—14 mm in depth, 151 mm in height, and 6138 mm in width—make it an excellent choice for various circuit configurations Meeting RoHS compliance and built to high reliability standards, this connector is perfect for a wide range of electronic applications.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Touch-safe above the printed circuit board.
•Insulating material group I with a high Comparative Tracking Index (CTI).
•Tested to international standards IEC 60664-1 and IEC 61984.

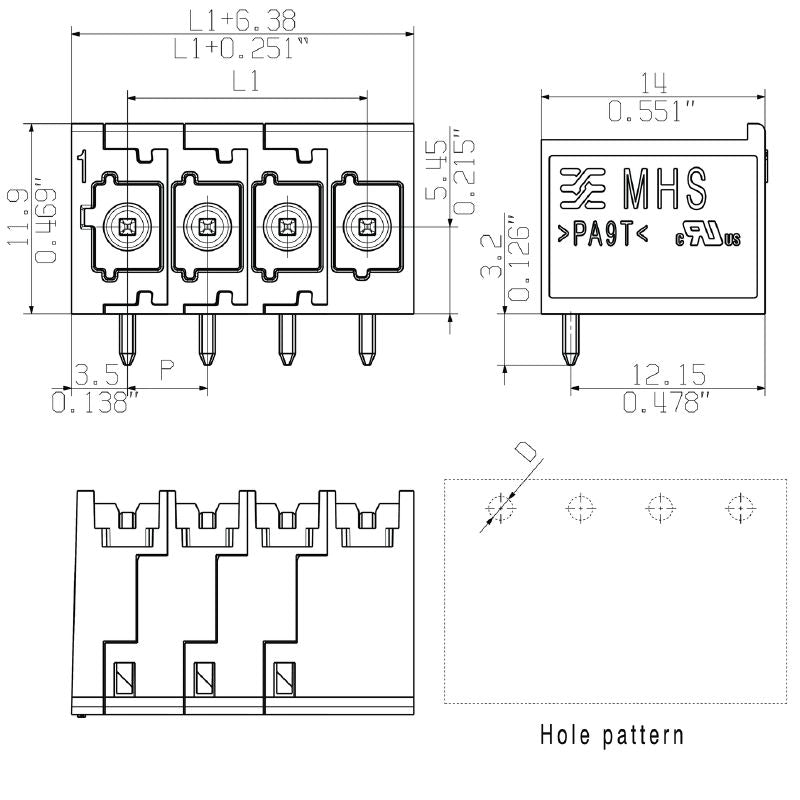

Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 61.38 mm |
| Contact base material | CuMg |
| Contact material | Cu-alloy |
| Rated current (max) | 19.7 A @ 20°C |
| Rated voltage | 300 V (Use group B / UL 1059) |
| Protection degree | IP20 |
| Operating temperature range | -50 °C to 100 °C |
| Storage temperature range | -25 °C to 55 °C |
| Plugging cycles | ≥ 25 |
| Volume resistance | ≤5 mΩ |
