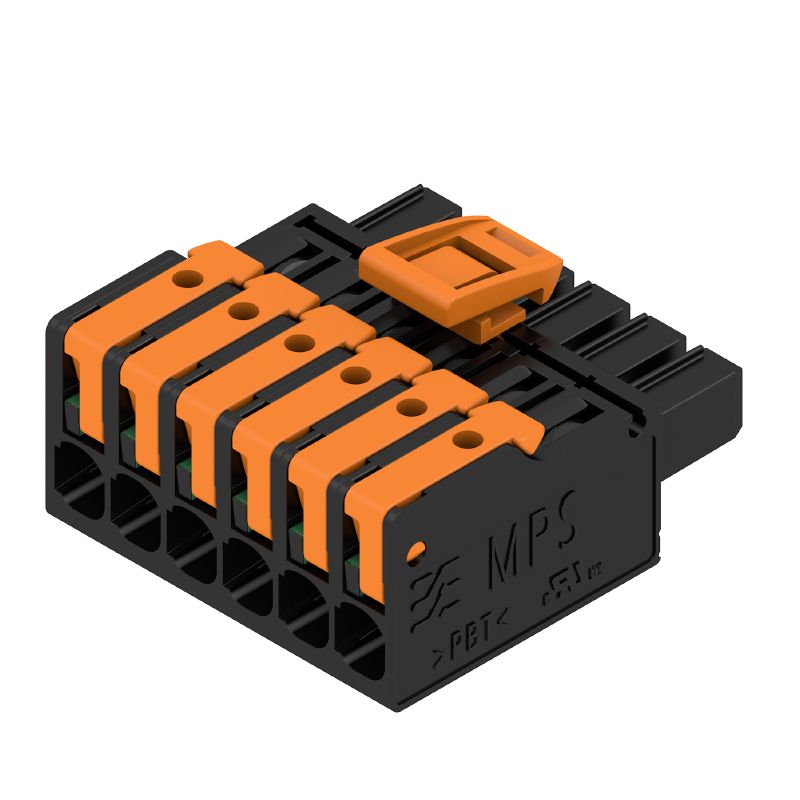

2741710000 - 5mm Female PCB Connector, 6 Poles, UL Certified (Pack of 60)
2741710000 - 5mm Female PCB Connector, 6 Poles, UL Certified (Pack of 60)
SKU: SKU: 2741710000 Download PDF
- 2741710000 - 5mm Female PCB Connector, 6 Poles, UL Certified (Pack of 60)
- 2741710000 - 5mm Female PCB Connector, 6 Poles, UL Certified (Pack of 60)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable connectivity with this female PCB plug-in connector, featuring a 500 mm pitch and capable of accommodating 6 poles at a 180° angle This connector meets RoHS standards and boasts UL certification, ensuring safety and quality With a rated voltage of 400 V and a maximum current capacity of 268 A as per IEC regulations, it’s designed for robust performance Each box contains 60 connectors, with dimensions of 30.
8 mm in width, 175 mm in height, and 34 mm in depth It operates effectively within a temperature range of -50 °C to 125 °C, making it versatile for various applications.
Features and Benefits:
•Tested according to IEC 60664-1 and IEC 61984 standards.
•Touch-safe protection compliant with DIN VDE 57 106.
•IP 20 rated protection degree.
•Volume resistance is ≤5 mΩ.
•Suitable for conductor sizes ranging from 0.34 mm² to 4 mm².

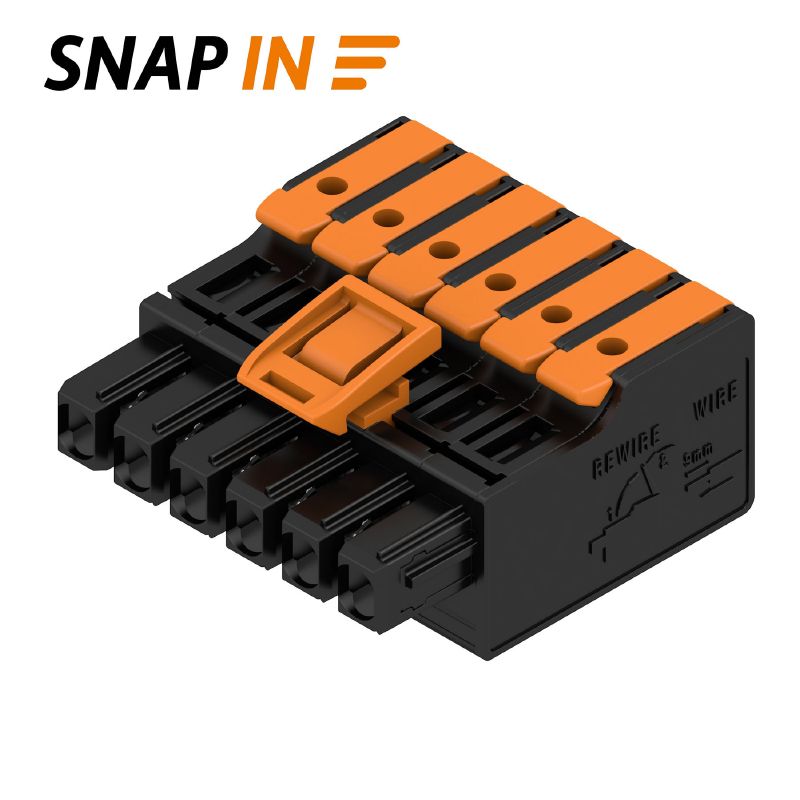

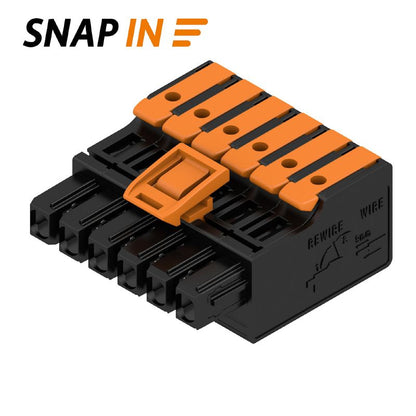

•Used for field connections with SNAP IN wire connection method.
Specifications:
| Pitch (P) | 5 mm |
| Conductor Outlet Direction | 180° |
| Number of Poles | 6 |
| Net Weight | 15.529 g |
| Operating Temperature | -50 °C to 125 °C |
| Storage Temperature | -25 °C to 55 °C |
| Clamping Range (min) | 0.34 mm² |
| Clamping Range (max) | 4 mm² |
| Insulating Material | PBT GF |
| Material Data | Cu-alloy contacts with tinned surface |
