Description:

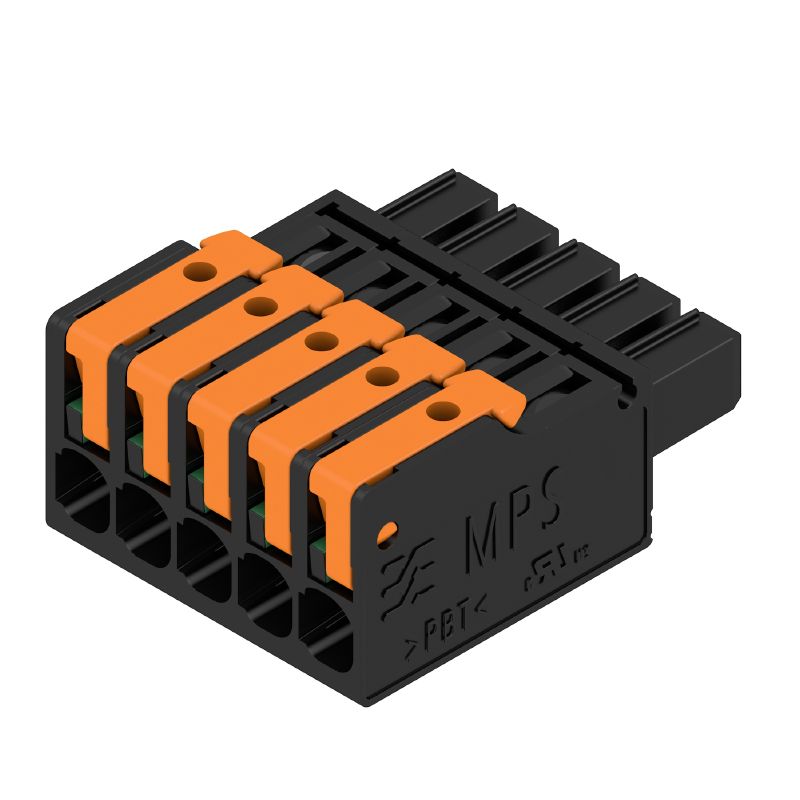

Introducing this versatile PCB plug-in female connector, featuring a 500 mm pitch and five poles Suitable for applications handling up to 400 V and 268 A, it accommodates wire connections ranging from 05 to 4 mm² according to IEC standards Packaged in a convenient box, this connector weighs 12805 grams It operates efficiently across a wide ambient temperature range, from -50°C to 125°C Committed to safety and environmental standards, this connector adheres to RoHS regulations without exemptions and contains no substances of very high concern (SVHC) exceeding 0.

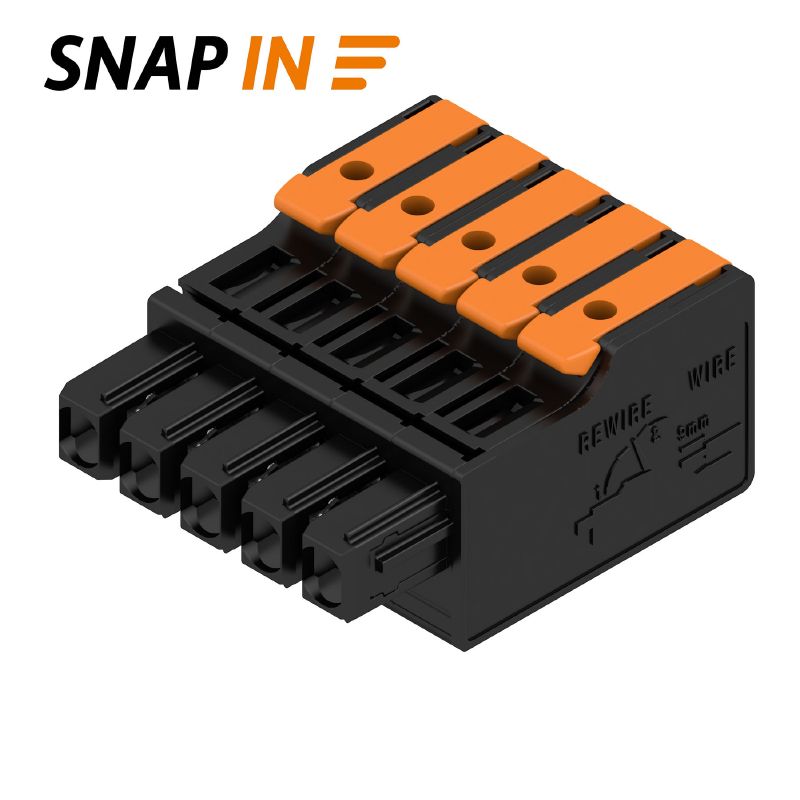

1 wt% Its user-friendly design includes a snap-in mechanism with a lever, ideal for quick field connections.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Touch-safe protection according to DIN VDE standards.
•Includes a range of compatible wire sizes from 0.34 mm² to 4 mm².
•Suitable for up to 25 plugging cycles.
•Constructed from reliable materials like PBT GF with a V-0 flammability rating.
Specifications:

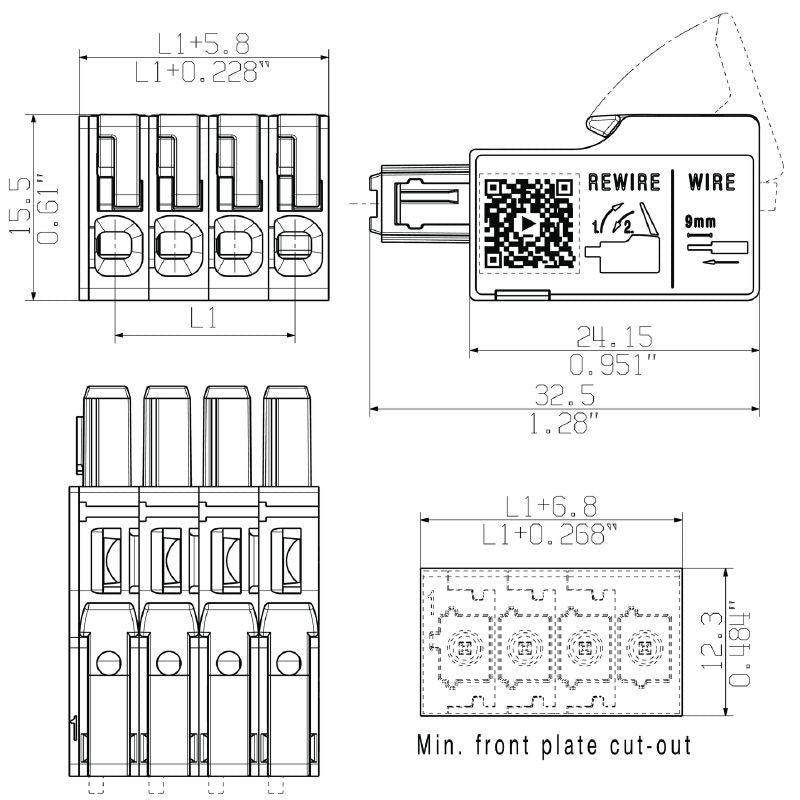

| Depth | 34 mm |
| Height | 15.5 mm |
| Width | 25.8 mm |
| Operating temperature (max) | 100 °C |
| Operating temperature (min) | -50 °C |
| Storage temperature (max) | 55 °C |
| Storage temperature (min) | -25 °C |
| Volume resistance | ≤5 mΩ |
| Protection degree | IP20 |
| Clamping range (min) | 0.34 mm² |
| Clamping range (max) | 4 mm² |
| Number of poles | 5 |
| Pitch | 5 mm |
| Conductor outlet direction | 180° |
| Insulating material | PBT GF |
| Material data | {'Contact material': 'Cu-alloy', 'Insulating material group': 'I', 'Comparative Tracking Index (CTI)': '≥ 600'} |
