2741630000 - 9-Pole 5mm PCB Connector, 400V, 26.8A, RoHS Compliant (Pack of 36)

Description:

Discover the reliable MPS 5/09 S TN B B PCB plug-in connector, designed with a female plug configuration that boasts a 500 mm pitch and 9 poles This connector facilitates a 180° conductor outlet direction, ensuring versatile installation options It is rated for a maximum voltage of 400 V and can handle up to 268 A, accommodating wire sizes between 05 and 4 mm² According to UL standards, it holds a rating of up to 300 V and 18.

5 A with suitable wire gauges from AWG 20 to AWG 12 Additionally, this connector fully complies with RoHS regulations, guaranteeing no exemptions, while providing excellent insulating properties Packaged securely in a box, it is ready for safe delivery to your location.

Features and Benefits:

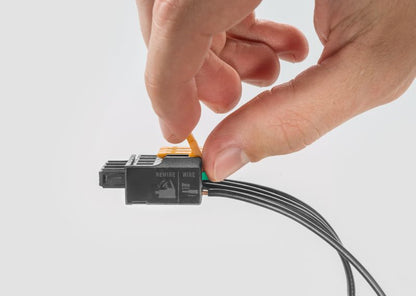

•Field connection type with SNAP IN and lever wire connection method.

•Touch-safe protection according to DIN VDE 57 106 and VDE 0470.

•PBT GF insulating material with a black color.

•IP 20 protection against dust and moisture.

•Low volume resistance of ≤5 mΩ.

•Designed for multiple conductor sizes with specific stripping lengths.

•Plugging cycles rated at 25 cycles.

•Storage temperatures ranging from -25 °C to 55 °C.

Specifications:
