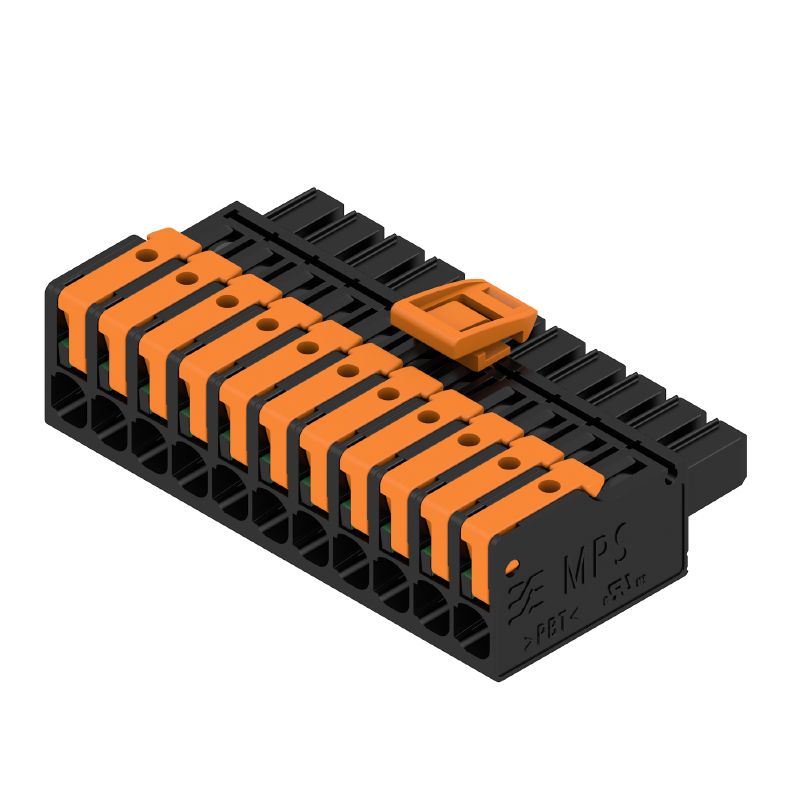

2741760000 - 11-Pole Female PCB Connector, 5mm Pitch, RoHS Compliant (Pack of 30)
2741760000 - 11-Pole Female PCB Connector, 5mm Pitch, RoHS Compliant (Pack of 30)
SKU: SKU: 2741760000 Download PDF
- 2741760000 - 11-Pole Female PCB Connector, 5mm Pitch, RoHS Compliant (Pack of 30)
- 2741760000 - 11-Pole Female PCB Connector, 5mm Pitch, RoHS Compliant (Pack of 30)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the reliability of this PCB plug-in connector featuring a female plug configuration with a pitch of 500 mm Designed to accommodate 11 poles, it enables a 180° connection orientation It boasts impressive operating specs, including an IEC rating of 400 V at 268 A and a UL rating of 300 V at 185 A, supporting wire sizes ranging from 05 to 4 mm² Packaged securely in a box, this connector adheres to RoHS compliance and meets stringent environmental and safety standards, ensuring quality and performance for your projects.
Features and Benefits:
•Compliant with RoHS without exemptions.
•IP 20 protection degree.

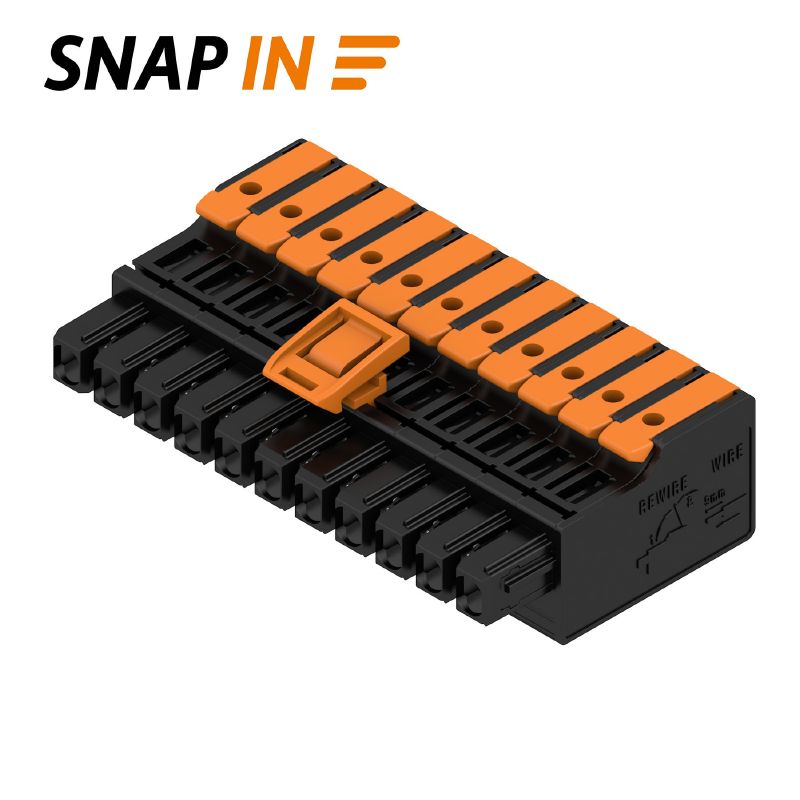

•SNAP IN connection method with lever.
•Safe from finger touch as per DIN VDE standards.
•Endures multiple plugging cycles up to 25.

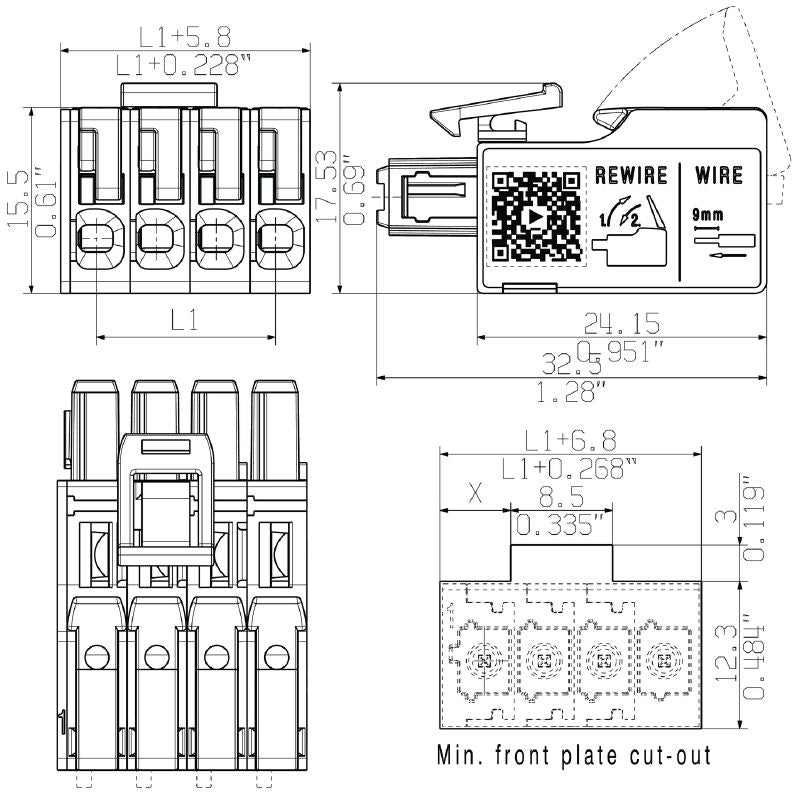

Specifications:
| Depth (mm) | 34 |
| Height (mm) | 17.5 |
| Width (mm) | 55.8 |
| Ambient temperature range | -50 °C to 125 °C |
| Insulating material | PBT GF |
| Volume resistance | ≤5 mΩ |
| Stripping length | 9 mm |
| Plugging force/pole, max | 8.5 N |
| Pulling force/pole, max | 8.5 N |
| Pitch in mm (P) | 5 mm |
| Number of poles | 11 |
| Rated current, min | 26.8 A |
| Rated voltage, max | 400 V |
| Storage temperature, min | -25 °C |
| Storage temperature, max | 55 °C |
