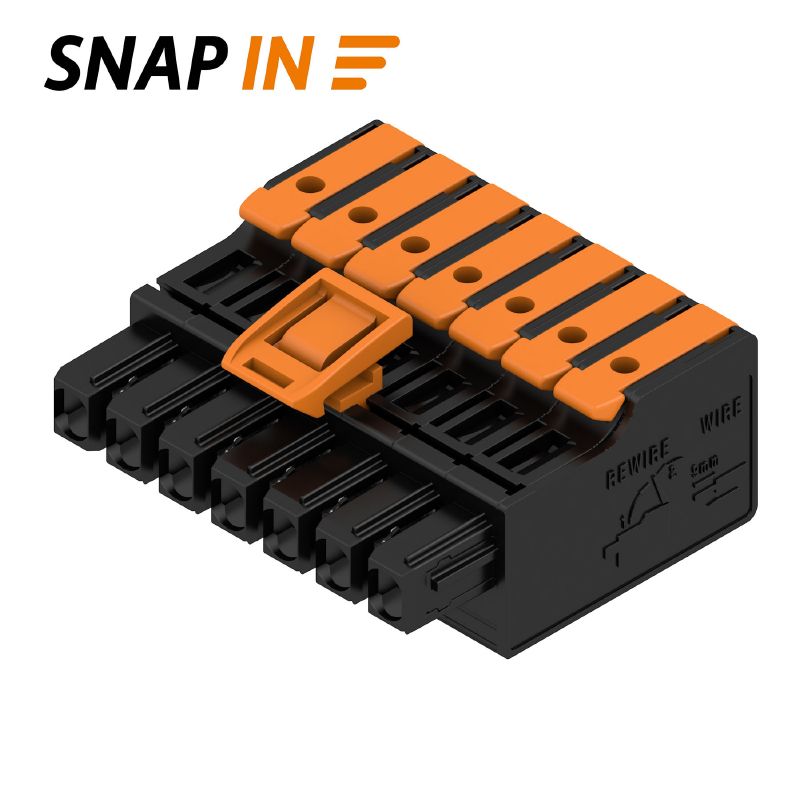

2741720000 - 5mm Female PCB Connector, 7 Poles, 400V, 26.8A (Pack of 48)
2741720000 - 5mm Female PCB Connector, 7 Poles, 400V, 26.8A (Pack of 48)
SKU: SKU: 2741720000 Download PDF
- 2741720000 - 5mm Female PCB Connector, 7 Poles, 400V, 26.8A (Pack of 48)
- 2741720000 - 5mm Female PCB Connector, 7 Poles, 400V, 26.8A (Pack of 48)
Couldn't load pickup availability
Description:
Discover this reliable female plug PCB connector with a 500 mm pitch and a configuration of 7 poles oriented at 180° It efficiently manages IEC ratings up to 400 V and 268 A, accommodating wire gauges from 05 to 4 mm² Additionally, according to UL standards, it is suitable for wires ranging from AWG 20 to AWG 12, supporting voltages of up to 300 V and currents of 185 A Each box contains 48 connectors, making it a great choice for bulk needs.
Features and Benefits:
•Touch-safe protection according to DIN VDE 57 106.
•Safe from finger touch.
•IP 20 rated.
•Volume resistance of ≤5 mΩ.
•SNAP IN connection with lever.
•Compatible with various wire end ferrules.
Specifications:
| Ambient temperature | -50 °C…125 °C |
| Depth | 34 mm |
| Height | 17.5 mm |
| Width | 35.8 mm |
| Operating temperature, min | -50 °C |
| Operating temperature, max | 125 °C |
| Storage temperature, min | -25 °C |
| Storage temperature, max | 55 °C |
| Clamping range, min | 0.34 mm² |
| Clamping range, max | 4 mm² |
| Pitch | 5 mm |
| Number of rows | 1 |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated current, min. number of poles (Tu=20°C) | 26.8 A |
| Insulating material | PBT GF |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
