8000072515 - 5mm Male PCB Connector for 12 Poles, RoHS Compliant (Pack of 8)
8000072515 - 5mm Male PCB Connector for 12 Poles, RoHS Compliant (Pack of 8)
SKU: SKU: 8000072515 Download PDF
- 8000072515 - 5mm Male PCB Connector for 12 Poles, RoHS Compliant (Pack of 8)
- 8000072515 - 5mm Male PCB Connector for 12 Poles, RoHS Compliant (Pack of 8)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

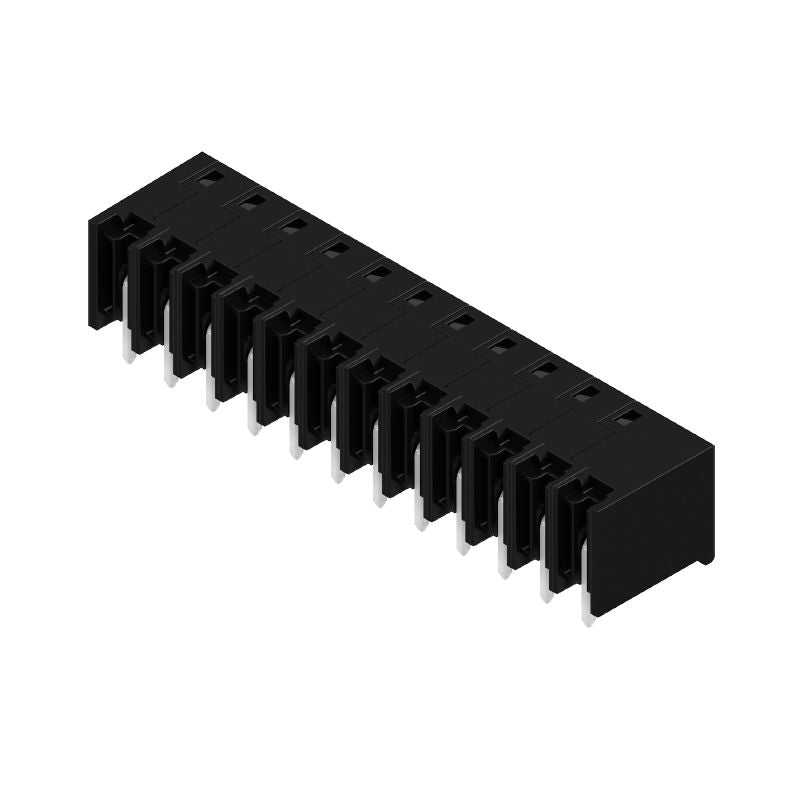

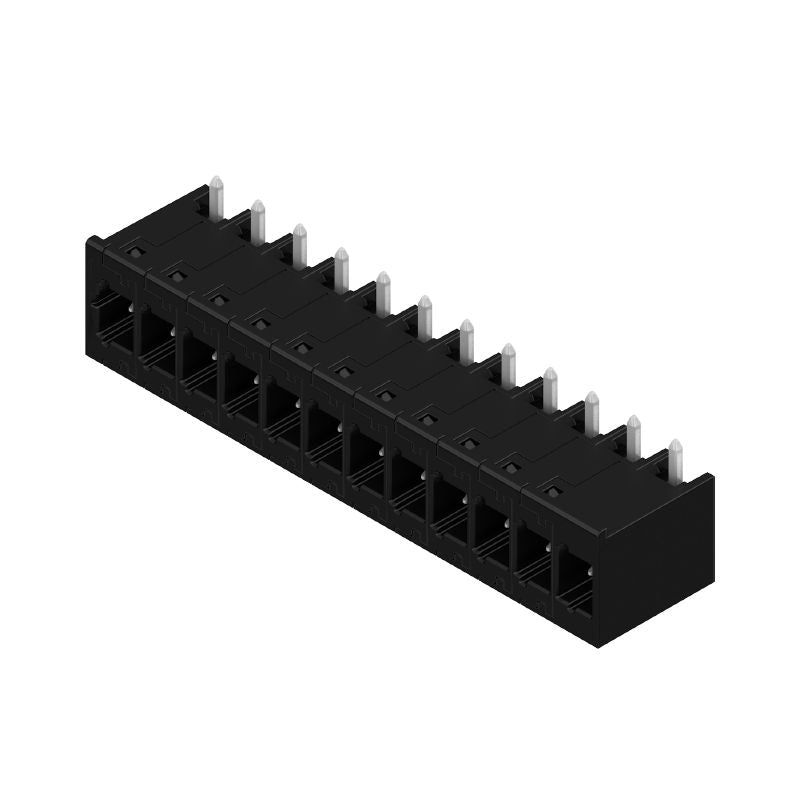

Introducing the MHS 5/12 W T3 B T male header plug-in PCB connector, expertly crafted for THT/THR solder connections With a 5 mm pitch, this connector supports 12 poles at a convenient 270° angle It meets RoHS compliance and has undergone rigorous testing in accordance with IEC standards, suitable for various approved voltage ratings such as 400 V and 300 V Packaged in a tube for easy handling, this connector operates efficiently within a temperature range of -50 °C to 125 °C, making it versatile for different applications.
Features and Benefits:
•Designed for THT/THR solder connection.
•Compliant with RoHS requirements.
•Tested according to IEC standards.
•Touch-safe above the PCB.
•Insulating material made of PA 9T.
•Low volume resistance of ≤5 mΩ.
•Solder pin length of 3.2 mm.
Specifications:
| Number of poles | 12 |
| Rated voltage | 400 V |
| Rated current | 26.8 A |
| Pitch | 5 mm |

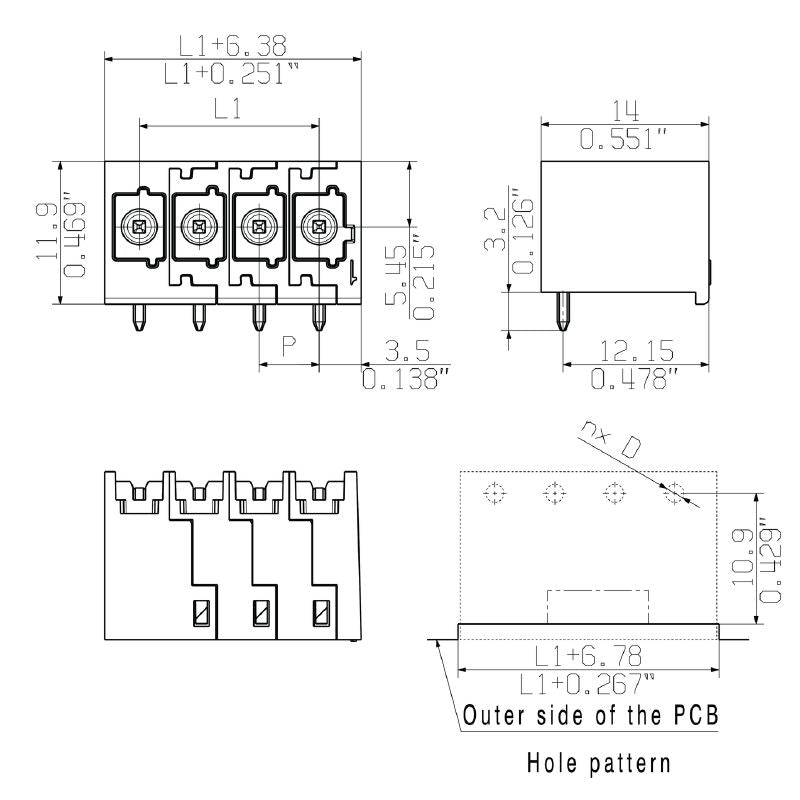

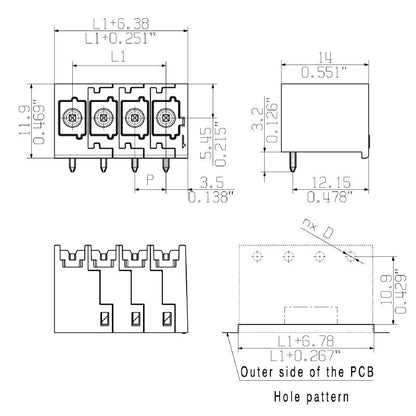

| Dimensions | {'Depth': '14 mm', 'Height': '14.1 mm', 'Width': '61.38 mm'} |
| Protection degree | IP20 |
| Solder eyelet hole diameter | 1.4 mm |
| Operating temperature | -50 °C to 100 °C |
| Storage temperature | -25 °C to 55 °C |
| Plugging cycles | ≥ 25 |
