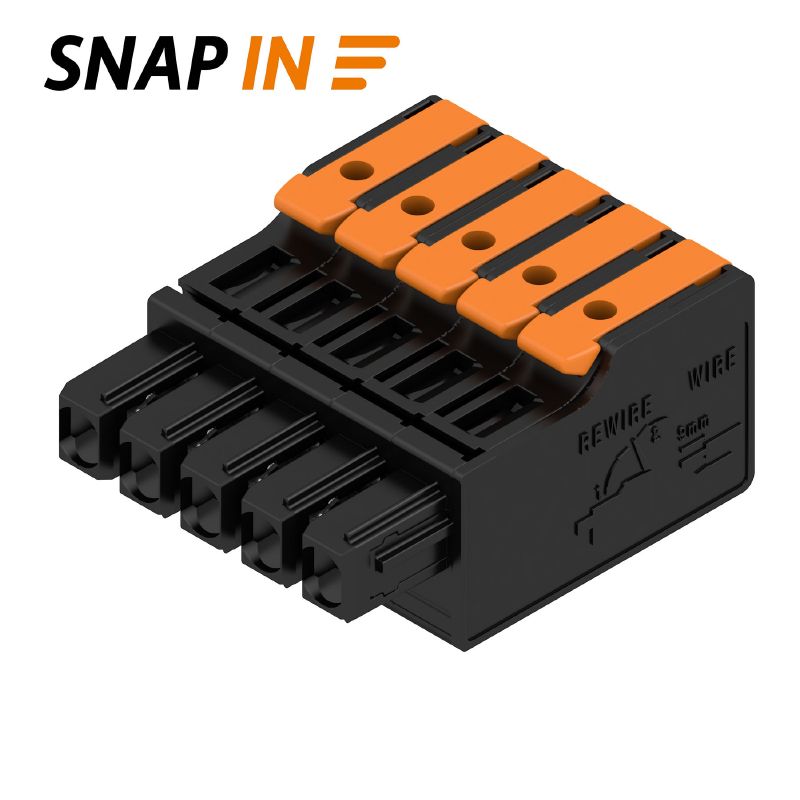

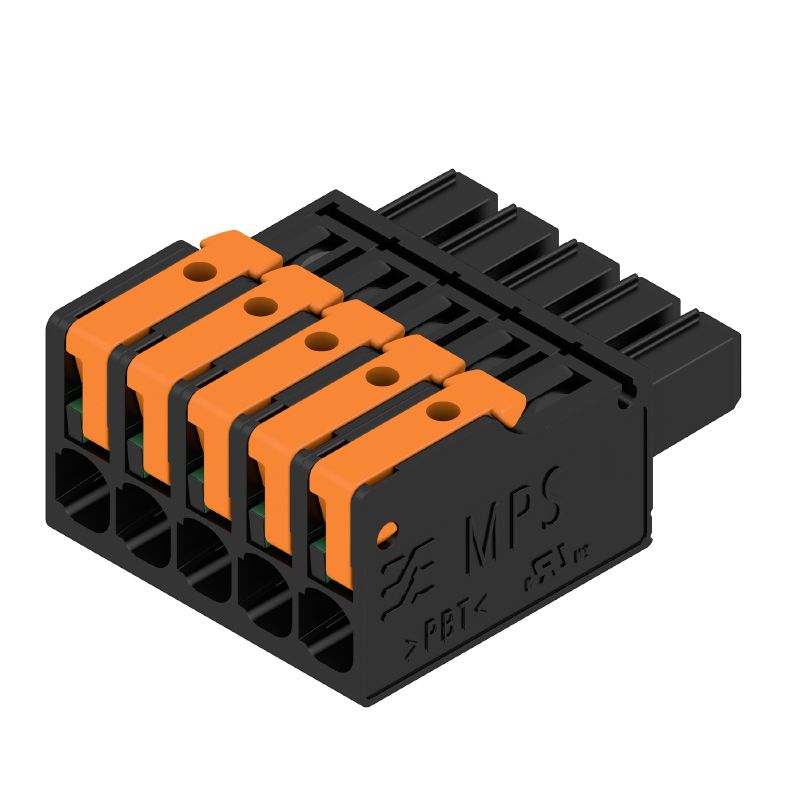

2741590000 - Horizontal 5-Pole 5.00mm PCB Female Connector (Pack of 72)
2741590000 - Horizontal 5-Pole 5.00mm PCB Female Connector (Pack of 72)
SKU: SKU: 2741590000 Download PDF
- 2741590000 - Horizontal 5-Pole 5.00mm PCB Female Connector (Pack of 72)
- 2741590000 - Horizontal 5-Pole 5.00mm PCB Female Connector (Pack of 72)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing this versatile PCB plug-in female connector, designed with a pitch of 500 mm and capable of accommodating 5 poles Featuring a horizontal orientation, this connector is ideal for a wide range of applications It operates efficiently within a temperature range of -50 °C to 125 °C and meets essential safety standards, ensuring reliable performance in various environments.
Features and Benefits:
•Integrated SNAP IN connection with lever.
•Safe from finger touch.
•IP20 protection degree.
•Suitable for a range of conductor cross-sections.
•Reliable performance with a volume resistance of ≤5 mΩ.
Specifications:
| Type | MPS 5/05 S TN B B |
| Pitch in mm (P) | 5.00 mm |
| Number of poles | 5 |
| Rated voltage (IEC) | 400 V |
| Rated current (IEC) | 26.8 A |
| Wire connection method | SNAP IN with lever |
| Insulating material | PBT GF |
| Touch-safe protection | Safe from finger touch |
| Protection degree | IP20 |
| Plugging cycles | 25 |
| Clamping range, min | 0.34 mm² |
| Clamping range, max | 4 mm² |
| Weight | 12.856 g |
| Ambient temperature | -50 °C to 125 °C |
