Description:

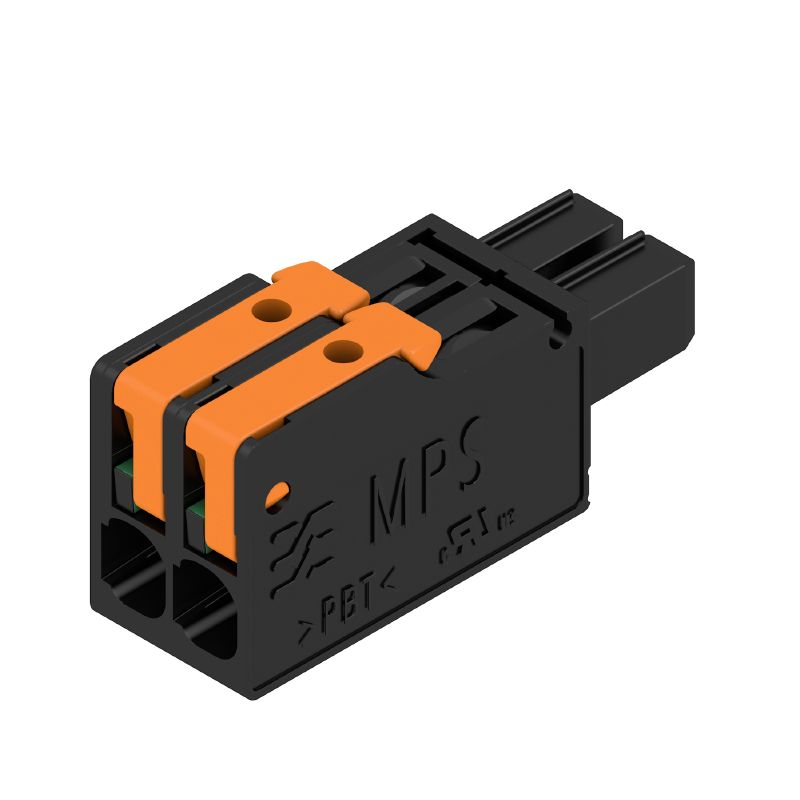

Discover the reliability of this PCB plug-in connector, designed with a female plug configuration and a pitch of 500 mm that provides two poles This component can handle a maximum voltage of 400 V and a current of 268 A according to IEC standards, and up to 300 V at 185 A under UL specifications It accommodates wire sizes ranging from 05 to 4 mm² (AWG 20 to AWG 12) Packaged securely in a box, the connector measures 34 mm deep, 15.
5 mm high, and 108 mm wide, weighing in at just 549 g With its operational temperature range of -50 °C to 125 °C, this connector is built to perform in a variety of environments.
Features and Benefits:
•RoHS compliant without exemptions.
•Touch-safe protection per DIN VDE 57 106.
•Touch-safe protection per DIN VDE 0470 IP 20.
•Safe from finger touch design.
•Suitable for a variety of wire types and sizes.
•Insulating material is PBT GF.
Specifications:
| Connection Type | Field connection |
| Wire Connection Method | SNAP IN with lever |
| Pitch in mm | 5 mm |
| Conductor Outlet Direction | 180° |
| Number of Poles | 2 |
| Volume Resistance | ≤5 mΩ |
| Stripping Length | 9 mm |
| Protection Degree | IP20 |
| Operating Temperature Min | -50 °C |
| Operating Temperature Max | 100 °C |
| Storage Temperature Min | -25 °C |
| Storage Temperature Max | 55 °C |
| Rated Current Min (Tu=20°C) | 26.8 A |
| Rated Voltage Max | 400 V |
| Outer Diameter of Insulation Max | 4 mm |
| Insulating Material Group | I |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL Flammability Rating | V-0 |
